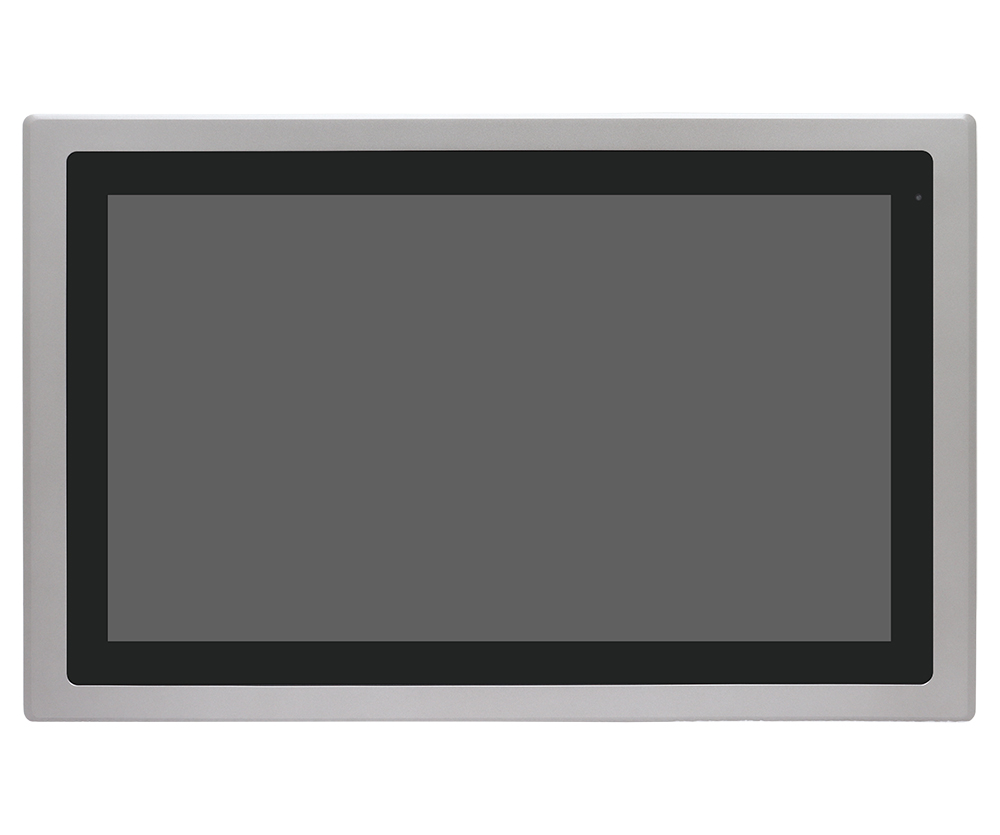

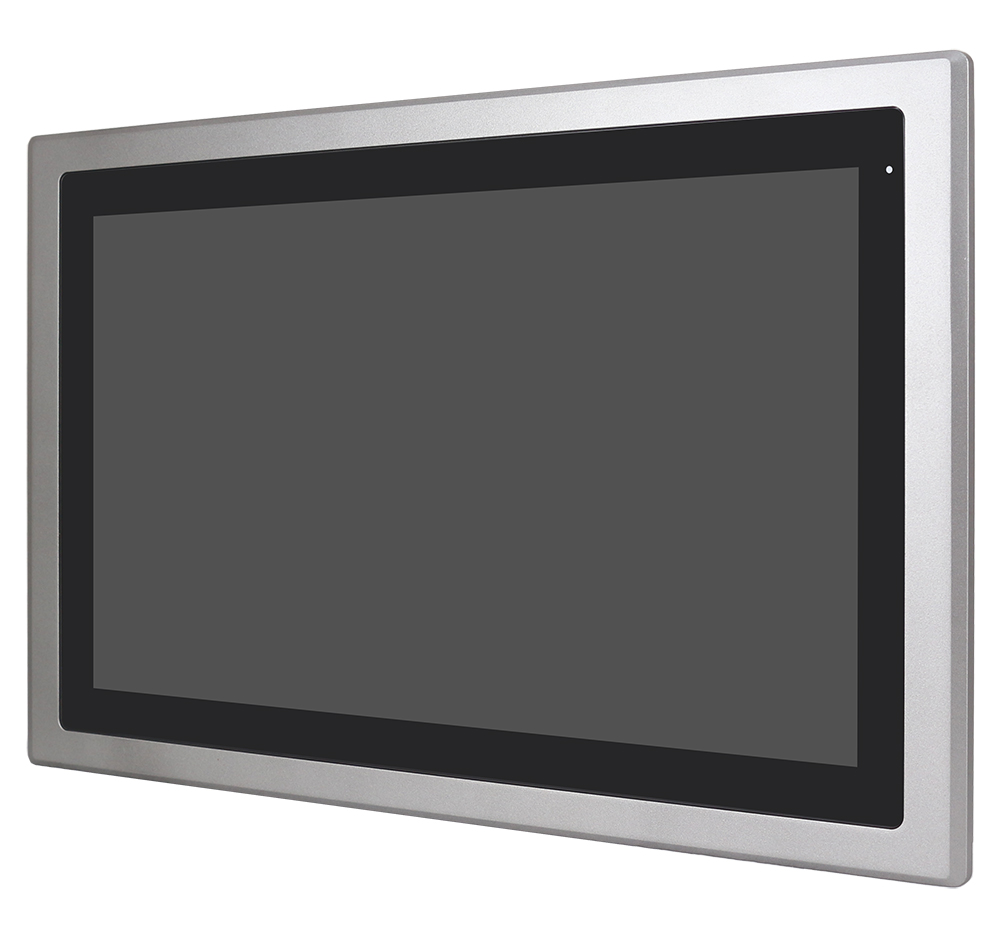

ARCHMI-S-818C Series

The ARCHMI-S-818C is an 18.5" (1920 x 1080 resolution) industrial touch screen Panel PC engineered for reliable performance in demanding industrial environments. Powered by the Intel® N97 Quad-Core processor, this fanless system delivers responsive and energy-efficient computing for industrial control, automation, and HMI applications. It supports both Windows 10/11 and Linux operating systems, ensuring broad compatibility with modern and future software platforms.

Built for durability, the ARCHMI-S-818C features an IP66-rated aluminium front bezel that protects against dust, dirt, and water ingress, while its rugged aluminium die-cast chassis and fanless design provide dependable 24/7 operation, reduce maintenance requirements, and extend system lifespan. The large 18.5" TFT-LCD (1920 x 1080 resolution) display offers generous workspace for detailed process control, data visualisation, and interactive interfaces—ideal for applications where clarity, visibility, and precision are critical.

Touch screen options include a resistive panel—ideal for gloved operation or environments with dust, liquids, or debris—or a projected capacitive multi-touch screen for enhanced durability, scratch resistance, and intuitive multi-touch functionality. Optional features include auto-dimming for optimal visibility in changing light conditions and a high-brightness 1000nits LCD for readability in outdoor or high-glare environments.

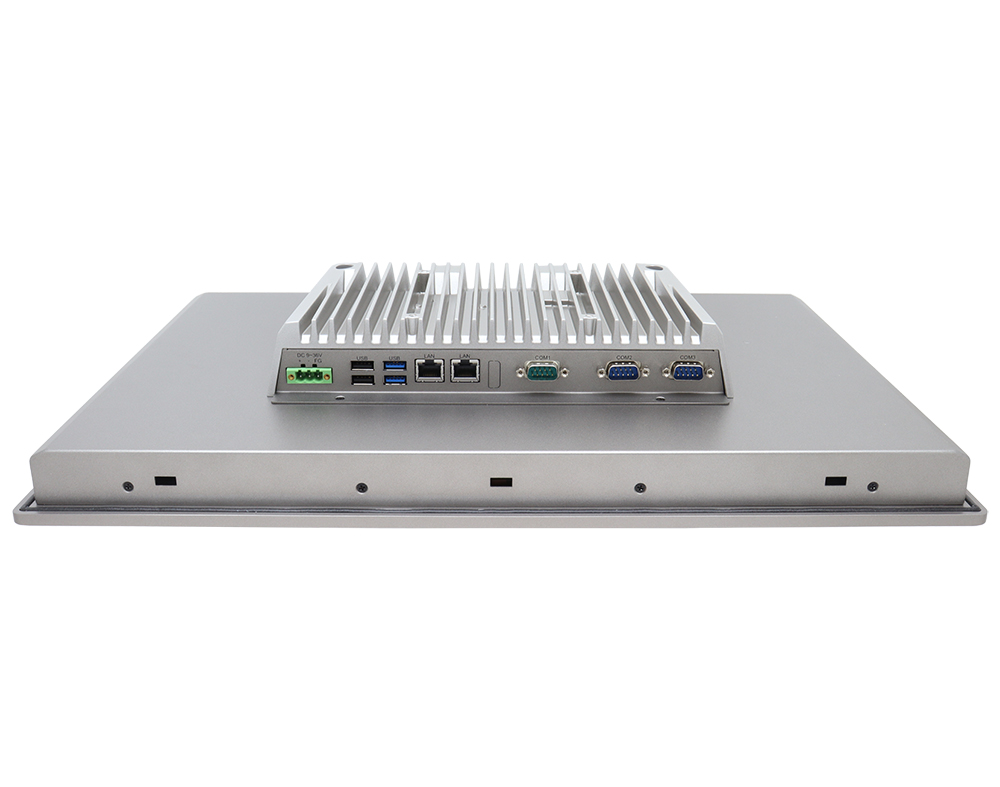

I/O connectivity includes: 2 x USB 3.2 Type-A ports, 2 x USB 2.0 Type-A ports, 2 x RS-232/422/485 serial ports, 1 x RS-232 serial port, 2 x 2.5GbE LAN ports, and 1 x HDMI port for external display output. Storage is supported via 1 x M.2 M-Key slot (PCIe 3.0 x1 or SATA), with expansion options including, 1 x M.2 E-Key slot for Wi-Fi/Bluetooth and 1 x M.2 B-Key slot with Nano-SIM support for 4G/5G connectivity. Onboard TPM 2.0 security and a watchdog timer provide additional protection and operational stability in mission-critical environments.

With a wide operating temperature range of 0~50˚C (or optional -20~60˚C with industrial wide-temp SSD/RAM) and DC 9~36V wide power input, the ARCHMI-S-818C ensures reliable operation even in environments with unstable power or extreme temperatures. Panel mount and VESA 75 x 75 installation options allow flexible integration into machinery, kiosks, vehicles, and control systems.

Combining robust construction, flexible display options, and comprehensive connectivity, the ARCHMI-S-818C is well-suited for industrial applications such as manufacturing, process automation, transportation, kiosks, mining, and energy sector operations.

Take a look at the datasheet or request a quote to learn more.

Key Features:

• 18.5" TFT-LCD Industrial Panel PC
• Intel N97 Quad Core Processor
• Wide Operating Temperature Range: 0~50˚C (or -20~60˚C optional)
• IP66 Compliant Aluminium Front Bezel
• Supports 1 x DDR5 4800MHz SO-DIMM, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 1920 x 1080 Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 2 x DB9 Type RS-232/422/485 + 1 x DB9 RS-232
• 1 x HDMI Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via M.2 B-Key and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
