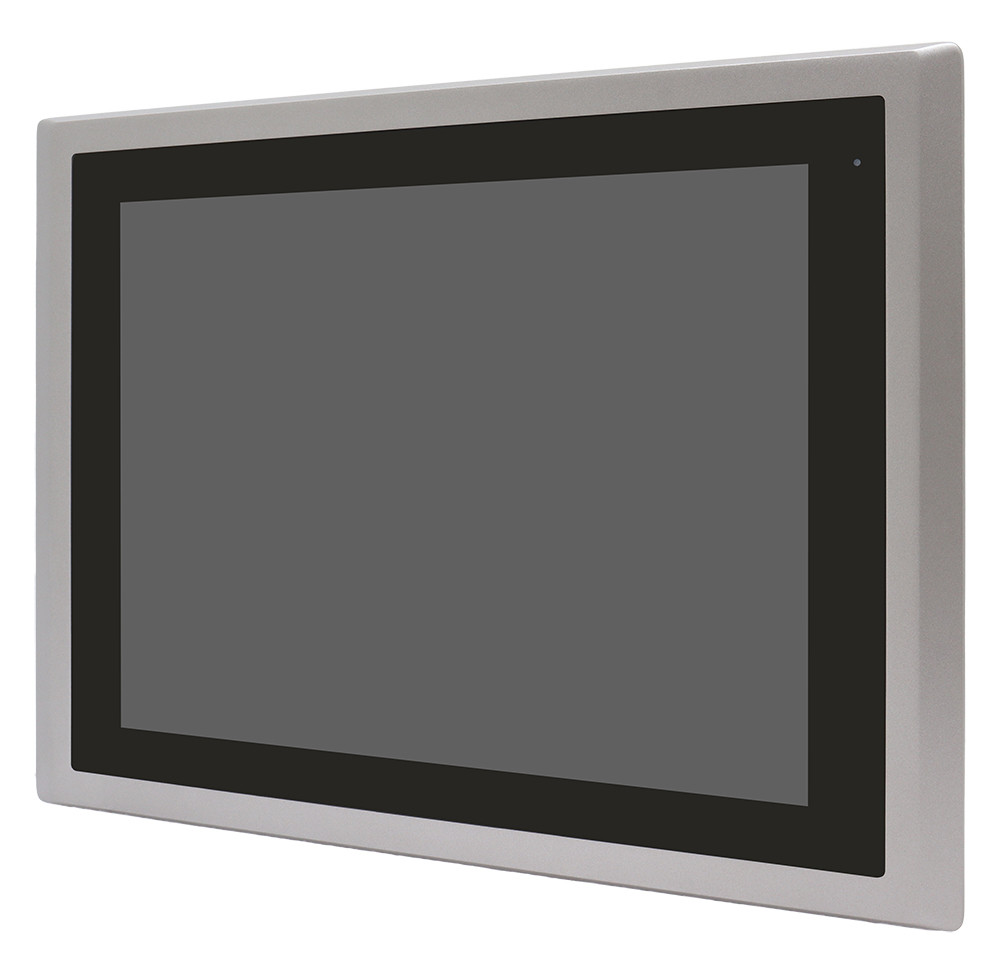

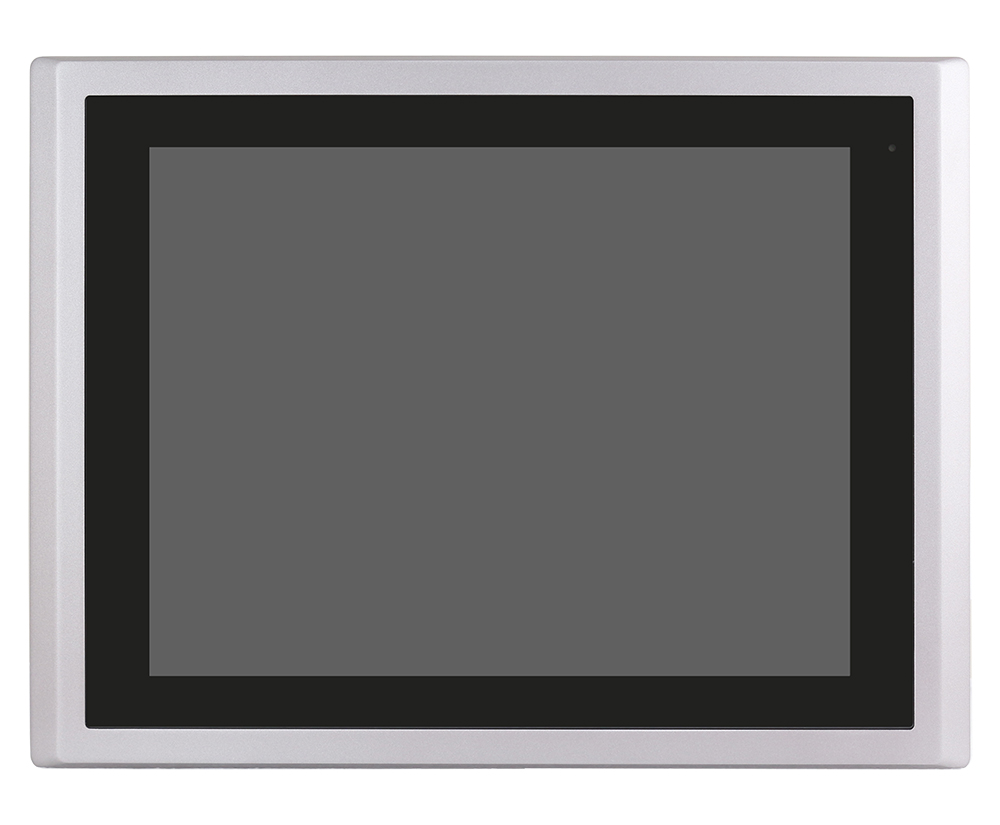

ARCHMI-S-815C Series

The ARCHMI-S-815C is a 15" (1024 x 768 resolution) industrial touch screen Panel PC designed for reliable performance in demanding environments. Powered by the Intel® N97 Quad-Core processor, this fanless system delivers efficient and responsive computing for industrial control, automation, and HMI applications. It supports both Windows 10/11 and Linux operating systems, ensuring compatibility with a wide range of current and future software platforms.

Built with durability in mind, the ARCHMI-S-815C features an IP66-rated aluminium front bezel that protects against dust, dirt, and water ingress, while its rugged aluminium die-cast chassis and fanless design enable dependable 24/7 operation, reduce maintenance requirements, and extend system longevity. The 15" TFT-LCD  (1024 x 768 resolution) display provides ample screen space for complex control interfaces and detailed graphical outputs, making it well-suited for environments where clarity and visibility are essential.

Touch screen options include a resistive touch screen—ideal for operation with gloves or in dusty, wet, or debris-prone environments—or a projected capacitive multi-touch screen, offering enhanced durability, scratch resistance, and intuitive multi-touch capability. Optional display enhancements include auto-dimming for dynamic lighting conditions and a high-brightness 1000nits LCD for clear readability in outdoor or high-glare locations.

I/O connectivity includes: 2 x USB 3.2 Type-A ports, 2 x USB 2.0 Type-A ports, 2 x RS-232/422/485 serial ports, 1 x RS-232 serial port, 2 x 2.5GbE LAN ports, and 1 x HDMI port for connecting an additional display. Storage is provided via 1 x M.2 M-Key slot (PCIe 3.0 x1 or SATA), while expansion options include 1 x M.2 E-Key slot for Wi-Fi/Bluetooth and 1 x M.2 B-Key slot with Nano-SIM support for 4G/5G mobile connectivity. Onboard TPM 2.0 security and a watchdog timer add extra layers of protection and operational stability for mission-critical applications.

With a wide operating temperature range of 0~50˚C (or optional -20~60˚C with industrial wide-temp SSD/RAM) and DC 9~36V wide power input, the ARCHMI-S-815C is engineered for reliability in environments with unstable power or extreme temperature fluctuations. Installation options include panel mounting and VESA 75 x 75, enabling seamless integration into machinery, kiosks, vehicles, and industrial control systems.

Combining rugged construction, versatile display configurations, and extensive connectivity, the ARCHMI-S-815C is ideal for industrial applications including manufacturing, process automation, transportation systems, kiosks, mining, and energy sector operations.

Take a look at the datasheet or request a quote to learn more.

Key Features:

• 15" TFT-LCD Industrial Panel PC
• Intel N97 Quad Core Processor
• Wide Operating Temperature Range: 0~50˚C (or -20~60˚C optional)
• IP66 Compliant Aluminium Front Bezel
• Supports 1 x DDR5 4800MHz SO-DIMM, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 1024 x 768 Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 2 x DB9 Type RS-232/422/485 + 1 x DB9 RS-232
• 1 x HDMI Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via M.2 B-Key and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
