ARCHMI-S-812WC Series

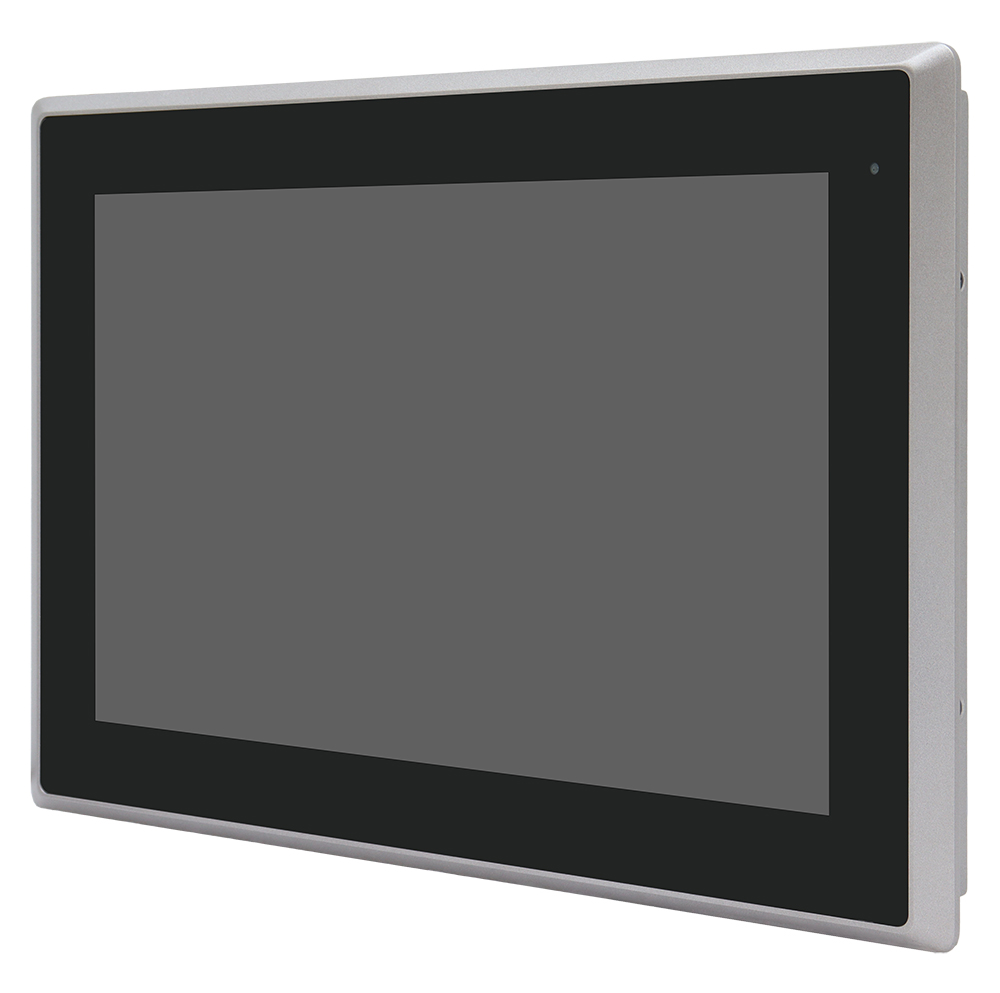

The ARCHMI-S-812WC is a 12.1" widescreen (1280 x 800 or 1280 x 600 (high-brightness option)) industrial touch screen Panel PC engineered for reliable performance in demanding environments. Powered by the Intel® N97 Quad-Core processor, this fanless system delivers efficient computing for industrial control, automation, and HMI applications. It supports both Windows 10/11 and Linux operating systems, ensuring broad compatibility with current and future software requirements.

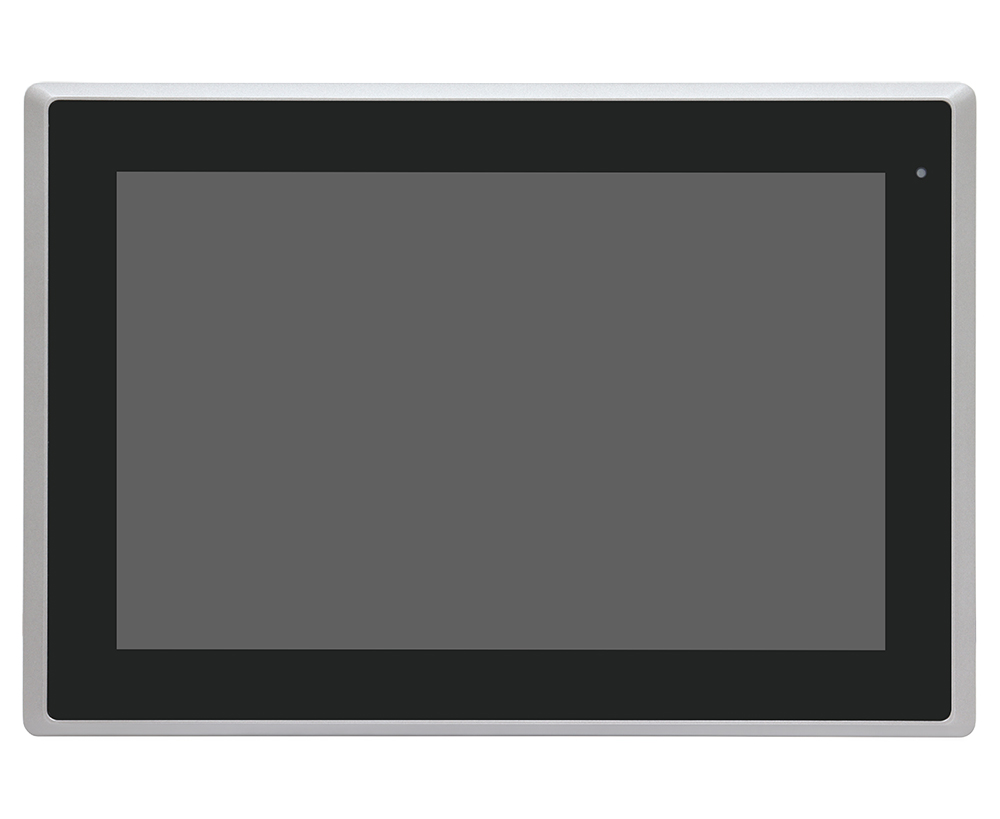

The ARCHMI-S-812WC features an IP66-rated aluminium front bezel that protects against dust, dirt, and water ingress. A rugged aluminium die-cast chassis and fanless design enable dependable 24/7 operation, reduce maintenance needs, and extend system longevity. The widescreen 12.1" TFT-LCD (1280 x 800 or 1280 x 600 (high-brightness option)) display provides additional horizontal workspace for complex control interfaces and data visualisation in a compact footprint.

Available with a choice of resistive touch—ideal for use with gloves or in environments with dust, liquids, or debris—or projected capacitive multi-touch for enhanced durability, scratch resistance, and multi-touch capability, the ARCHMI-S-812WC can be configured to suit a variety of industrial needs. Optional features include auto-dimming for dynamic lighting conditions and a high-brightness 1000nits LCD.

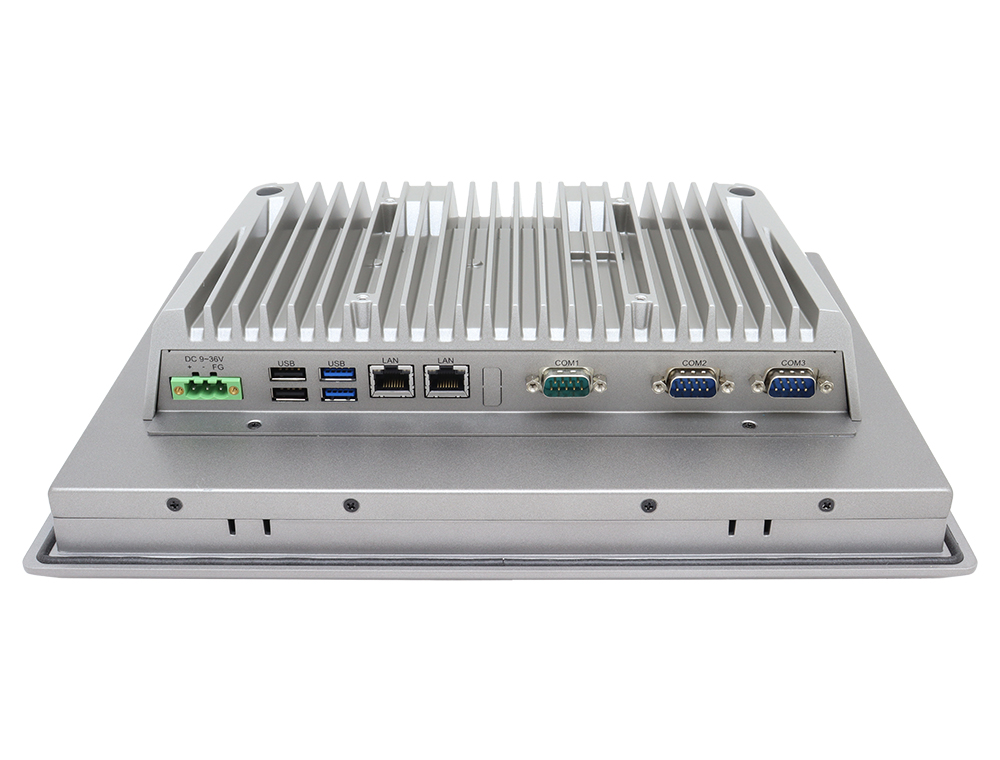

I/O connectivity includes: 2 x USB 3.2 Type-A ports, 2 x USB 2.0 Type-A ports, 2 x RS-232/422/485 serial ports, 1 x RS-232 serial port, 2 x 2.5GbE LAN ports, and 1 x HDMI port for connecting an additional display. For storage, there is 1 x M.2 M-Key slot (PCIe 3.0 x1 or SATA, 2280). Expansion options include 1 x M.2 E-Key slot for Wi-Fi/Bluetooth and 1 x M.2 B-Key slot with Nano-SIM support for 4G/5G connectivity. Onboard TPM 2.0 hardware security, a 1–255 sec watchdog timer, and Wake-on-LAN support help maintain stability and uptime in mission-critical deployments.

With a wide operating temperature range of 0~50˚C (or optional -20~60˚C with industrial wide-temp SSD/RAM) and a DC 9~36V wide power input, the ARCHMI-S-812WC is built to perform reliably in environments with unstable power and temperature fluctuations. Mounting options include panel mount and VESA 75 × 75, providing installation flexibility across machinery, kiosks, vehicles, and control systems.

Combining a rugged design, flexible touch and display options, and versatile connectivity, the ARCHMI-S-812WC is ideal for industrial applications including manufacturing, process automation, transport systems, kiosks, mining, and energy sector operations.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 12.1" TFT-LCD Widescreen Industrial Panel PC
• Intel N97 Quad Core Processor
• Wide Operating Temperature Range: 0~50˚C (or -20~60˚C optional)
• IP66 Compliant Aluminium Front Bezel
• Supports 1 x DDR5 4800MHz SO-DIMM, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 1280 x 800 or 1280 x 600 (high-brightness option) Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 2 x DB9 Type RS-232/422/485 + 1 x DB9 RS-232
• 1 x HDMI Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via M.2 B-Key and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
