ARCHMI-S-812C Series

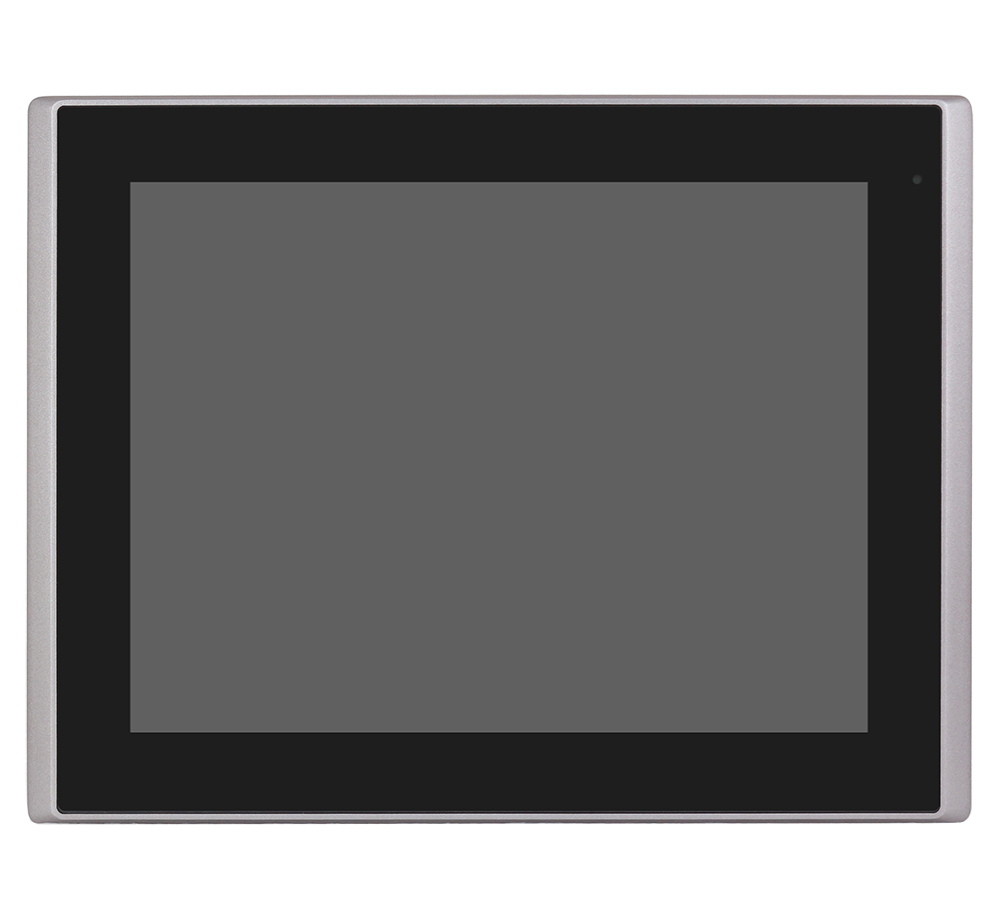

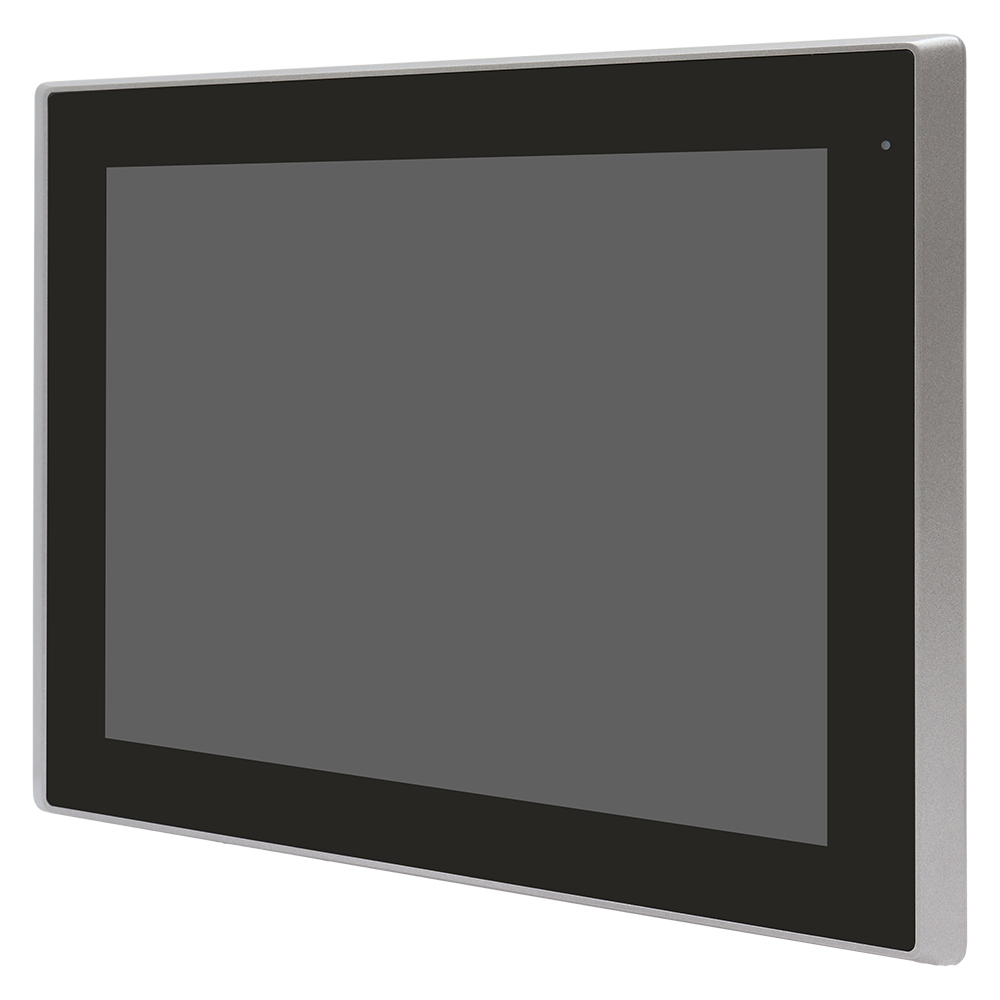

The ARCHMI-S-812C is a 12.1" (800 x 600 or optional 1024 x 768 resolution) industrial touch screen Panel PC built for reliable performance in demanding environments. Powered by the Intel® N97 Quad-Core processor, this fanless system delivers efficient computing for industrial control, automation, and HMI applications. It supports both Windows 10/11 and Linux operating systems, ensuring broad compatibility with current and future software requirements.

The ARCHMI-S-812C features an IP66-rated aluminium front bezel that provides excellent protection against dust, dirt, and water ingress. Its rugged aluminium die-cast chassis and fanless design enable dependable 24/7 operation, reduce maintenance needs, and extend system longevity. The larger 12.1” display offers increased screen space for complex control interfaces, making it ideal for applications that require detailed visual output in a robust package.

Available with a choice of resistive touch screen—ideal for use with gloves or in environments with dust, liquids, or debris—or projected capacitive multi-touch technology for enhanced durability, scratch resistance, and multi-touch capability, the ARCHMI-S-812C can be configured to suit a variety of industrial needs. Optional features include auto-dimming for dynamic lighting conditions and a high-brightness 1000nits LCD for clear visibility in outdoor or brightly lit settings.

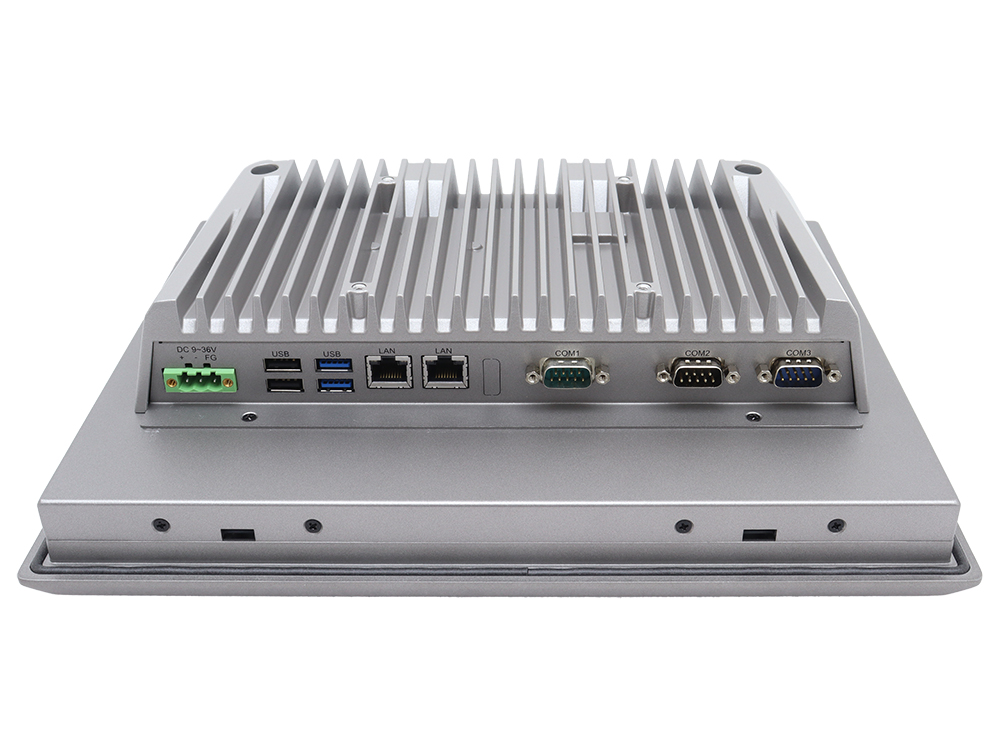

I/O connectivity includes: 2 x USB 3.2 Type-A ports, 2 x USB 2.0 Type-A ports, 2 x RS-232/422/485 serial ports, 1 x RS-232 serial port, 2 x 2.5GbE LAN ports, and 1 x HDMI port for connecting an additional display. It features 1 x M.2 M-Key slot for storage (PCIe 3.0 x1 or SATA), and for expansion: 1 x M.2 E-Key slot for Wi-Fi/Bluetooth, and 1 x M.2 B-Key slot with Nano-SIM support for 4G/5G connectivity. Onboard TPM 2.0 security and a watchdog timer ensure stability and data protection in mission-critical applications.

With a wide operating temperature range of 0~50˚C (or optional -20~60˚C with industrial wide-temp SSD/RAM) and a DC 9~36V wide power input, the ARCHMI-S-812C is engineered to perform reliably in environments with unstable power and extreme temperature fluctuations. Mounting options include panel mount and VESA 75 x 75, providing installation flexibility across machinery, kiosks, vehicles, and control systems.

Combining a rugged design, flexible display options, and versatile connectivity, the ARCHMI-S-812C is ideal for industrial applications including manufacturing, process automation, transport systems, kiosks, mining, and energy sector operations.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 12.1" TFT-LCD Industrial Panel PC
• Intel N97 Quad Core Processor
• Wide Operating Temperature Range: 0~50˚C (or -20~60˚C optional)
• IP66 Compliant Aluminium Front Bezel
• Supports 1 x DDR5 4800MHz SO-DIMM, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 800 x 600 or optional 1024 x 768 Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 2 x DB9 Type RS-232/422/485 + 1 x DB9 RS-232
• 1 x HDMI Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via M.2 B-Key and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
