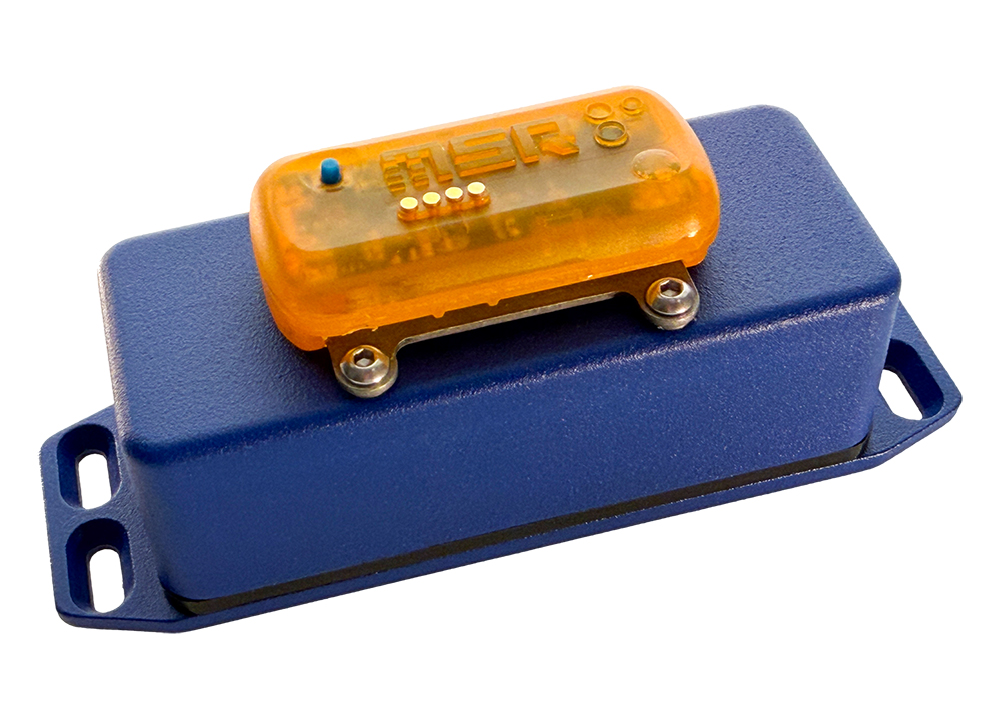

MSR175Pro Datalogger
Product Overview
Shock Data Logger, 3-Axis ±10/20/40g Sensors, 4kHz Sampling, 2M Value Memory, Temp/Hum/Pres/Light Sensors
Features Include:
- 3-Axis Acceleration Sensor: Selectable measuring ranges of ±10g, ±20g or ±40g
- High-Speed Sampling: Adjustable measurement and recording rates from 4Hz up to 4,000Hz
- Advanced Signal Conditioning: Integrated anti-aliasing, decimation, and high-pass filters for precise shock evaluation
- Comprehensive Environmental Sensing: Internal sensors for temperature, humidity, air pressure, and light

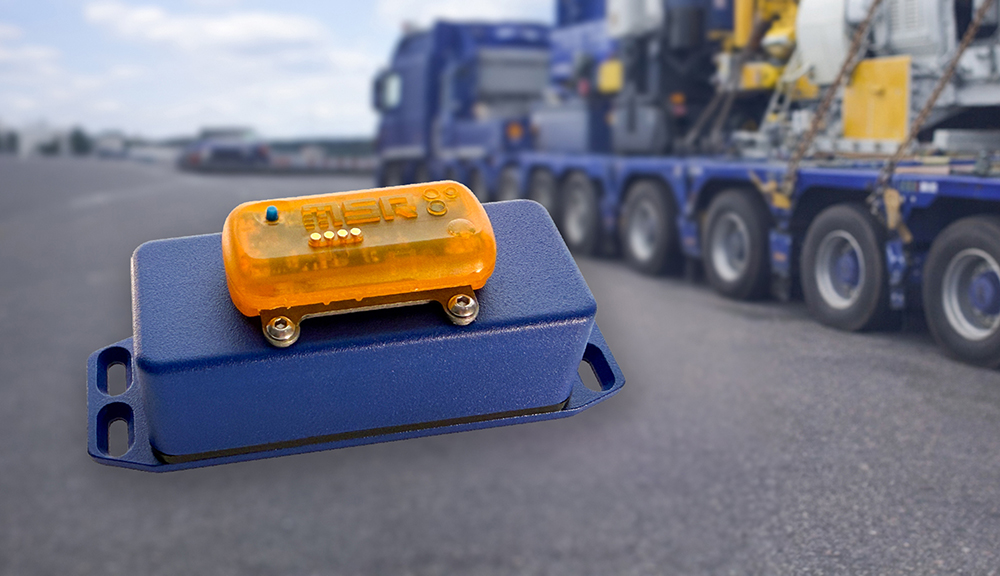

The MSR175Pro is a robust, high-performance shock data logger specifically engineered for monitoring mechanical impacts during the transportation of heavy-duty assets and transformers. Built on the proven technology of the MSR175 series, this Pro version is optimised for high-mass logistics where short-duration, highly dynamic shock events are critical to capture.
The device features an integrated 3-axis acceleration sensor with selectable measuring ranges of ±10 g, ±20 g, or ±40 g. With sampling rates up to 4000Hz and advanced signal conditioning—including anti-aliasing, decimation, and high-pass filters—the MSR175Pro effectively separates relevant shock data from static gravitational influences. This ensures that transport-induced loads are assessed accurately, providing a reliable foundation for liability and insurance claims.
In addition to shock monitoring, the MSR175Pro records essential environmental parameters including temperature, humidity, air pressure, and light (see ordering guide to see which sensors are available with each model). The internal memory stores over two million measurement values, supporting a ring buffer for 1,000 shock events and a separate, non-overwritable auxiliary memory for tamper-proof recording of critical impacts.
Enclosed in a durable IP65-rated housing, the logger is powered by a replaceable Li-SOCl2 battery with a minimum service life of two years. The included MSR software package facilitates seamless device configuration, automated report generation, and detailed event analysis. This combination of precision sensing and long-term reliability makes it an essential tool for securing high-value industrial shipments.
Take a look at the data sheet or request a quote to learn more.
Technical Data of the Sensors
| Sensors | Working Range | Accuracy (Max Deviation) | Measurement / Storage Rate |
| 3-Axis Acceleration | ±10g, ±20g or ±40g (selectable) (-20~+65°C) |
4Hz, 8Hz, 16Hz, 31Hz, 62Hz, 125Hz, 250Hz, 500Hz, 1000Hz, 2000Hz, 4000Hz (selectable) | |
| Temperature | -20~+65°C | ±0.5°C (-10~+65 °C) | 10min / 30min |
| Relative Humidity | 0~100% rel. humidity (-20~+65°C) |
±2% rel. humidity (10~85%, 0~+40°C) ±4% rel. humidity (85~95%, 0~+40°C) |
10min / 30min |
| Air Pressure | 0~2000 mbar absolute (-20~+65°C) |
±2.5 mbar (750~1100 mbar absolute, +25°C) |
10min / 30min |
| Light | 0~83,000 lx | max. sensitivity at 550nm | 10min / 30min |
| Position | To determine the position, the static acceleration is measured and stored every 10 minutes in all 3 axes. | ||
Key Features:
- 3-Axis Acceleration Sensor: Selectable measuring ranges of ±10g, ±20g or ±40g
- High-Speed Sampling: Adjustable measurement and recording rates from 4Hz up to 4,000Hz
- Advanced Signal Conditioning: Integrated anti-aliasing, decimation, and high-pass filters for precise shock evaluation
- Comprehensive Environmental Sensing: Internal sensors for temperature, humidity, air pressure, and light
- Extensive Data Storage: Memory capacity for over 2,000,000 measured values
- Tamper-Proof Event Logging: Ring buffer for 1,000 shock events plus an additional non-overwritable memory for critical impacts
- Adjustable Thresholds: Shock measurement triggers configurable in 0.5 g increments

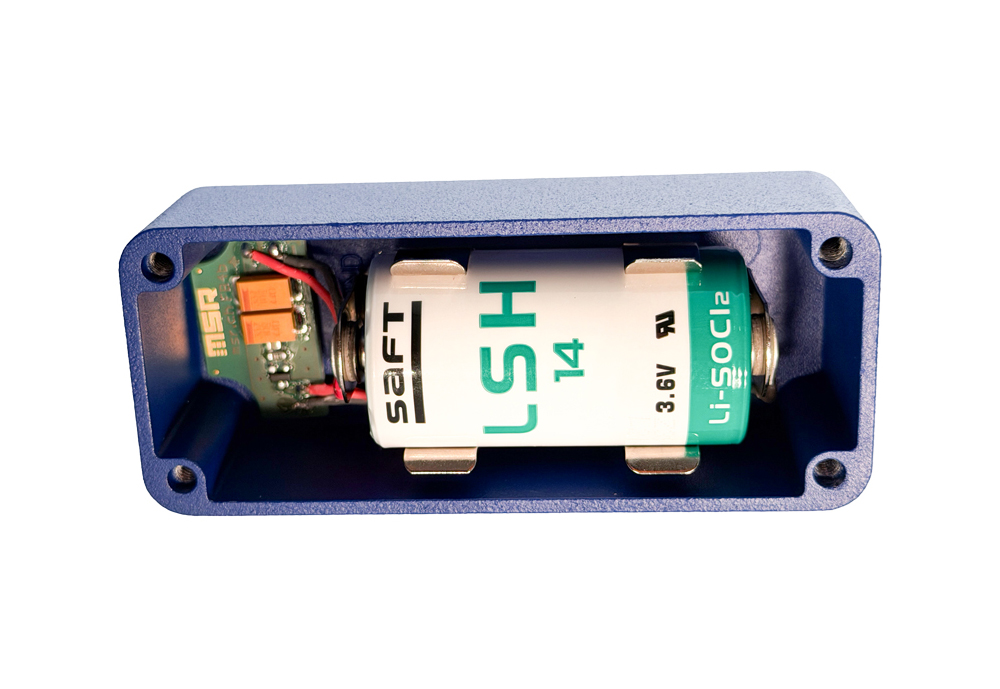

- Long-Term Operation: Replaceable Li-SOCl₂ battery (3.6 V, 5.8 Ah) with a minimum 2-year service life
- Ruggedised Design: Compact, IP65-rated housing (Amber/Blue) with LED status indication
- Complete Software Suite: Includes MSR Dashboard, ReportGenerator, and ShockViewer for configuration and analysis
- Industry Compliance: Compliant with EU RoHS/WEEE directives; high-mass transport optimised
