MSR175plus Datalogger

Transportation Data Logger with GPS Tracking: MSR175plus for Shock and Climate

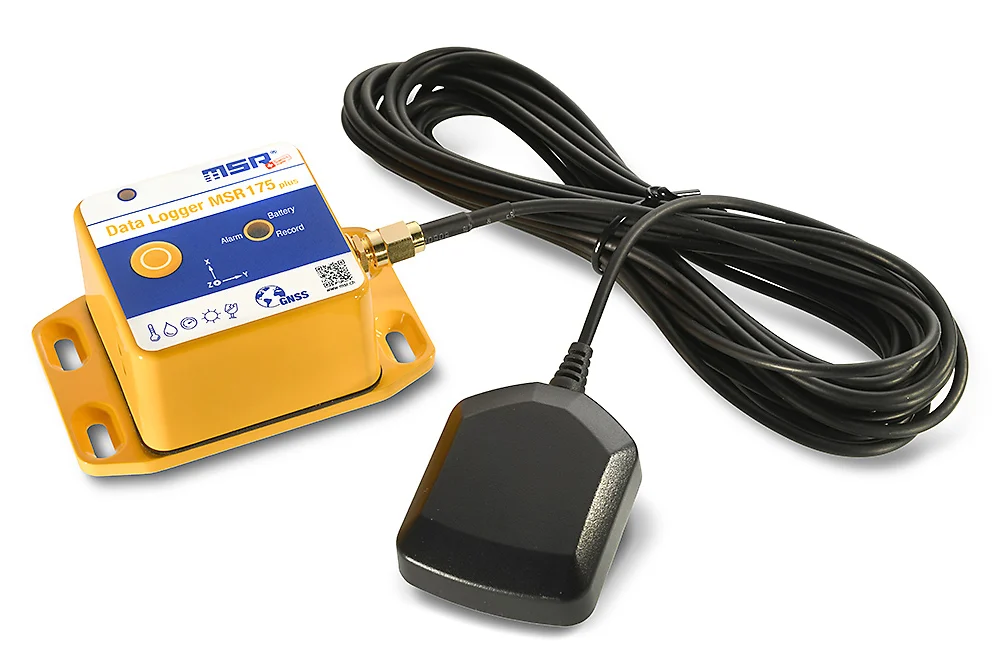

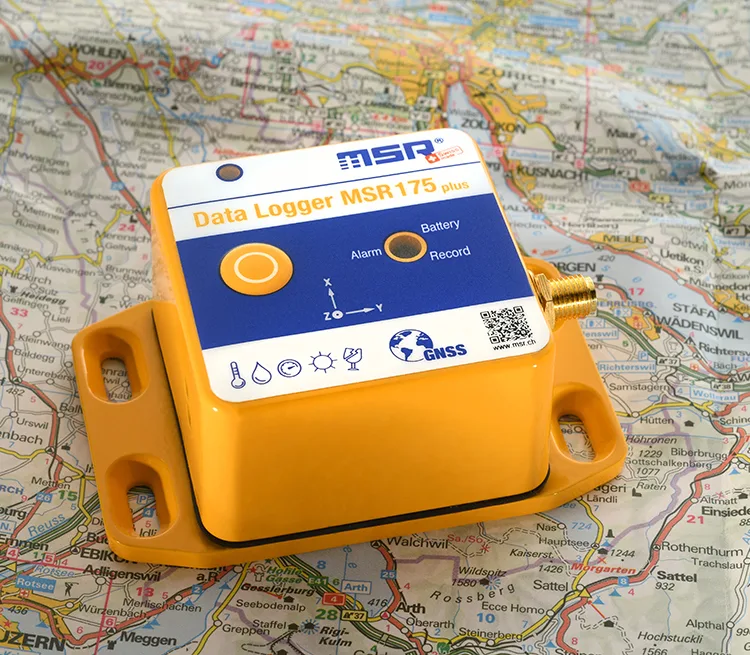

The tamper-proof MSR175plus GPS data logger seamlessly captures potentially damaging shock events as well as recording the geographical position of the event. This robust data logger ensures compliance with transport specifications and provides indispensable data for identifying liability in the event of damage as well as helping with insurance claims.

Record important transport data for months at a time

The MSR175plus data logger’s memory of over 4 million measurement values is sufficient to record data for days or months; over 1,000 shock or impact events can be recorded. The two acceleration sensors simultaneously record shocks in the measuring ranges of ±15 g and ±200 g. A measurement/storage rate of up to 6400 times per second is used. In addition, the robust mini data logger measures and stores temperature curves, humidity, air pressure and light. The 2400 mAh lithium-polymer battery, rechargeable via USB, ensures a long logger runtime – even with activated GPS tracking.

Locate critical transport events using GPS tracking

Where and when exactly did an event take place during transport or storage that was outside the preset tolerance limit? To enable you to answer this question quickly and conclusively, the MSR175plus is equipped with a GPS/GNSS (Global Navigation Satellite System) receiver. The satellite-supported position data is stored by the data logger, allowing the location of a transported item to be quickly determined and documented in the event of a damage.

Simple operation together with extensive evaluation options

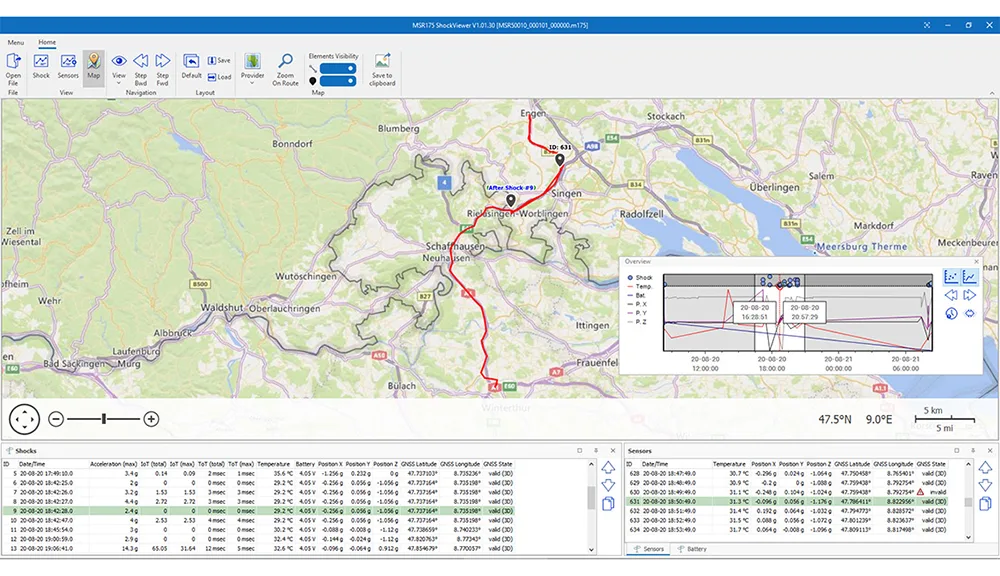

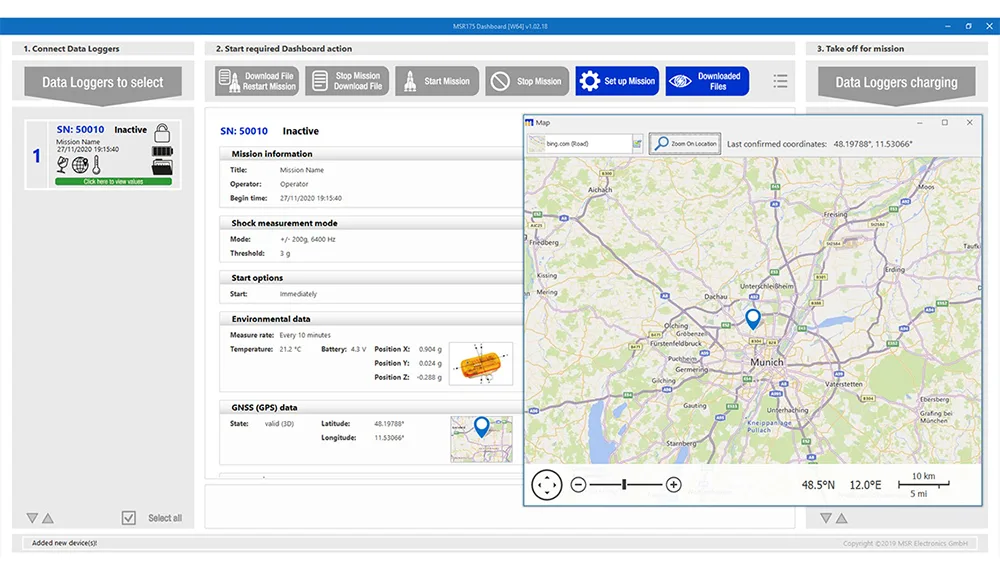

The software package for the MSR175plus includes three programs: MSR175 Dashboard, MSR ReportGenerator and MSR ShockViewer. With the MSR Dashboard, configuring the MSR175 and reading measurement data via USB is child’s play. To call up a clear report of the measurement data after transport, simply click on the MSR ReportGenerator. The basic version of the MSR ShockViewer is available for detailed evaluation of shock events.

Key Features:

• Shock measurement mode: measurement always with ±200 g at 6400 Hz and with ±15 g at 1600 Hz simultaneously
• 1 internal temperature, humidity, pressure and light sensor each; measurement frequency/storage rate every 10 min.
• GPS/GNSS receiver
• Installed memory is capable of storing over 4 million measured values
• Rechargeable 2400 mAh lithium-polymer battery, recording time with activated GPS tracking approx. 8 weeks, without GPS tracking at least 1 year
