MSR FlexSensors

Product Overview

Flexible Rugged Plug-In Sensors; Temperature, Humidity, Fluid Pressure, 3-Axis Acceleration & Light Sensors; IP67 Protection

Features Include:

  • Rugged, flexible plug-in sensors.
  • Sensors - temperature, humidity, fluid pressure, light and 3-axis acceleration.
  • IP67 dust/water protection.
  • Data acquisition via PC or MSR data loggers.
  • View More
Data Logging MSR FlexSensors Main Product Image
Data Logging MSR FlexSensors Product Image 2
Data Logging MSR FlexSensors Product Image 3
Data Logging MSR FlexSensors Product Image 4
Data Logging MSR FlexSensors Product Image 5

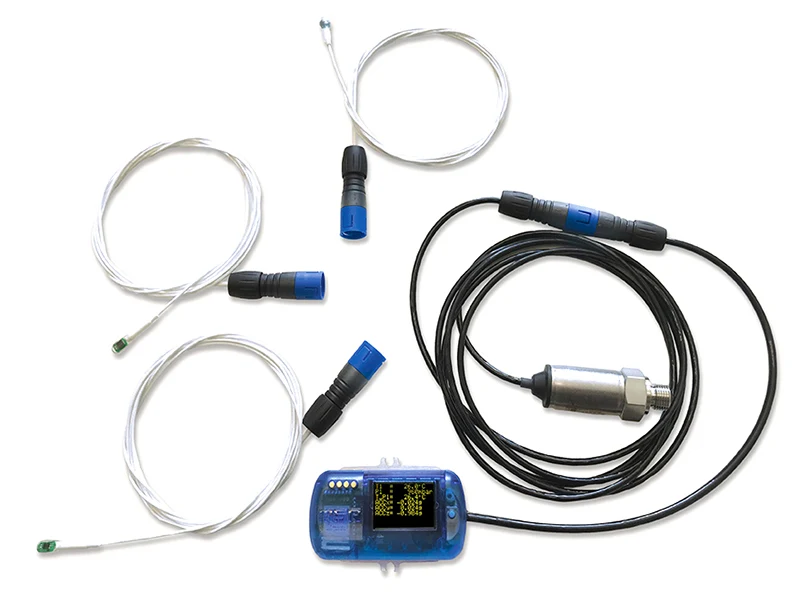

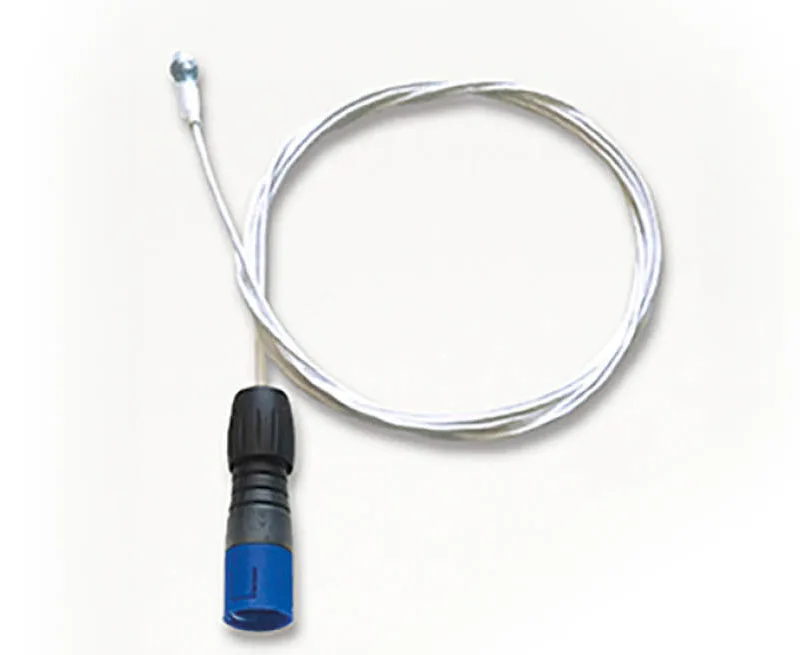

The range of MSR FlexSensors are rugged interchangeable plug-in sensors for recording measured parameters such as temperature, humidity, fluid pressure, light and 3-axis acceleration (Fast Peak).

The FlexSensors offer an efficient, cost-effective and flexible solution for a wide range of measurement applications. They are very quick and easy to exchange, enabling users to expand their sensor range at any time. They are designed so that they can also be used in damp environments such as wet areas. The high level of impermeability (IP67 dust/water protection) ensures that the sensors function reliably even in demanding industrial environments.

Various solutions are available with the MSR FlexSoftware for configuring the FlexSensors, visualising the measured values and processing the sensor information. MSR FlexSensors, together with a USB FlexConnector, allow direct connection to a PC, notebook, single-board computer or Embedded Box PC. In addition to the direct connection, it is also possible to use FlexSensors with compatible MSR data loggers MSR145WD and MSR145W2D equipped with a FlexConnector plug connection.

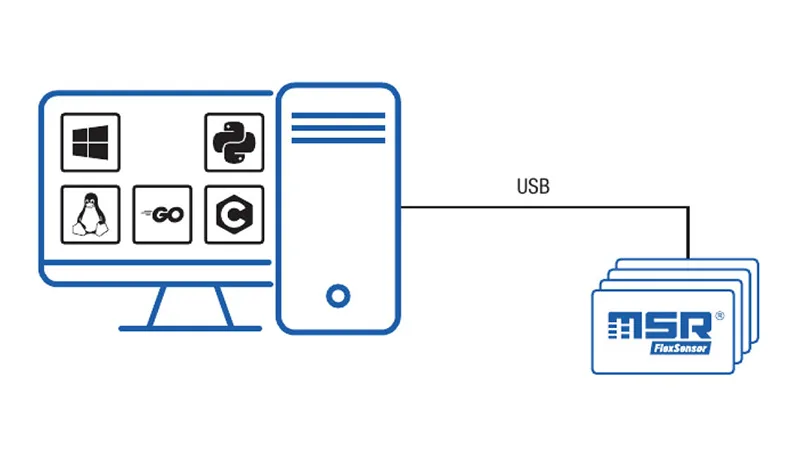

MSR FlexSensor Data Acquisition via PC

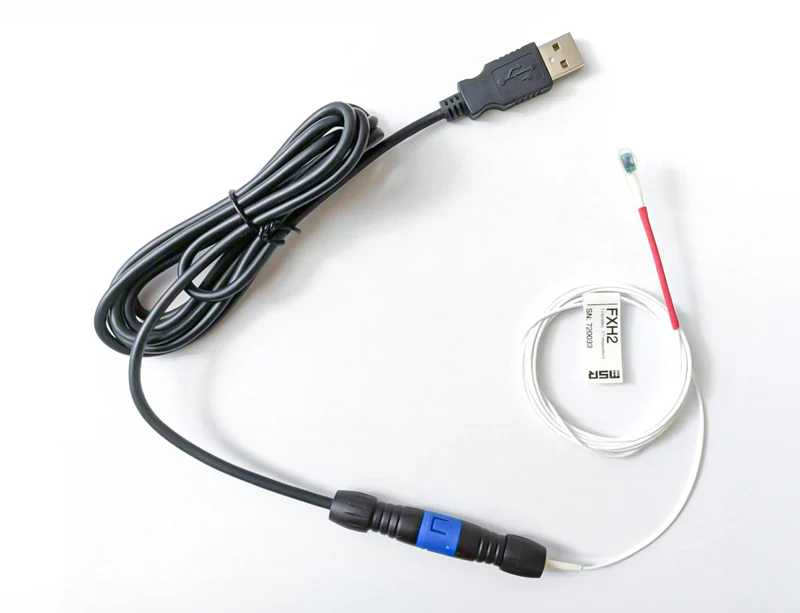

Record, save, visualise and forward measurement data from various FlexSensors simultaneously as required using the USB port on a PC. They are quick and easy to exchange and several FlexSensors can be used simultaneously. A commercially available USB hub can be used to connect multiple FlexSensors (Note: One USB FlexConnector is required per FlexSensor). Alternatively, 4, 8, or 16 FlexSensors can be connected directly using a USB FlexConnector hub.

Go to the links below to download the software for setup and use of the MSR FlexSensors:



MSR FlexSensor Autonomous Data Acquisition via MSR Data Loggers

With FlexSensors, your MSR data logger becomes an all-round high performance measuring instrument with countless sensor combination options. Additional FlexSensors can be ordered at any time and are automatically recognised by the data logger. Compatible with the MSR145WD (Bluetooth) or MSR145W2D (WiFi) data loggers. One USB FlexConnector is required per FlexSensor to connect to the data logger. The FlexSensor can be combined with the data logger’s internal and external sensors.

Go to the link below to download the software if you need to configure MSR FlexSensors:

Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.



MSR FlexSensor Sensor Specs



Measured Parameters Working Range Accuracy (max. deviation)
Temperature
1/s to every 12 h
-40...+125 °C ±0.2°C (-10...+50 °C)
±1°C (-40...+125 °C)
Relative Humidity
with integrated temperature
1/s to every 12 h
0…100 % rel. humidity
-40...+125 °C
±1.8 % rel. humidity
(10…85 %, 0…+40 °C)
±4 % rel. humidity
(85…95 %, 0…+40 °C)

Fluid Pressure
with integrared temperature
1/s to every 12 h


Material in contact with
media:

  • Stainless steel
    AISI 316L
    (DIN 1.4404 / 1.4435)
  • O-Rings: Viton® 70 °
    Shore
-1000...3000 mbar relative
-20...+85 °C
±30 mbar (1% FS)
0...3000 mbar absolute
-20...+85 °C
±30 mbar (1% FS)
0...30 bar absolute
-20...+85 °C
±0.3 bar (1% FS)
0...400 bar absolute
-20...+85 °C
±4 bar (1% FS)
0...1000 bar absolute
-20...+85 °C
±10 bar (1% FS)
3-axis-acceleration with Fast Peak
(800 Hz)
1/s to every 12 h
±15 g
-20...+65 °C
±0.15 g
(0...5 g, +25 °C)
Light
1/s to every 12 h
0…83’000 lx max. sensitivity
at 550 nm
Analogue inputs
Resolution: 12 bit
4 analogue inputs with freely selectable input configuration:
0…20 mA; 4…20 mA, 0…3.0V; 0…5.0V; 0….10.0V;
0…12.0V; 0…24.0V; 0…36.0V; 0…48.0V



Key Features:

  • Rugged, flexible plug-in sensors.
  • Sensors - temperature, humidity, fluid pressure, light and 3-axis acceleration.
  • IP67 dust/water protection.
  • Data acquisition via PC or MSR data loggers.
  • Easy connection via USB FlexConnector.
  • Connect multiple FlexSensors simultaneously.

Data Sheets (PDF)

Product Downloads PDF Icon

MSR FlexSensors Data Sheet

Software

Product Downloads Webpage Icon

MSR FlexConfigurator software to configure the FlexSensors

Product Downloads Webpage Icon

MSR FlexViewer software for graphical display of the measured values

Product Downloads Webpage Icon

MSR FlexCLI-Tools: MSR FlexCommander, MSR FlexMQTT

Part Numbers

Details

N10040

USB FlexConnector for MSR FlexSensor, 1.75m cable length, USB-Type A
