MSR165 Datalogger

Data Logger for Vibration, Shock, Jolts: MSR165

Our best-selling MSR data logger for vibration and shocks! The MSR165 is a robust mini data logger, capable of taking 1600 acceleration measurements per second for up to five years. Choose between acceleration sensor  ±15 g or ±200 g and optional temperature, humidity, air pressure and light sensors, analogue inputs.

Over one billion measurement values

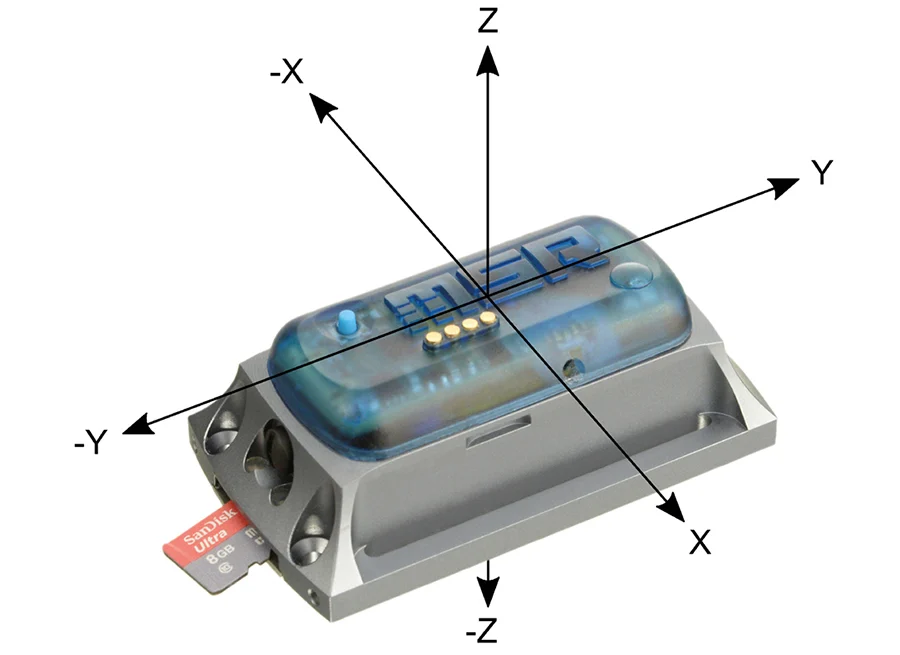

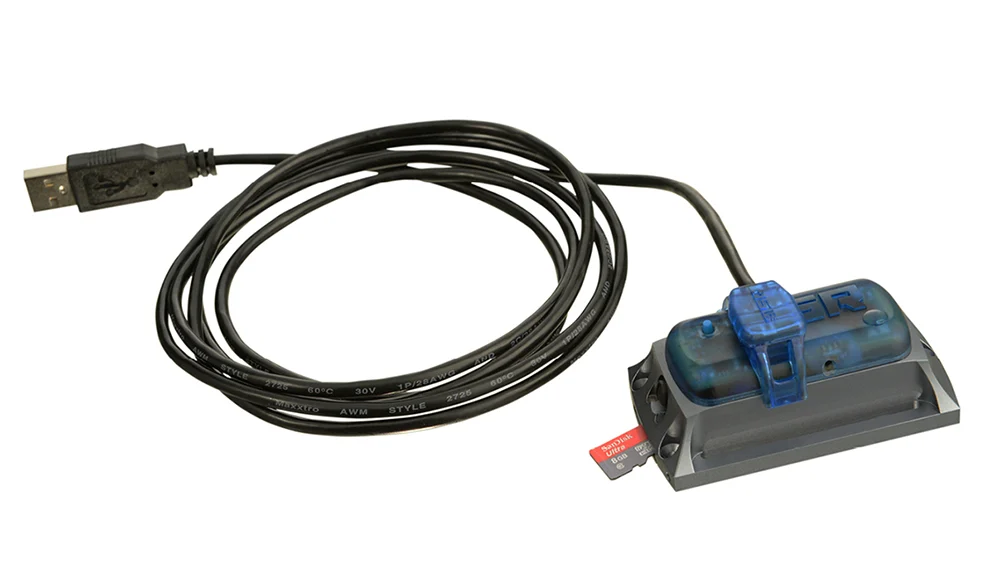

The MSR165 data logger can monitor shocks up to ±15 g or up to ±200 g; 32 measured values are recorded even before the shock event takes place. The memory is capable of storing over two million measured values, which is sufficient for recording more than 10,000 shocks; the memory capacity of the logger can be extended to more than 1 billion measured values by using a microSD card. All measured values can be rapidly transferred to a PC or laptop via the USB interface or microSD card for data analysis purposes.

Ideal for long-term measurements

The MSR165 has extremly low power requirements. With the lithium-polymer battery (1000 mAh) you can monitor shocks for up to six months, with replaceable Li-SOC2 batteries even for up to five years. The MSR power pack, which can be ordered separately, is another option to increase the recording period: The autonomous charging station recharges the internal battery of the data logger during operation, allowing you to record data for up to six times longer.

MSR ShockViewer for analysing shocks and vibrations

The MSR165 data logger comes with the MSR PC software for configuring and analysing the data. For an extensive analysis and graphical representation of the data recorded in shock mode and to automatically create reports, with the MSR165 firmware version 2.00 and later versions, the MSR ShockViewer analysis software, which is specifically tailored to the requirements of transportation monitoring, is at your disposal.

Key Features:

• 1600 samples/s measuring rate for acceleration sensor

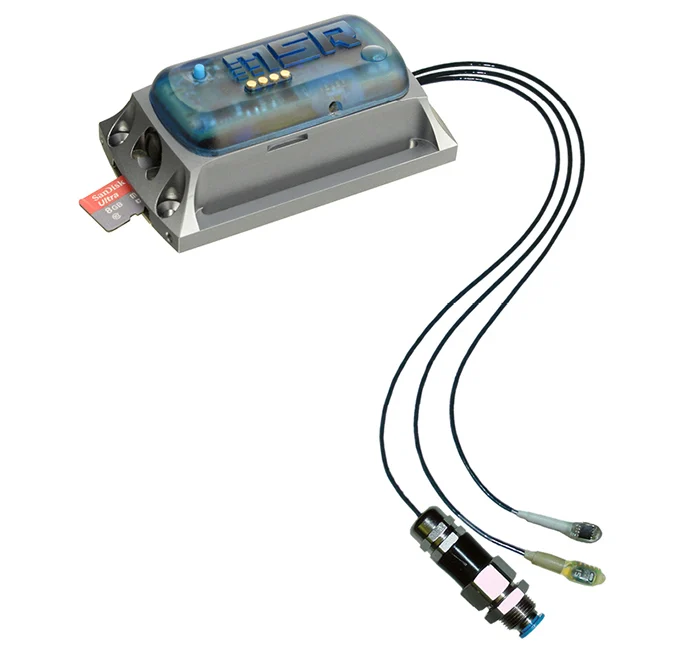

• Up to 4 additional sensors for temperature, humidity, air pressure, 4 analogue inputs also available
• Stores up to 2 million (internal memory) or 1 billion (microSD Card) total readings
• Free MSR ShockViewer analysis software for extensive analysis and graphical representation of the data recorded
• IP67 housing with 1000mAh and optional 2 x 7700m Ah batteries
