When transporting and storing goods such as pharmaceuticals or foodstuffs, it is imperative to maintain a specified, constant temperature. The data loggers of the MSR BudgetLine help here: they measure and document climate values seamlessly and in compliance with standards.
The MSR BudgetLine data loggers are available in different versions – with or without display and with internal (MSR63, MSR83) or external temperature sensor (MSR86) or with an additional internal humidity sensor (MSR64, MSR84).
Recorded measured data of the MSR BudgetLine loggers can easily be transferred to a PC using the USB interface. When the data logger is stopped, a PDF report is automatically generated, which can be saved or printed for documentation purposes.The report includes a graphical view, a table of readings and a statistical view showing minimum, maximum, average values etc.
Technical information of the sensors
| Sensor |
Working range |
Accuracy |
Measurement / Storage rate |
Int. temperature (MSR63, MSR83, MSR64, MSR84)
|
-30…+70 °C |
±0.5 °C (-30…+70 °C) |
1 min. up to 10 days |
| Ext. temperature, cable length 1 m (MSR86) |
-100…+150 °C |
±0.4 °C (-100…+150 °C) |
1 min. up to 18 hours |
Int. relative humidity (MSR64, MSR84)
|
0…98 % rel. humidity (-30…+70 °C) |
±3 % rel. humidity |
1 min. up to 10 Tage |
General technical data of the MSR BudgetLine Data Loggers
| Housing: |
PC, ABS Food Grade, IP54, not encapsulated |
Size & Weight MSR63:
|
36 x 12 x 71 mm (W x H x L), approx. 17 g |
| Size & Weight MSR64, MSR83, MSR84: |
51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Size & Weight MSR86: |
51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30 |
| Resolution: |
0.1 °C |
| Memory capacity temp. data loggers MSR63, MSR83, MSR86: |
16 000 values |
Memory capacity temp. & humidity data loggers MSR64 & MSR84:
|
32 000 values (16 000 per canal) |
| Alarm: |
min./max. value, indication on LED |
Type of battery:
|
3.0 V lithium battery (Panasonic CR2032) |
Life of battery:
|
approx. 1 year, battery replaceable |
Interface:
|
USB 2.0, A-Type |
| PDF-report: |
automatic |
| Norms: |
DIN12830, 21 CFR Part 11 |
Key Features:
- automatic PDF report generation of recorded measured data
- fast data transfer and straight forward assessment on the PC
- LED Display
- 6-point-calibration certificate stored on the logger
- free MSR BudgetLine software to configure the data logger on the PC
Budget Line Dataloggers Data Sheet
MSR63, MSR83, MSR64, MSR84...

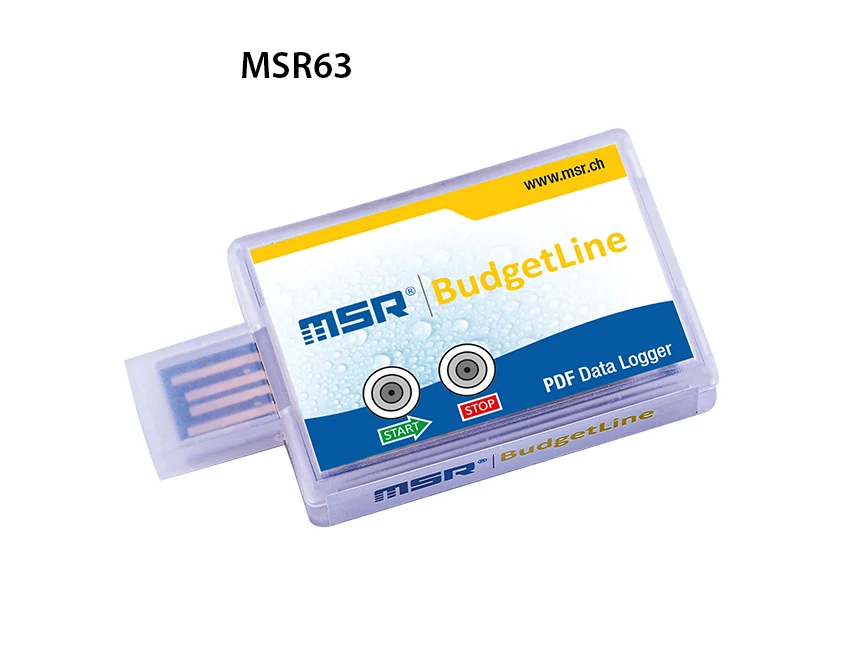

MSR63
Temperature Data Logger

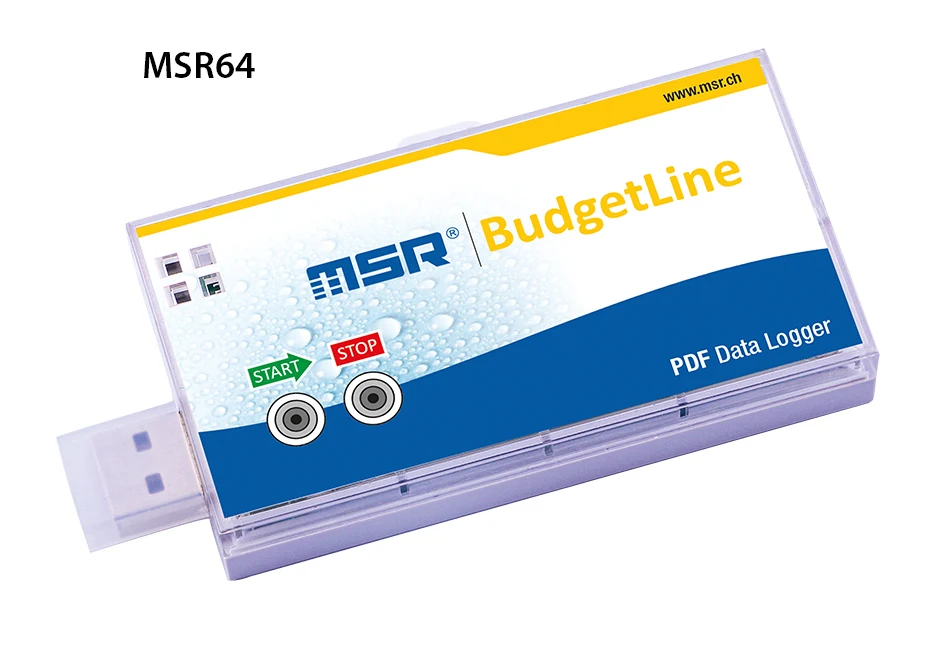

MSR64
Temperature and Humidity Data Logger
MSR83
Temperature Data Logger with Display

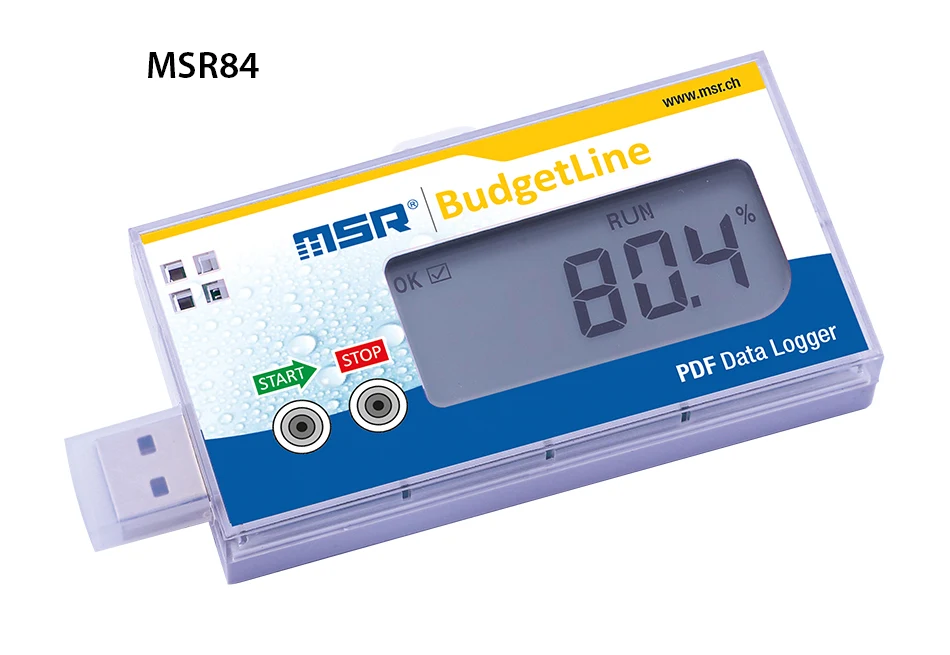

MSR84
Temperature and Humidity Data Logger with Display

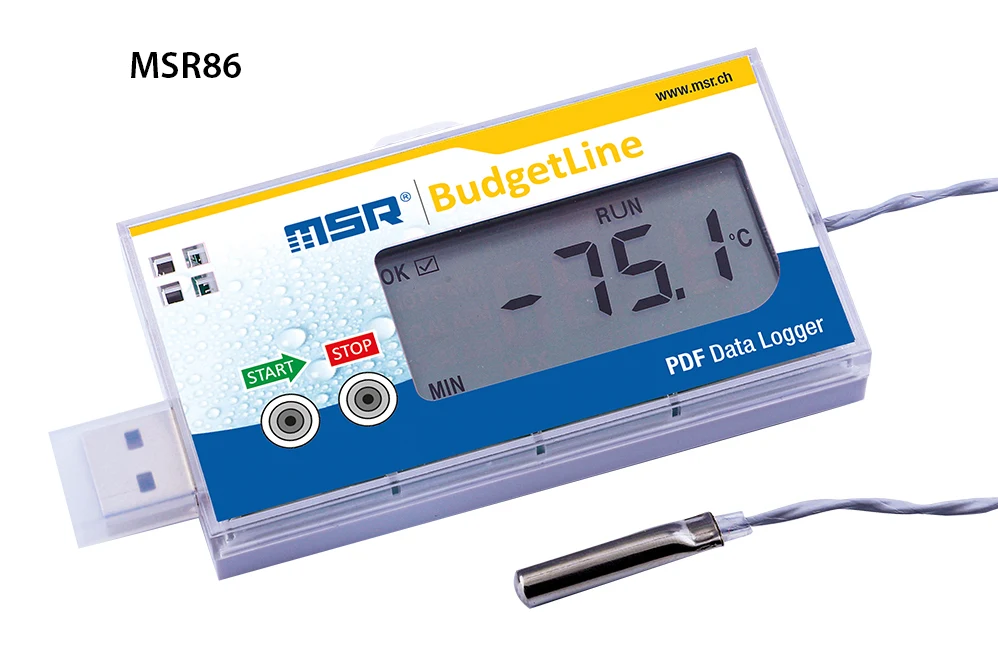

MSR86
Temperature Data Logger with Display and external sensor
