MSR160 Datalogger

Product Overview

High Speed Mini Datalogger with 4 analogue inputs and microSD card

Features Include:

  • Up to 1000 /s to every 12 h
  • Configurable pushbutton functions
  • Over 2 000 000 measurement parameters, expandableto over 1bn measurement parameters with optionalmicroSD card.
  • Rechargeable lithium polymer battery 900 mAh
  • View More

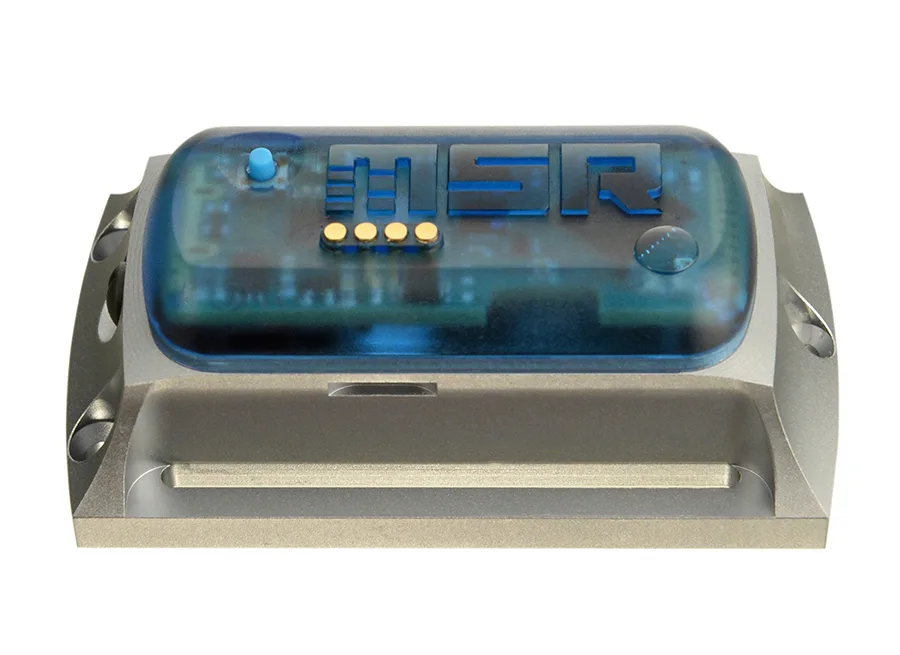

Data Logging MSR160 Datalogger Main Product Image
Data Logging MSR160 Datalogger Product Image 2

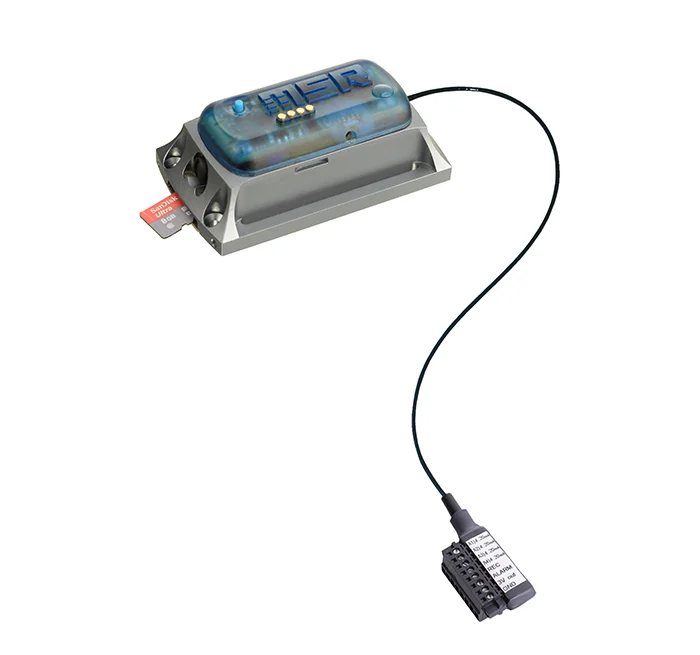

Data Logging MSR160 Datalogger Product Image 3

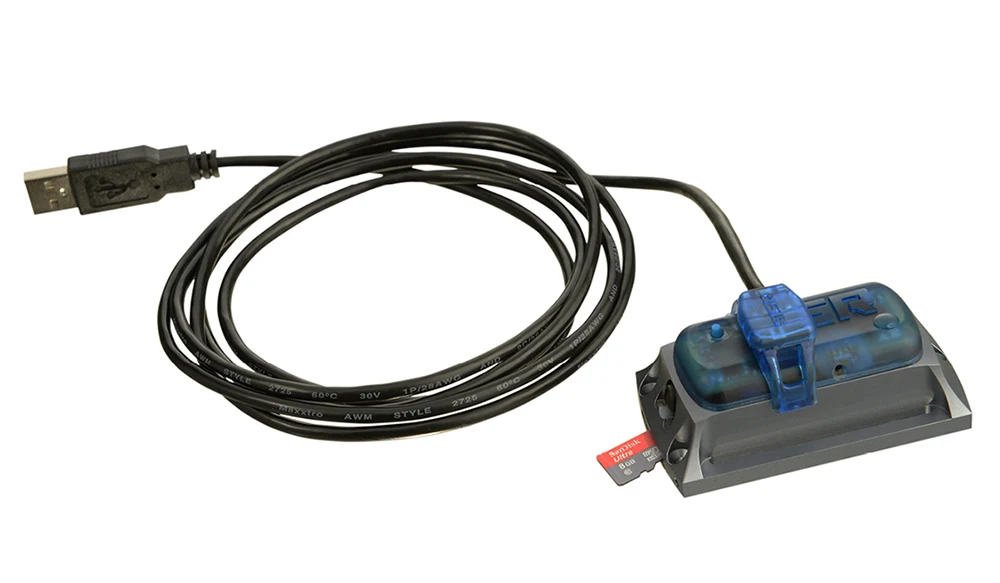

Data Logging MSR160 Datalogger Product Image 4

MSR160: High Speed Data Logger with 4 Analogue Inputs and Gigantic Memory Capacity

Four integrated analogue inputs, a high measurement rate of 1000/s per channel and its gigantic memory capacity, all packed into a small format are the key characteristics of the swiss made MSR160 data logger.

4 analogue inputs for conventional sensors

The analogue inputs of the logger can be used for conventional sensors with analogue outputs (e.g. voltage, current, CO2 etc). The analogue inputs allow voltage and milliamp current to be measured at high data rates up to 1,000 readings per second. A multiple output switching power supply is also provided. Optionally, the MSR160 can be fitted with additional temperature, humidity, pressure, acceleration or light sensors.

Memory capacity for over 1 billon measurements

The rugged but leightweight data logger records over 2,000 000 measurement parameters. With the optional microSD card you can expand the memory capacity to over one billion measurement parameters. All saved data can be rapidly transferred to a PC or laptop via the USB interface. The user-friendly data acquisition and analysis software is supplied free along with the data logger.

Key Features:

  • Up to 1000 /s to every 12 h
  • Configurable pushbutton functions
  • Over 2 000 000 measurement parameters, expandableto over 1bn measurement parameters with optionalmicroSD card.
  • Rechargeable lithium polymer battery 900 mAh
  • Selectable input configuration, 0/4-20mA; 0-3/5/10/12/24/36/48V
  • IP60 and IP67 housing options
