ARCHMI-S-821B Series

The ARCHMI-S-821B series is a 21.5” (1920 x 1080 resolution) industrial touch screen Panel PC with a rugged design and range of features ideal for a variety of applications. It features a cost-effective, yet still powerful Intel Celeron J6412 Processor with up to 32GB of DDR4 RAM. It also supports Windows 10/11 and Linux making it suitable for both current and future applications.

The IP66 certified aluminium front panel provides protection against water, dust, and other solid foreign objects that might cause damage to the system. The ARCHMI-S-821B also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-S-821B series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

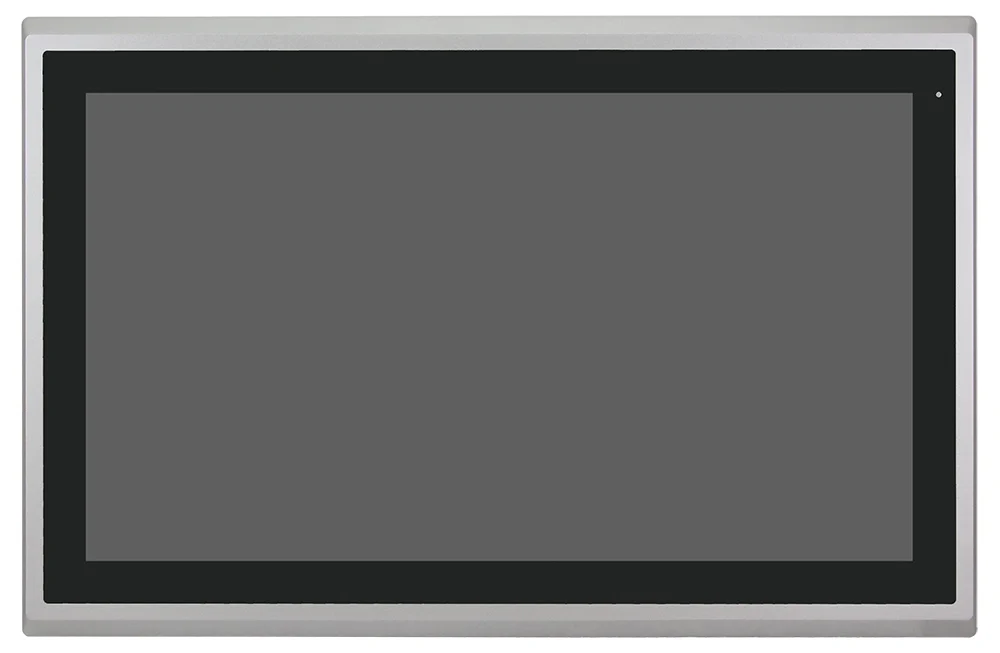

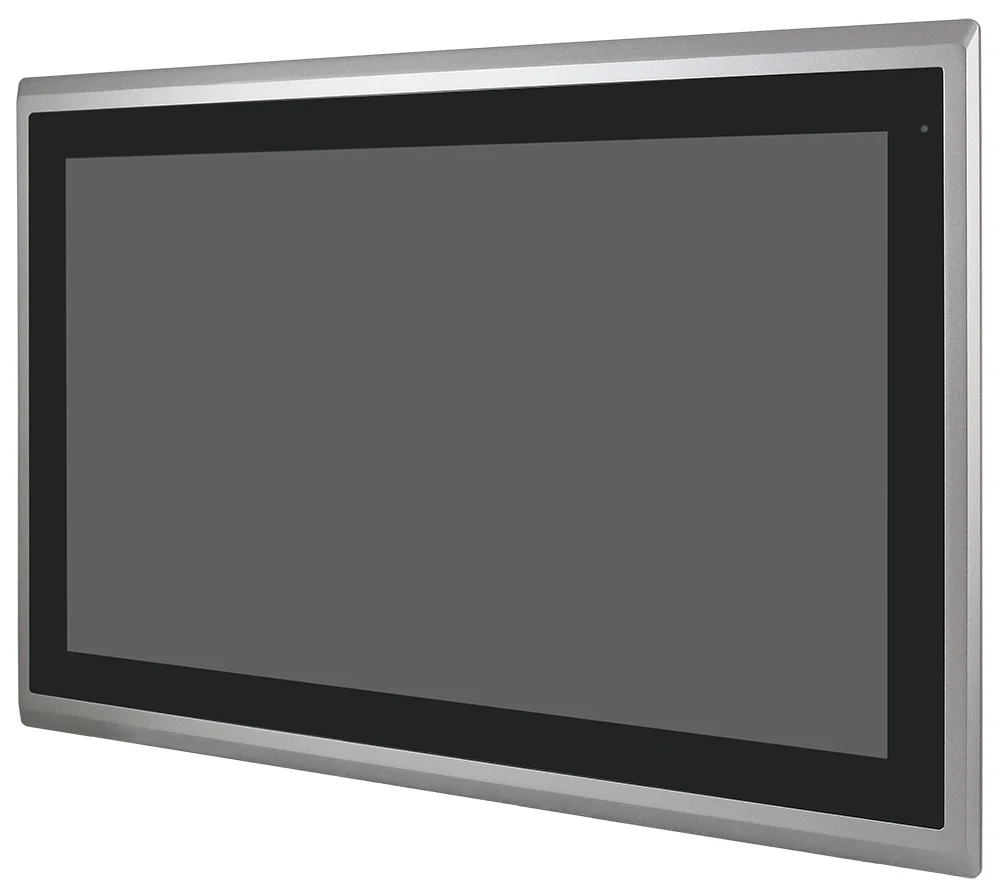

The ARCHMI-S-821B features a 21.5” TFT-LCD with a 1920 x 1080 resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection and multi-touch functionality. Optional auto dimming, 1000nits high brightness, optical bonding, and AR coating makes the ARCHMI-S-821B perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, touch screen kiosks and ATMs.

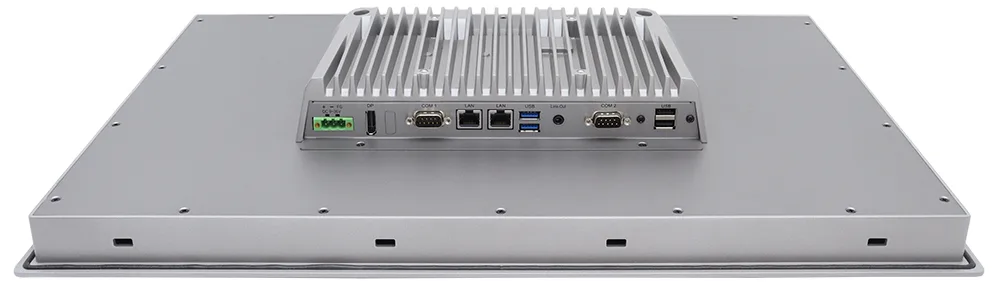

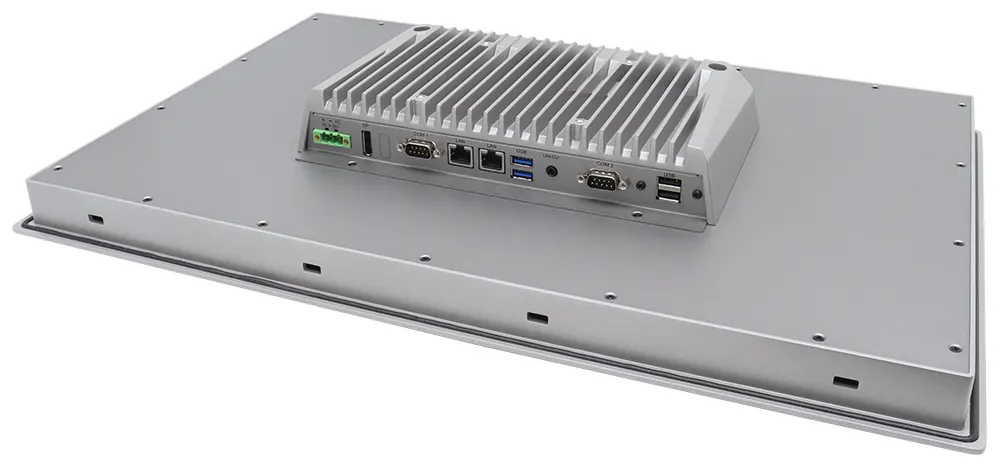

The ARCHMI-S-821B includes: 2 x USB 3.2, 2 x USB 2.0, 1 x RS-232, 1 x RS-232/422/485, 1 x 1GbE LAN and 1 x 2.5GbE LAN ports as well as a DisplayPort output which enables users to connect an additional monitor when required. It also has support for expansion via 1 x full-size Mini-PCIe and 1 x M.2 slot.

The ARCHMI-S-821B has a wide operating temperature range of 0~50˚C as standard, making it an ideal solution for harsh environments with extreme temperatures. It also features a wide power input range of DC 9~36V. It can also be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-S-821B ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging and warehousing.

Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

• 21.5" TFT-LCD Industrial Panel PC
• Intel Celeron J6412 Quad Core Processor
• Wide Operating Temperature Range: 0~50˚C
• IP66 Compliant Aluminium Front Bezel
• Supports 1 x DDR4 SO-DIMM Socket, Up to 32GB
• Projected Capacitive Multi-Touch or Resistive Touch Screen Options
• 1920 x 1080 Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 1 x RS-232/422/485 + 1 x RS-232
• 1 x DP Port
• 2 x LAN
• Fanless Design
• DC 9~36V Wide-Range Power Input
• Supports Expansion via Mini-PCIe Slot and M.2 E-Key
• Supports Windows 10 IoT / 11 / Linux
• Optional High Brightness (1000nits) & Auto-Dimming
