AITRON-812C Series

The AITRON-812C is a rugged and compact 12.1-inch industrial HMI designed for reliable operation in automation, manufacturing and IIoT environments. Powered by the Intel® Atom™ x7425E quad-core processor (1.5GHz, 12W TDP) with integrated Intel® UHD Graphics, it provides efficient CPU and GPU performance for visualisation, monitoring and edge-ready applications within a fanless, low-maintenance design.

It supports DDR5-4800MHz SO-DIMM memory up to 32GB and includes an M.2 2280 M-Key slot supporting SATA or PCIe-based SSD storage for fast, reliable data access. Built-in TPM 2.0 enhances system security, and compatibility with Windows 10 IoT Enterprise, Windows 11 and Linux ensures flexibility across industrial software environments.

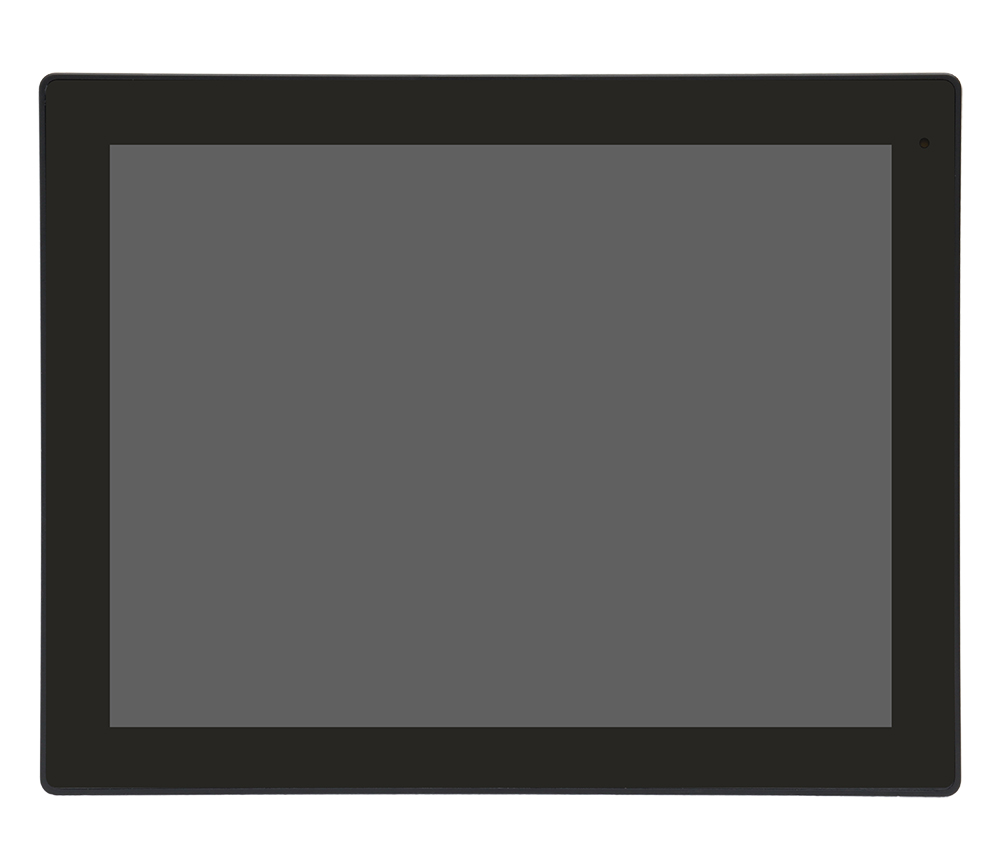

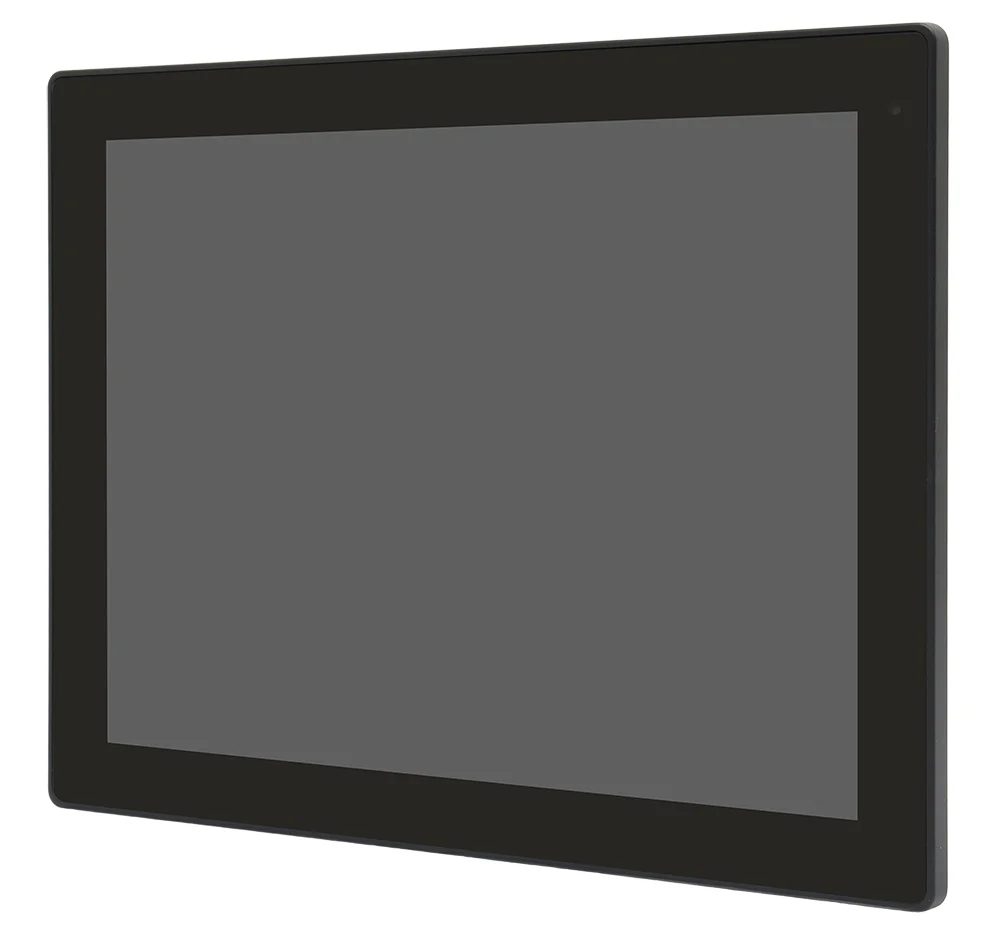

The 12.1" TFT-LCD display offers a 1024 x 768 resolution with projected capacitive multi-touch and a 7H anti-scratch glass surface, providing durability and precise touch operation. An optional 1000nit high-brightness display improves visibility in bright or semi-outdoor environments. Optional features include auto-dimming, optical bonding, anti-glare (AG) and anti-reflection (AR) coatings, and an anti-UV surface treatment to enhance readability and long-term reliability.

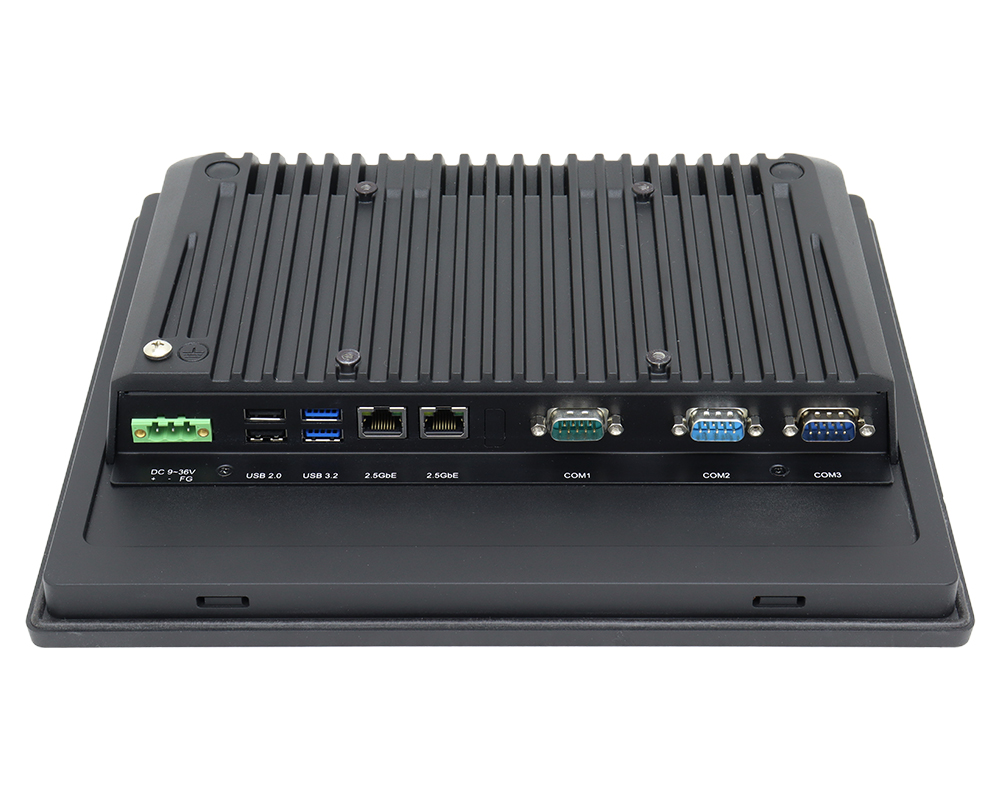

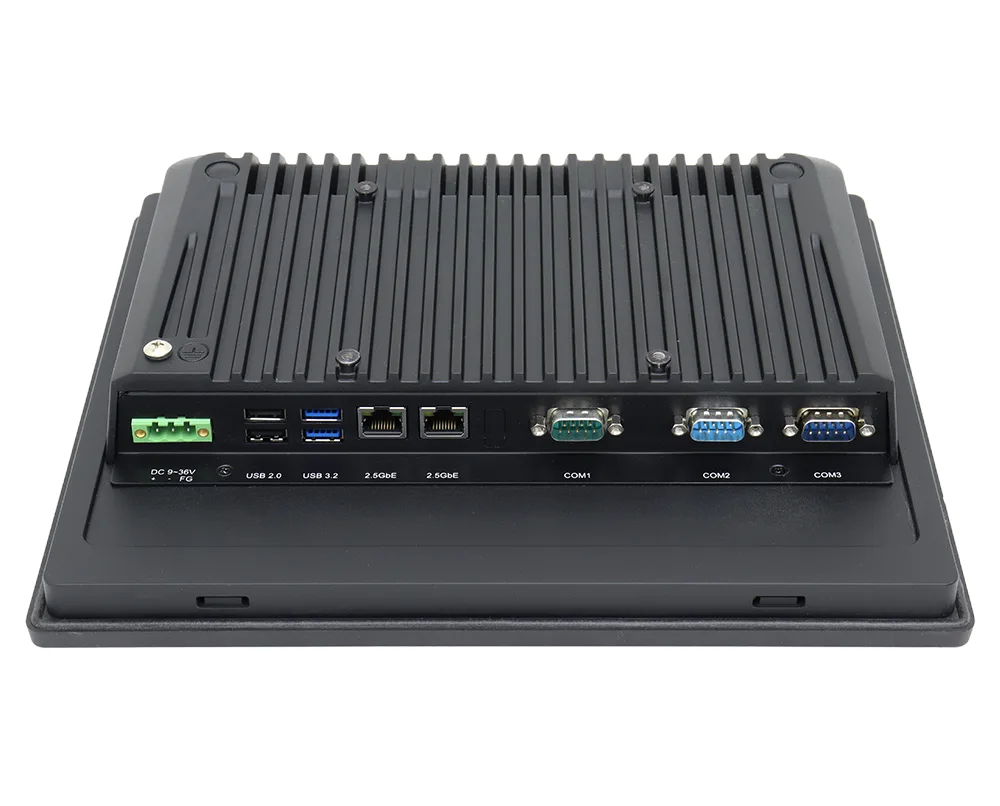

Connectivity includes 2 x USB 3.2 Gen1, 2 x USB 2.0, dual 2.5GbE LAN ports, 1 x HDMI 1.4 output supporting up to 4K at 30Hz, and 2 x RS-232/422/485 serial communication. There is also the option to add an additional 2 x USB 2.0 Type-A or 1 x COM (supports RS-232). Expansion capabilities include M.2 slots for Wi-Fi/Bluetooth and LTE/5G modules, along with a Nano-SIM slot for wireless connectivity.

Designed for harsh industrial environments, the AITRON-812C features a true-flat, IP66-rated aluminium front bezel, supports panel and VESA mounting, supports a wide 9–36V DC power input, and operates across a wide operating temperature range of -20°C to 60°C (high-brightness models: 0°C to 50°C). The AITRON-812C is ideal for smart manufacturing, machine control, kiosks and industrial monitoring applications requiring durability, performance and flexible integration.

To learn more, download the datasheet or request a quote today.

Key Features:

• 12.1" industrial-grade TFT-LCD with 1024 x 768 resolution
• Projected capacitive multi-touch with 7H anti-scratch glass surface
• Intel® Atom™ x7425E quad-core processor with integrated Intel® UHD Graphics
• DDR5-4800MHz SO-DIMM support up to 32GB
• M.2 2280 M-Key storage supporting SATA or PCIe SSDs
• Optional 1000nit high-brightness
• Optional auto-dimming, optical bonding, AG/AR coatings and anti-UV surface treatment
• IP66-rated aluminium front bezel with narrow, true-flat design
• Dual 2.5GbE LAN with Intel® I226 controllers
• 2 x USB 3.2 Gen1 and 2 x USB 2.0
• 2 x RS-232/422/485 serial
• Additional I/O Option: 2 x USB 2.0 Type-A or 1 x DB9, supports RS-232 (COM3)
• 1 x HDMI 1.4 output supporting up to 4K resolution at 30Hz
• M.2 expansion slots for Wi-Fi/Bluetooth and LTE/5G modules, plus Nano-SIM
• Fanless design
• Wide 9–36V DC power input
• Panel mount and VESA 100 x 100 mount
• Wide Operating temperature range: -20°C to 60°C (high-brightness models: 0°C to 50°C)
