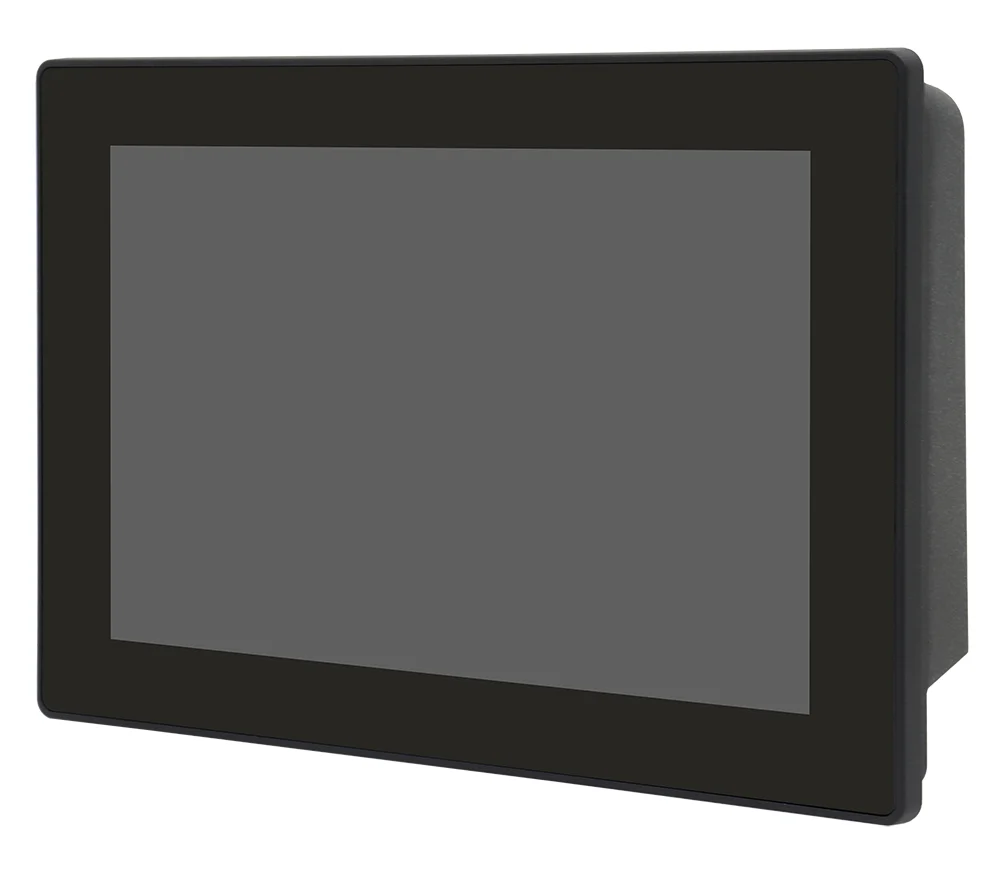

AITRON-810C Series

The AITRON-810C is a compact and rugged 10.1-inch industrial HMI designed for reliable operation in automation, manufacturing and IIoT environments. Powered by the Intel® Atom™ x7425E quad-core processor (1.5GHz, 12W TDP) with integrated Intel® UHD Graphics, it delivers efficient CPU and GPU performance for visualisation, monitoring and edge-ready applications within a fanless, space-saving design.

The system supports DDR5-4800MHz SO-DIMM memory up to 32GB and features an M.2 2280 M-Key slot supporting SATA or PCIe-based SSD storage for fast, reliable data access. Integrated TPM 2.0 enhances platform security, while support for Windows 10 IoT Enterprise, Windows 11 and Linux ensures flexibility across industrial software environments.

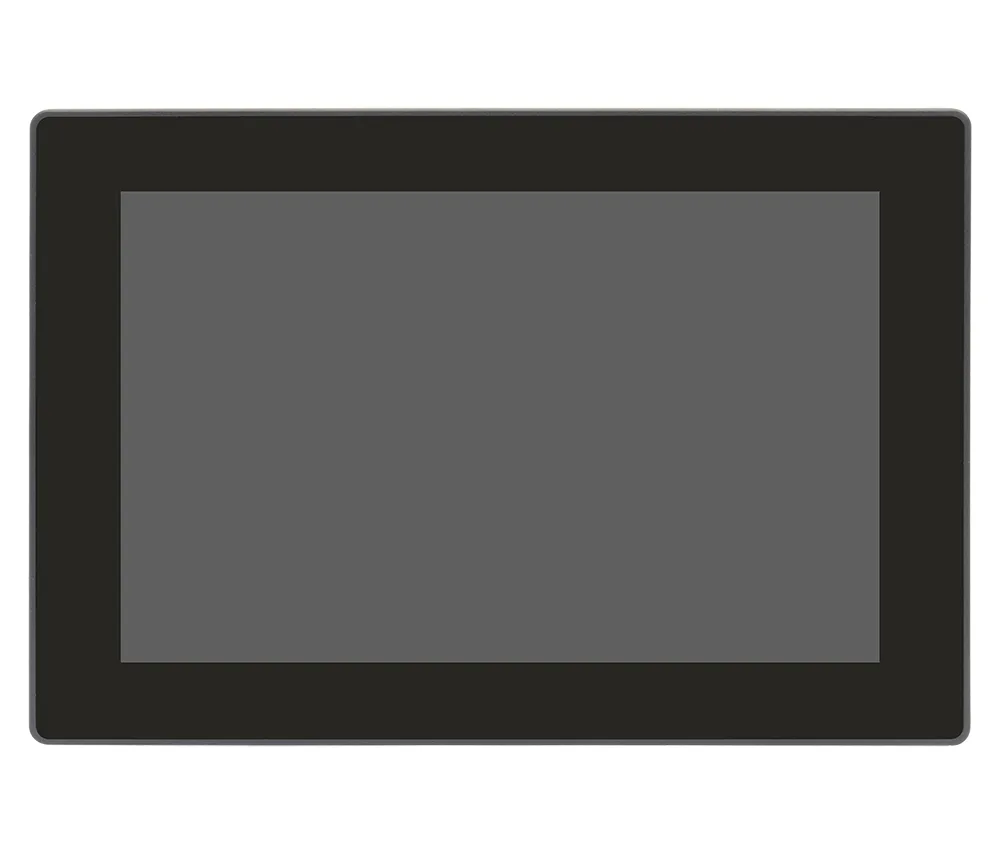

The 10.1" TFT-LCD display offers a 1280 x 800 resolution with projected capacitive multi-touch and a 7H anti-scratch glass surface, providing durability and accurate touch operation in industrial conditions. An optional 1000nit high-brightness display is available for improved visibility in bright or semi-outdoor environments. The display can also be configured with optional auto-dimming, optical bonding, anti-glare (AG) and anti-reflection (AR) coatings, as well as an anti-UV surface treatment to enhance readability and long-term reliability.

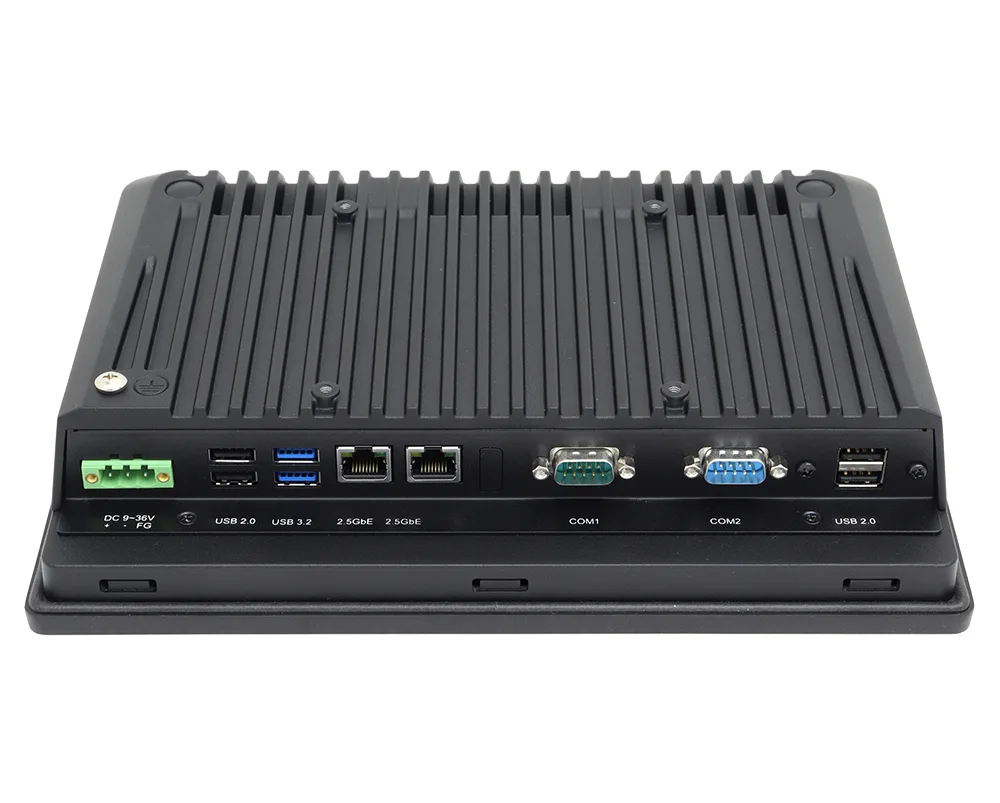

Connectivity includes 2 x USB 3.2 Gen1, 2 x USB 2.0, dual 2.5GbE LAN ports, 1 x HDMI 1.4 output supporting up to 4K at 30Hz, and 2 x RS-232/422/485 serial communication. There is also the option to add 2 x USB 2.0 Type-A or 1 x COM (supports RS-232). Expansion capabilities include M.2 slots for Wi-Fi/Bluetooth and LTE/5G modules, along with a Nano-SIM slot for wireless connectivity.

Designed for harsh industrial environments, the AITRON-810C features a true-flat, IP66-rated aluminium front bezel, supports panel and VESA mounting, supports a wide 9–36V DC power input, and operates across a wide operating temperature range of -20°C to 60°C (high-brightness models: 0°C to 50°C). The AITRON-810C is well suited to smart manufacturing, machine control, kiosks and industrial monitoring applications where durability, performance and flexibility are required.

To learn more, download the datasheet or request a quote today.

Key Features:

• 10.1" industrial-grade TFT-LCD with 1280 x 800 resolution
• Projected capacitive multi-touch with 7H anti-scratch glass surface
• Intel® Atom™ x7425E quad-core processor with integrated Intel® UHD Graphics
• DDR5-4800MHz SO-DIMM support up to 32GB
• M.2 2280 M-Key storage supporting SATA or PCIe SSDs
• Optional 1000nit high-brightness
• Optional auto-dimming, optical bonding, AG/AR coatings and anti-UV surface treatment
• IP66-rated aluminium front bezel with narrow, true-flat design
• Dual 2.5GbE LAN with Intel® I226 controllers
• 2 x USB 3.2 Gen1 and 2 x USB 2.0
• 2 x RS-232/422/485 serial
• Additional I/O Option: 2 x USB 2.0 Type-A or 1 x DB9, supports RS-232 (COM3)
• 1 x HDMI 1.4 output supporting up to 4K resolution at 30Hz
• M.2 expansion slots for Wi-Fi/Bluetooth and LTE/5G modules, plus Nano-SIM
• Fanless design
• Wide 9–36V DC power input
• Panel mount and VESA 100 x 100 mount
• Wide Operating temperature range: -20°C to 60°C (high-brightness models: 0°C to 50°C)
