ViTAM-121 Series

The ViTAM-121 is a 21.5" fully sealed stainless steel industrial monitor engineered to provide a large-format, widescreen interface for demanding processing and control environments. Designed for applications where visual clarity and rigorous sanitation are equally essential, this display serves as an optimal display interface across a range of industrial applications, including food and beverage production, pharmaceutical facilities, cleanrooms, and automated industrial machinery requiring expansive data display.

Featuring a 21.5" widescreen TFT-LCD panel with a Full HD 1920 x 1080 resolution, the monitor offers clear, high-definition visual output for complex layouts and process monitoring. For operations exposed to bright facility lighting or ambient glare, an optional 1000nits high-brightness screen is available to ensure excellent readability. Users can select from flexible touch technologies to suit their precise operational requirements: resistive touch delivers accurate input when operators wear heavy protective gloves or work in splash-prone areas, while projected capacitive (PCAP) touch provides superior surface durability, scratch resistance, and responsive multi-touch control. A glass-only panel option is also available for display-only installations.

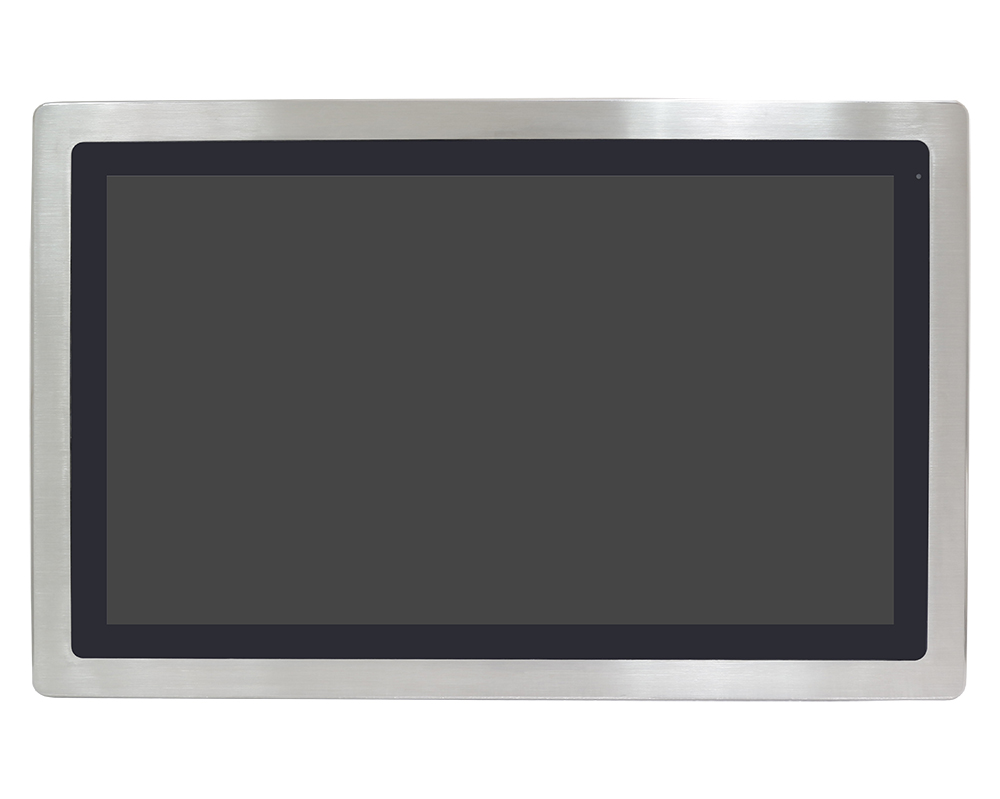

Constructed with a smooth true-flat front bezel and a Grade 304 stainless steel enclosure—with Grade 316 available as an option for enhanced chemical resistance—the ViTAM-121 offers exceptional anti-bacterial and anti-corrosive properties. Its complete IP66/IP69K rating guarantees total protection against high-pressure, high-temperature washdowns, harsh sanitisation agents, and particulate ingress. This seamless chassis design prevents debris accumulation, supports strict hygienic standards, and minimizes ongoing maintenance overhead, aided by a dedicated side-edge touch on/off button that enables safe screen wiping during active production shifts.

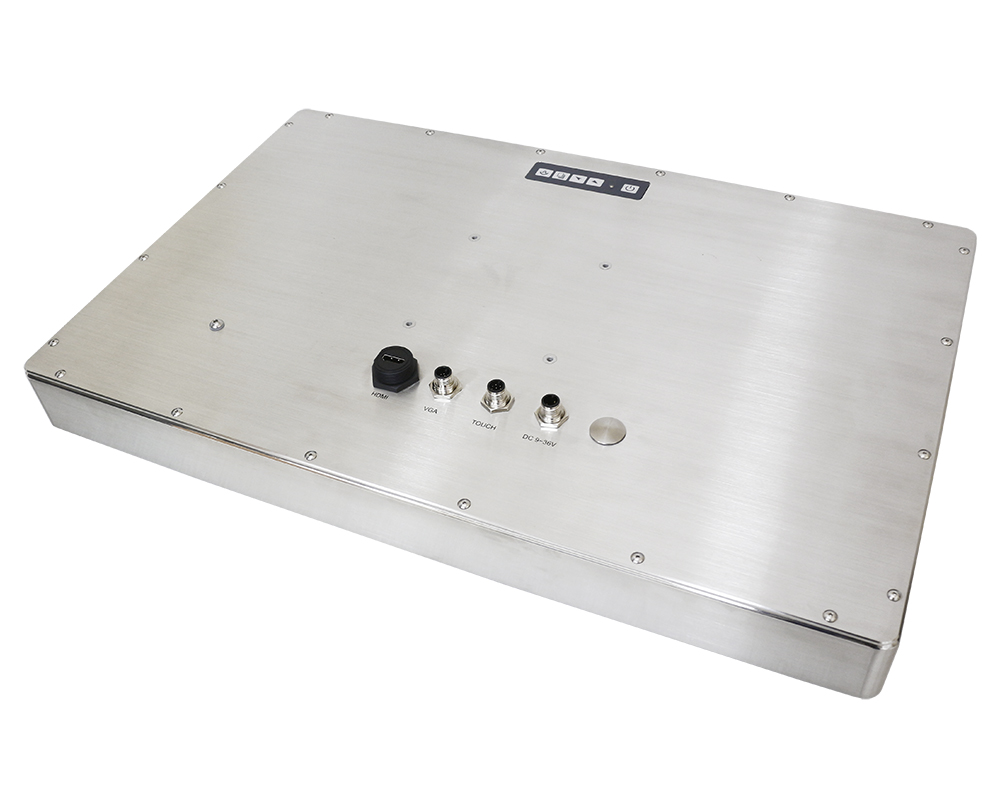

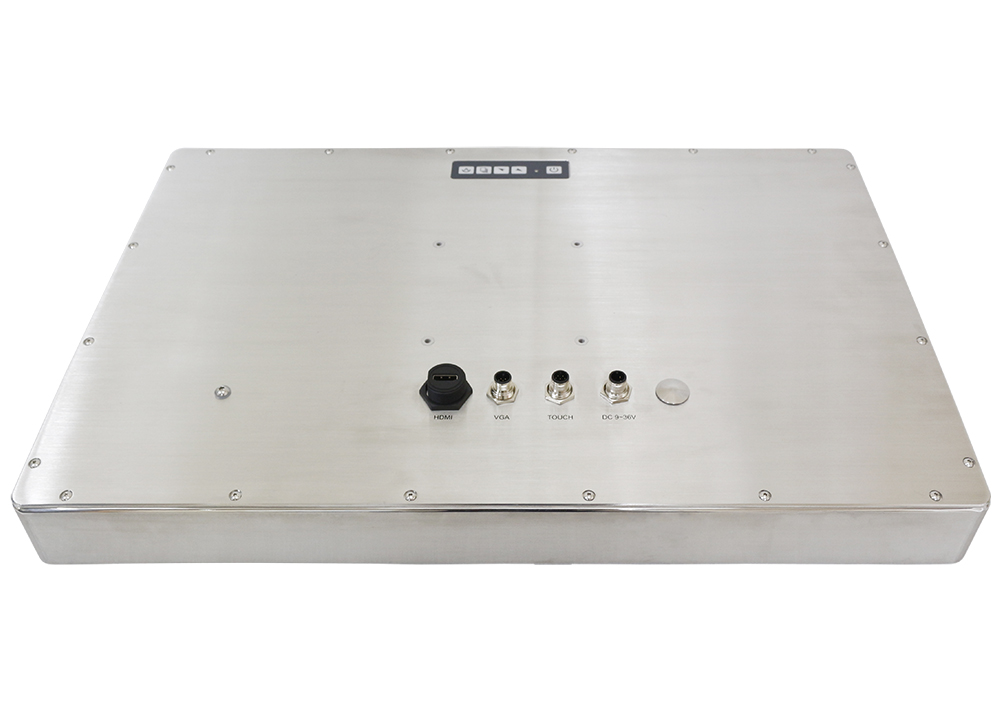

To ensure watertight reliability across all physical interfaces, the ViTAM-121 features industrial-grade M12 waterproof connectors, including M12 VGA, waterproof HDMI, and M12 USB 2.0 with tethered protective covers. Rear membrane OSD buttons allow convenient display adjustments, while an optional integrated 2W IP65 speaker provides clear acoustic feedback. Installation is adaptable and secure, supporting standard VESA 100 x 100mm mounting configurations alongside an optional ergonomic yoke mount kit.

Engineered for long-term operational stability under varying conditions, the monitor supports a wide-range 9~36V DC power input and operates across a standard 0°C to 50°C temperature range. Combining a spacious Full HD viewing area with rugged hygienic construction, the ViTAM-121 delivers long-term performance peace of mind in high-stress processing facilities. Take a look at the data sheet or request a quote to learn more.

Other Screen Sizes In This Series:

Key Features:

• 21.5" TFT-LCD display with 1920 x 1080 resolution
• True-flat front bezel with Grade 304 stainless steel enclosure (Grade 316 optional)
• Fully sealed IP66/IP69K ingress protection
• Touch screen options: Projected Capacitive (PCAP), Resistive Touch, or Glass (non-touch)
• Dedicated side-edge touch on/off button for safe, hygienic wipe-down cleaning
• Optional 1000nits high-brightness panel for enhanced ambient visibility
• Robust M12 waterproof I/O connectors: VGA, HDMI, USB 2.0, and DC power with tethered caps
• Rear-mounted membrane OSD controls
• Wide-range 9~36V DC power input
• Wide operating temperature range: 0~50°C
• Flexible mounting options: VESA 100 x 100 mm and optional Yoke mount
