ViTAM-110 Series

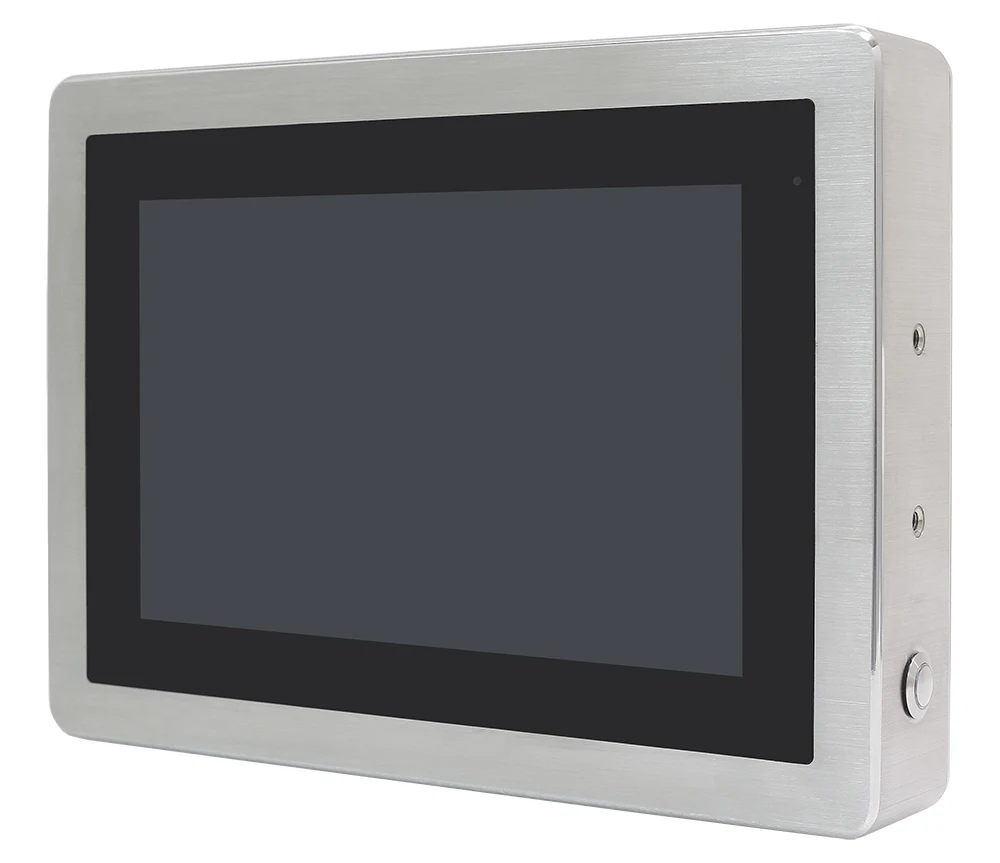

The ViTAM-110 is a compact 10.1" fully sealed stainless steel industrial monitor built for space-constrained applications requiring rigorous hygiene, exceptional resilience, and reliable operation. Engineered to function seamlessly across demanding automation and production environments, this display provides a rugged interface for a range of industrial applications, including food and beverage processing, pharmaceutical cleanrooms, chemical plants, and outdoor control systems where installation space is at a premium.

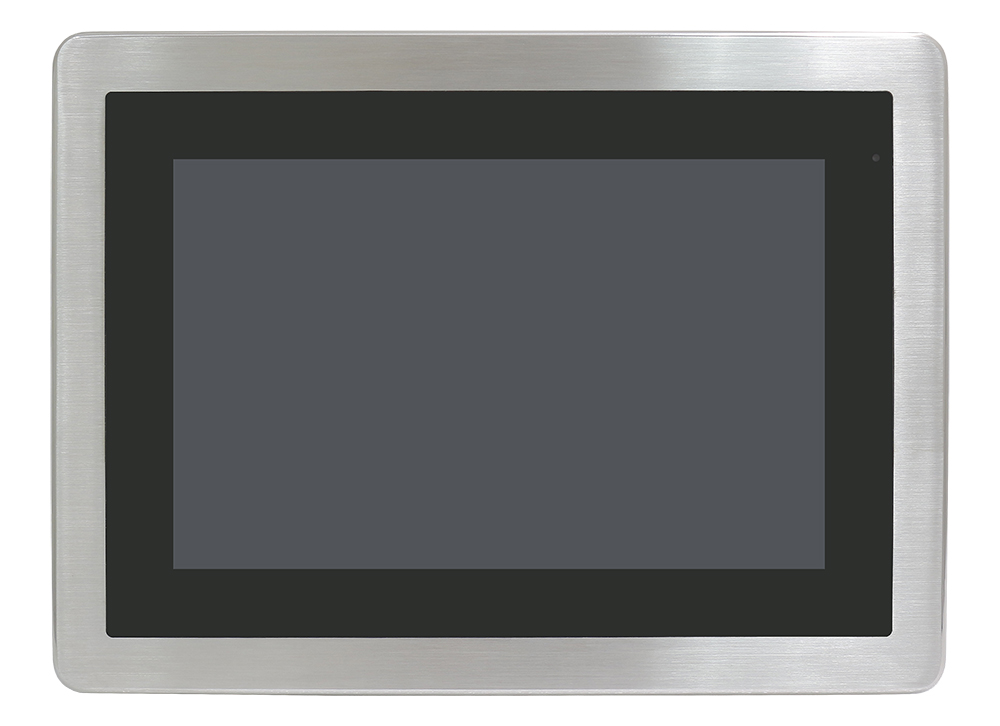

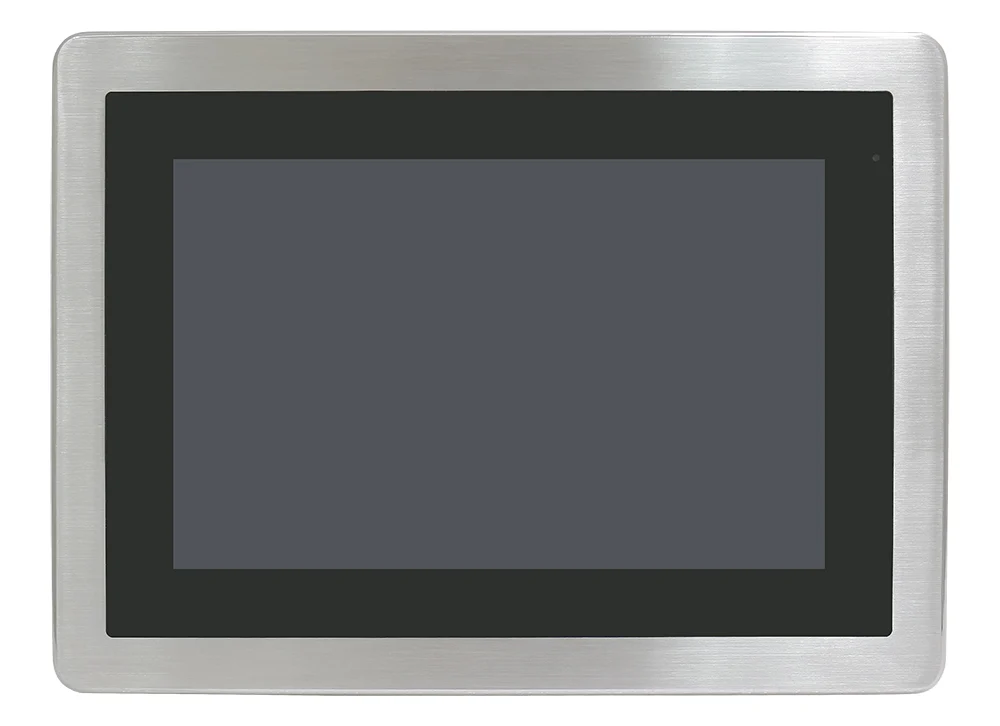

Featuring a 10.1" TFT-LCD screen with a sharp 1280 x 800 resolution, the monitor offers clear and detailed visual information in a streamlined footprint. To ensure effortless readability in direct sunlight or bright factory lighting, an optional 1000nits high-brightness panel is available. Users can tailor the touch interface to their exact operational requirements—resistive touch provides accurate control when using heavy gloves or in environments with heavy liquid splashes, while projected capacitive (PCAP) offers superior surface durability and impact resistance alongside responsive multi-touch performance—or opt for a glass-only display configuration.

Constructed with a smooth true-flat front bezel and a Grade 304 stainless steel enclosure (with Grade 316 available for aggressive chemical exposure), the ViTAM-110 provides outstanding anti-bacterial and anti-corrosive performance. Its fully sealed IP66/IP69K rating shields internal components against high-pressure, high-temperature washdowns, caustic cleaning agents, and airborne particulates. This design drastically reduces maintenance overhead, prevents debris accumulation, and maintains strict sanitary compliance, supported by a side-edge touch on/off button that allows safe screen wiping without interrupting operations.

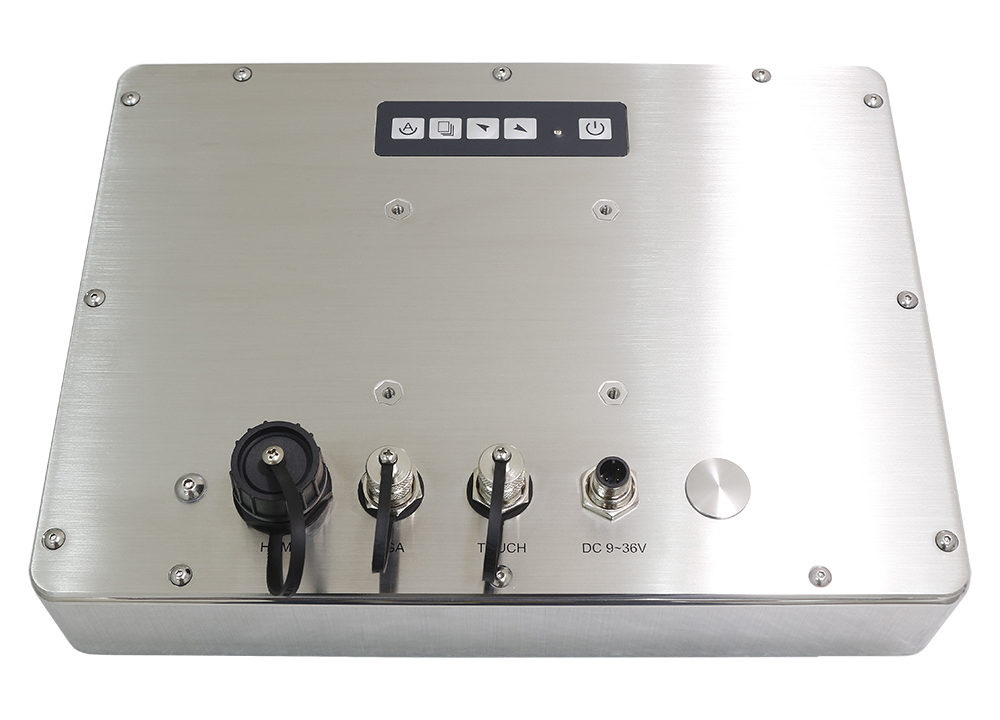

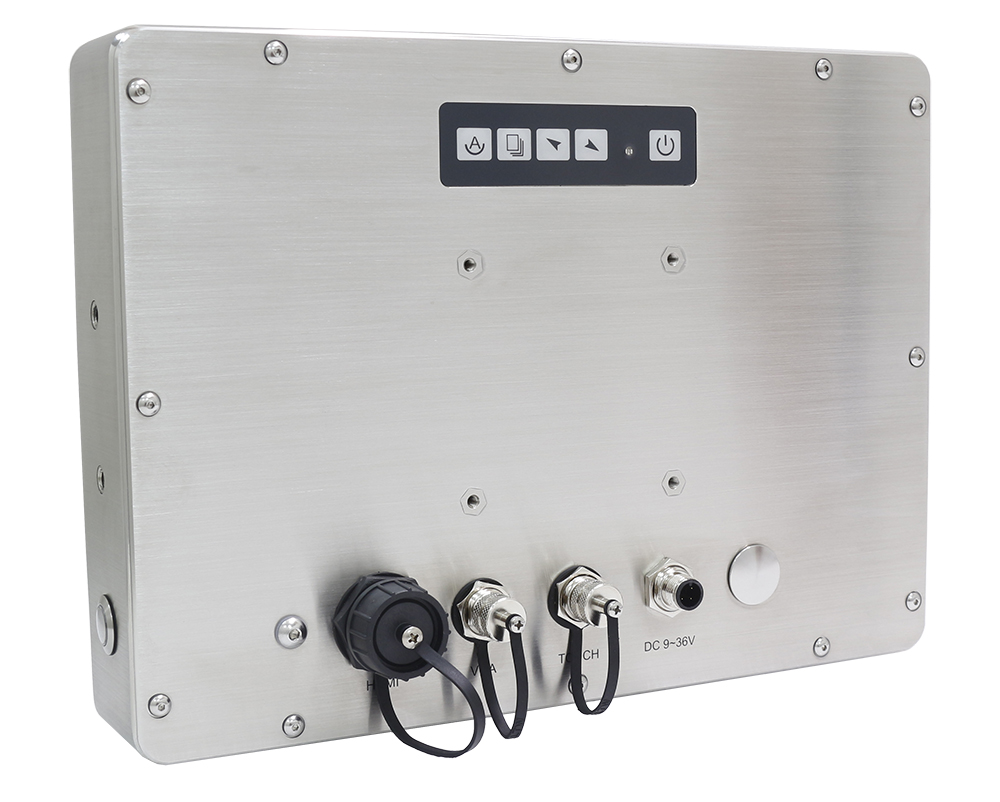

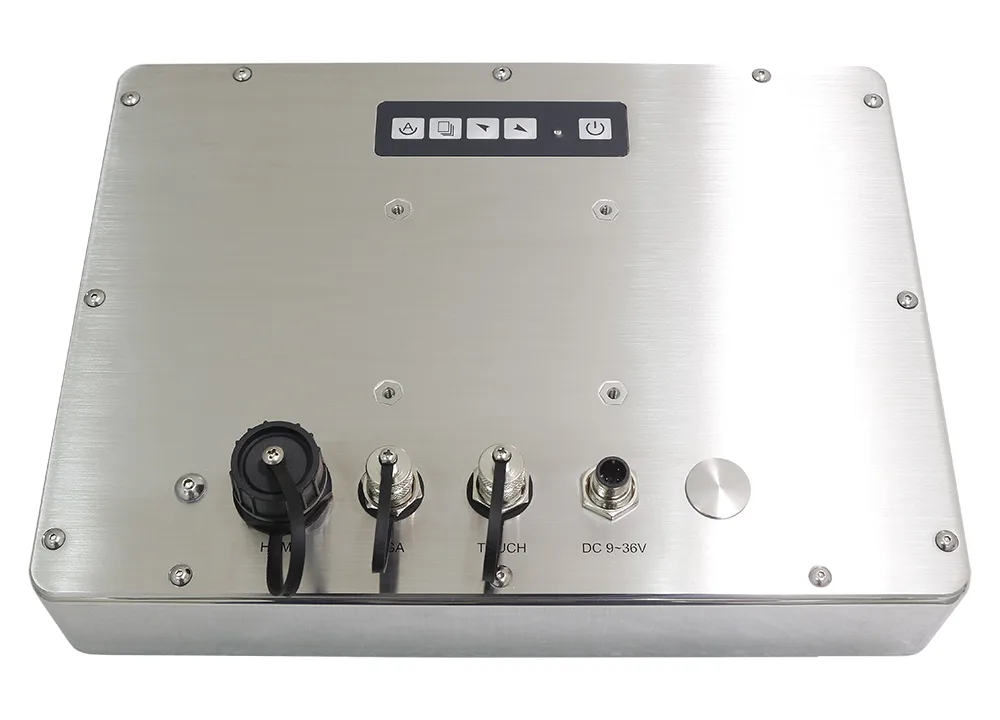

Connectivity is handled via industrial-grade M12 waterproof connectors, ensuring ingress-proof signal and power connections. The I/O layout includes M12 VGA, waterproof HDMI, and M12 USB 2.0, complete with tethered protective covers to safeguard unused ports. Rear-facing membrane OSD controls allow convenient system configuration, and an optional 2W IP65 internal speaker delivers reliable audible notifications. The display supports compact VESA 75 x 75 mm mounting as well as flexible yoke mounting configurations.

Designed to operate reliably under harsh electrical and environmental fluctuations, the monitor supports a wide-range 9~36V DC power input and an extended operating temperature threshold of -20°C to 60°C. Offering maximum durability within a compact, ergonomic frame, the ViTAM-110 delivers long-term performance stability in rugged processing setups. Take a look at the data sheet or request a quote to learn more.

Other Screen Sizes In This Series:

Key Features:

• 10.1" TFT-LCD display with 1280 x 800 resolution
• True-flat front bezel with Grade 304 stainless steel enclosure (Grade 316 optional)
• Fully sealed IP66/IP69K ingress protection
• Touch screen options: Projected Capacitive (PCAP), Resistive Touch, or Glass (non-touch)
• Dedicated side-edge touch on/off button for safe, hygienic wipe-down cleaning
• Optional 1000nits high-brightness panel for enhanced ambient visibility
• Robust M12 waterproof I/O connectors: VGA, HDMI, USB 2.0, and DC power with tethered caps
• Rear-mounted membrane OSD controls
• Wide-range 9~36V DC power input
• Wide operating temperature range: -20°C to 60°C (standard 0°C to 50°C)
• Flexible mounting options: VESA 75 x 75 mm and optional Yoke mount
