ViTAM-124 Series

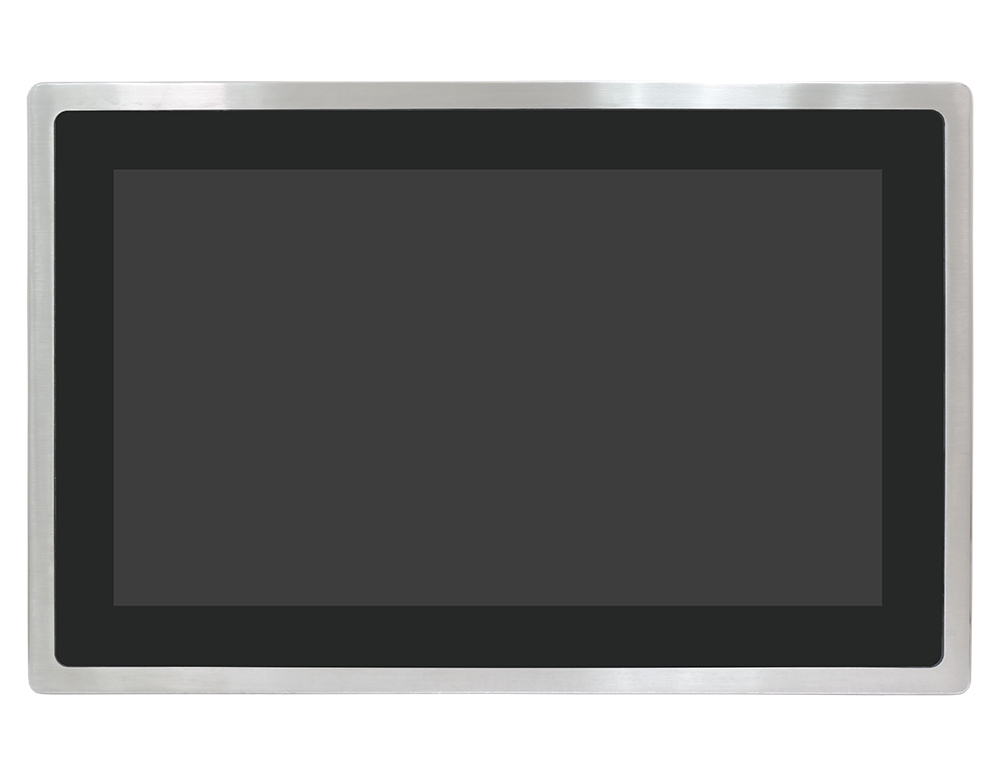

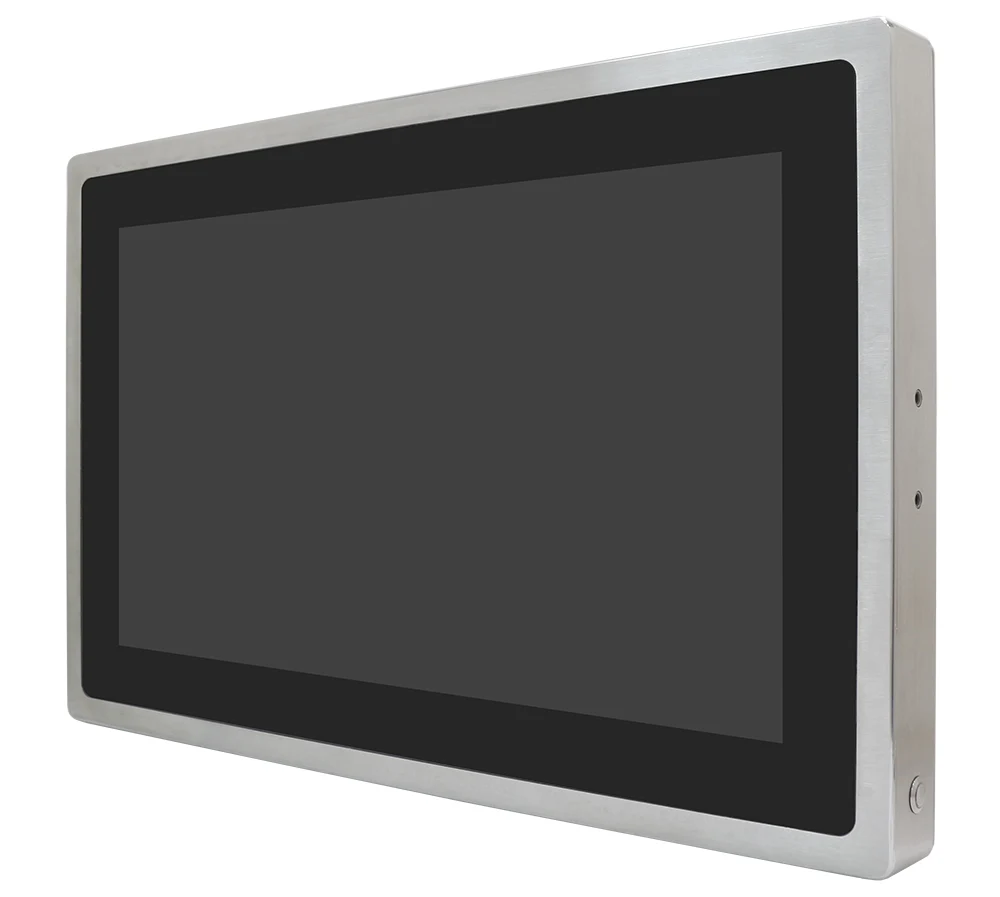

The ViTAM-124 is a 23.8" fully sealed stainless steel industrial monitor built to deliver an expansive, highly visible display solution for stringent industrial and processing environments. Designed to provide a modern, large-format display interface without sacrificing ruggedness, this monitor excels across a variety of industrial applications, including food and beverage processing, pharmaceutical cleanrooms, chemical plants, and automated production lines where strict hygiene and comprehensive control visualisation are required.

Featuring a large 23.8" widescreen TFT-LCD panel with a Full HD 1920 x 1080 resolution, the monitor ensures exceptional clarity when displaying complex graphical user interfaces, multi-channel camera feeds, or detailed SCADA dashboards. To guarantee optimal screen legibility under high ambient light or reflective glare, an optional 1000nits high-brightness screen is available. Operators can select projected capacitive (PCAP) touch for smooth, multi-touch control and superior surface durability, or opt for a glass-only non-touch configuration for display-only tasks.

Constructed with a smooth true-flat front bezel and a Grade 304 stainless steel chassis—with Grade 316 available as an option for demanding chemical environments—the ViTAM-124 delivers superior anti-bacterial and anti-corrosive performance. Its complete IP66/IP69K rating guarantees total protection against high-pressure, high-temperature washdowns, intensive sanitisation procedures, and particulate ingress. This fully sealed, seam-free design eliminates dirt traps, reduces maintenance overhead, and supports strict sanitary compliance, further enhanced by a side-edge touch on/off button that allows safe screen cleaning during active operations.

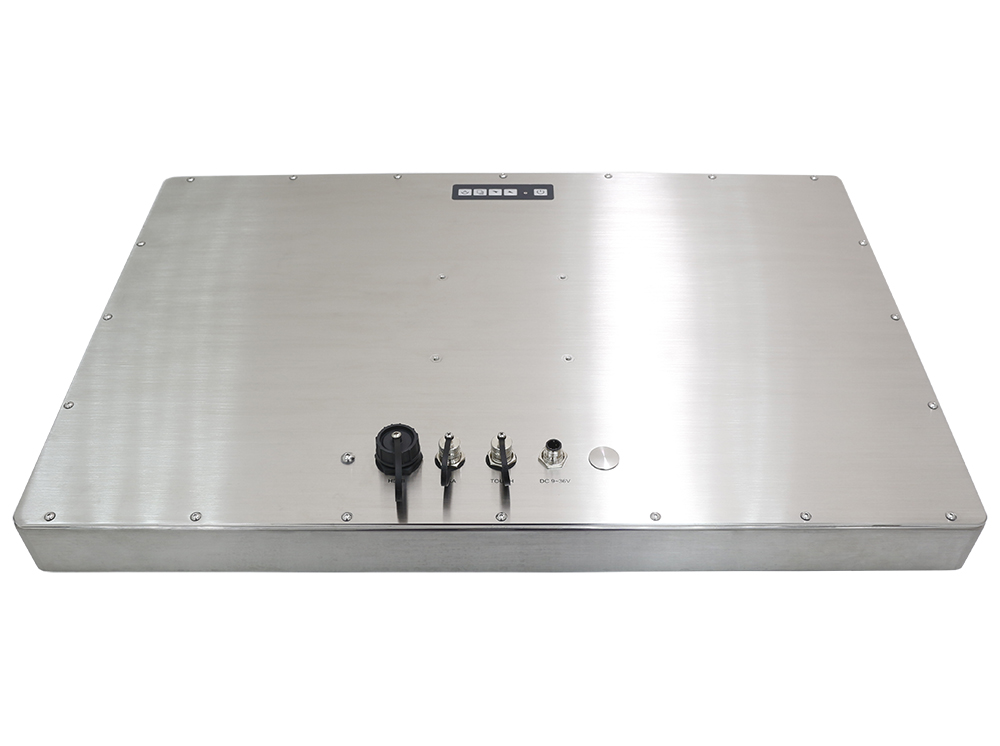

To ensure watertight integrity across all connections, the ViTAM-124 utilizes heavy-duty M12 waterproof connectors, including M12 VGA, waterproof HDMI, and M12 USB 2.0 with tethered protective covers. Membrane OSD buttons located on the rear allow effortless system menu adjustments, while an optional integrated 2W IP65 speaker supplies clear acoustic alerts. Mounting is secure and versatile, featuring standard VESA 200 x 100 mm mounting points alongside an optional ergonomic yoke mount kit.

Engineered to operate reliably under varying conditions, the display supports a wide-range 9~36V DC power input and operates across a standard 0°C to 50°C temperature range. Combining a generous Full HD display footprint with ultra-rugged hygienic protection, the ViTAM-124 delivers long-term performance peace of mind in high-stress processing facilities. Take a look at the data sheet or request a quote to learn more.

Other Screen Sizes In This Series:

Key Features:

• 23.8" TFT-LCD display with 1920 x 1080 resolution
• True-flat front bezel with Grade 304 stainless steel enclosure (Grade 316 optional)
• Fully sealed IP66/IP69K ingress protection
• Touch screen options: Projected Capacitive (PCAP) or Glass (non-touch)
• Dedicated side-edge touch on/off button for safe, hygienic wipe-down cleaning
• Optional 1000nits high-brightness panel for enhanced ambient visibility
• Robust M12 waterproof I/O connectors: VGA, HDMI, USB 2.0, and DC power with tethered caps
• Rear-mounted membrane OSD controls
• Wide-range 9~36V DC power input
• Wide operating temperature range: 0~50°C
• Flexible mounting options: VESA 200 x 100 mm and optional Yoke mount
