ViTAM-112 Series

The ViTAM-112 is a versatile 12.1" fully sealed stainless steel industrial monitor engineered to maintain continuous operational integrity in harsh processing environments. Balancing a medium-format display with industrial-grade physical protection, this unit provides an ideal control and visualisation solution across a range of industrial applications, including food and beverage production, pharmaceutical facilities, chemical processing plants, and outdoor industrial kiosks where sanitation and durability are paramount.

Featuring a 12.1" TFT-LCD screen, the monitor comes standard with an 800 x 600 resolution alongside an optional 1024 x 768 XGA display upgrade for sharper visual clarity. An optional 1000nits high-brightness panel ensures crystal-clear screen visibility under high ambient lighting or direct sunlight. Operators can choose between resistive touch for precise input when wearing heavy work gloves or in wet conditions, projected capacitive (PCAP) touch for robust impact resistance and responsive multi-touch control, or a glass-only panel for display-only applications.

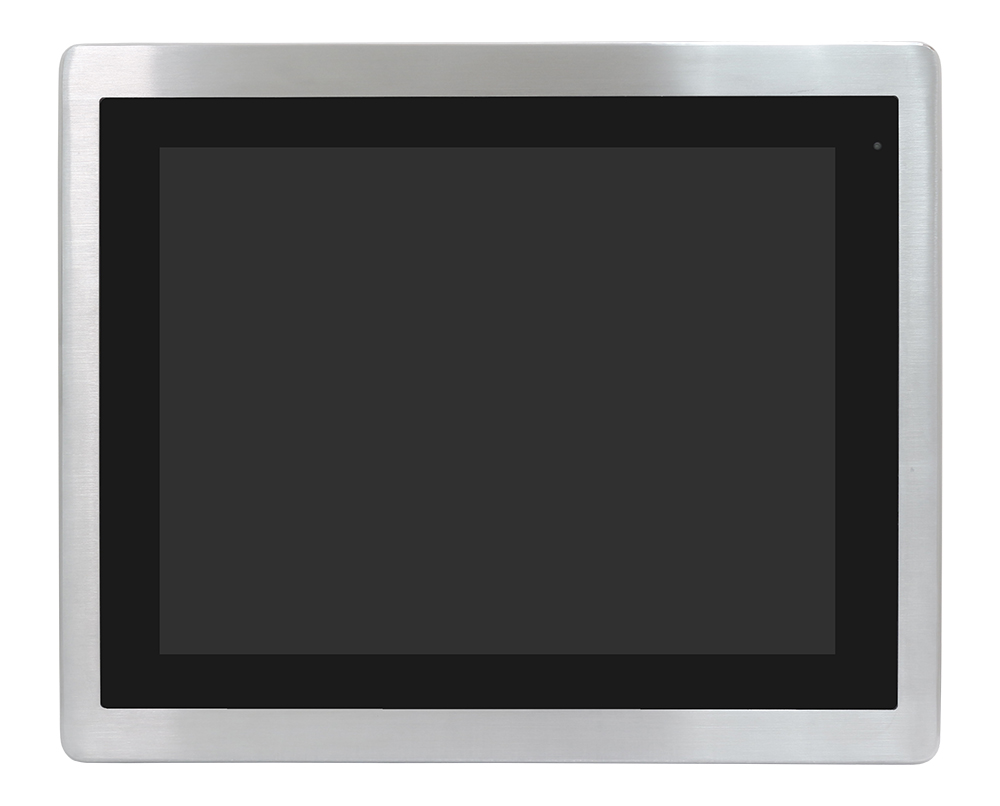

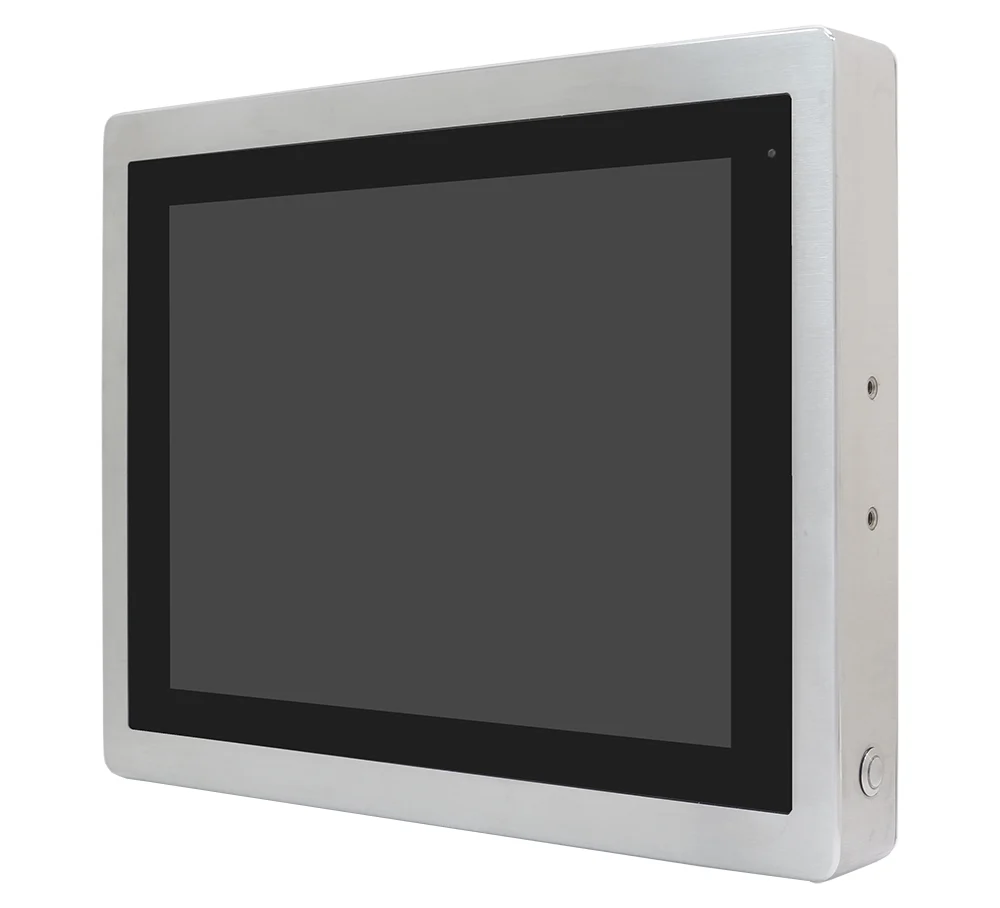

Built with a seamless true-flat front bezel and a Grade 304 stainless steel enclosure—with Grade 316 available for environments exposed to harsh chemicals—the ViTAM-112 delivers robust anti-bacterial and anti-corrosive protection. Its complete IP66/IP69K ingress rating safeguards all internal components against high-pressure, high-temperature washdowns, harsh sanitisation routines, and heavy particulate exposure. This fully sealed construction eliminates dirt-collecting seams, lowers overall maintenance overhead, and supports stringent hygiene compliance, enhanced by a side-edge touch on/off button that enables quick, safe cleaning without turning off the system.

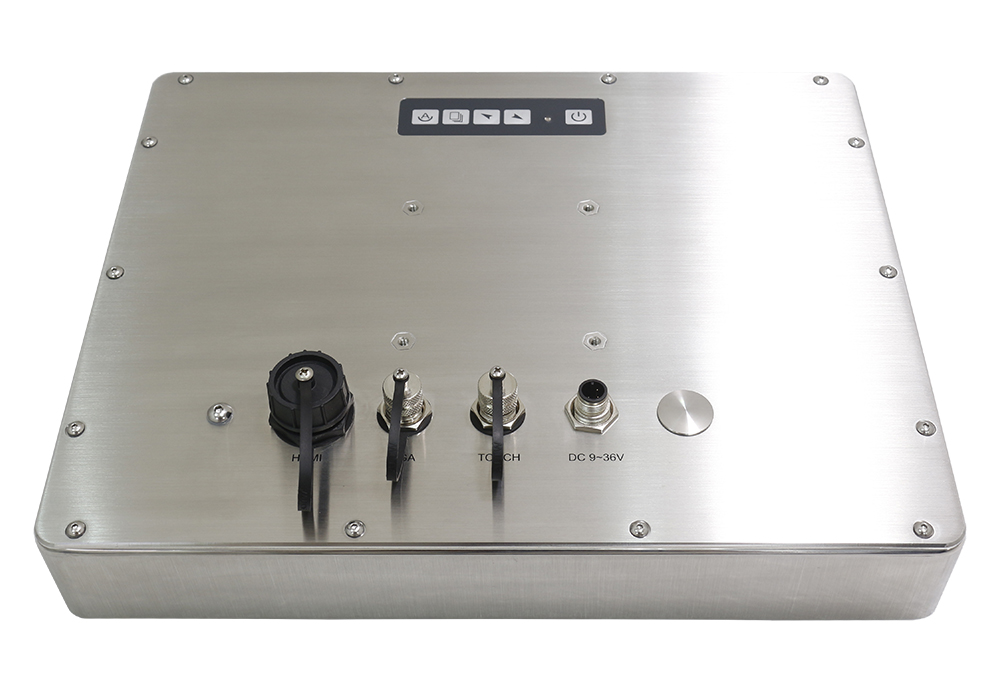

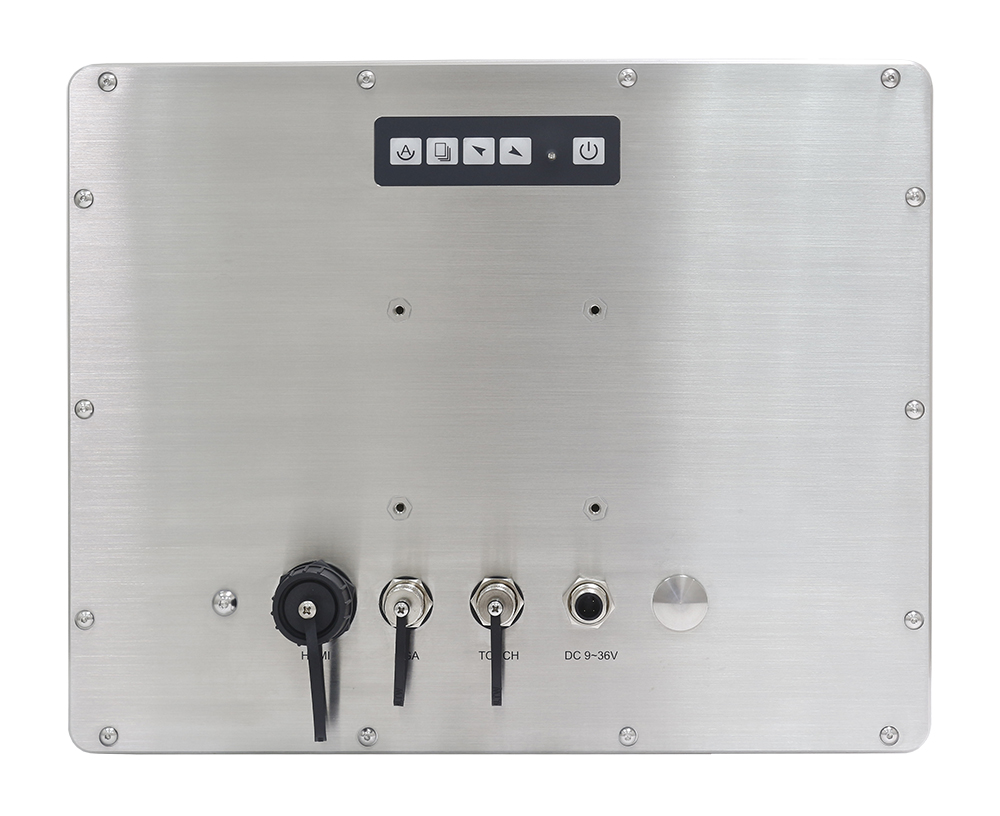

To ensure watertight connectivity, the ViTAM-112 utilizes industrial M12 waterproof connectors across all ports, including M12 VGA, waterproof HDMI, and M12 USB 2.0 equipped with tethered protective covers. Rear-mounted membrane OSD buttons allow easy display adjustments, while an optional integrated 2W IP65 speaker delivers clear acoustic alerts. Mounting is straightforward and adaptable, featuring standard VESA 75 x 75 mm mounting pattern support alongside an optional ergonomic yoke mount kit.

Engineered for extreme operating conditions, the monitor supports a wide 9~36V DC power supply and offers an extended operating temperature range from -20°C to 60°C. Combining long-term durability with ergonomic operation, the ViTAM-112 delivers a reliable interface solution for demanding industrial facilities. Take a look at the data sheet or request a quote to learn more.

Other Screen Sizes In This Series:

Key Features:

• 12.1" TFT-LCD display with 800 x 600 (1024 x 768 optional) resolution
• True-flat front bezel with Grade 304 stainless steel enclosure (Grade 316 optional)
• Fully sealed IP66/IP69K ingress protection
• Touch screen options: Projected Capacitive (PCAP), Resistive Touch, or Glass (non-touch)
• Dedicated side-edge touch on/off button for safe, hygienic wipe-down cleaning
• Optional 1000nits high-brightness panel for enhanced ambient visibility
• Robust M12 waterproof I/O connectors: VGA, HDMI, USB 2.0, and DC power with tethered caps
• Rear-mounted membrane OSD controls
• Wide-range 9~36V DC power input
• Wide operating temperature range: -20°C to 60°C (standard 0°C to 50°C)
• Flexible mounting options: VESA 75 x 75 mm and optional Yoke mount
