The FABS-916B features a powerful built-in Intel 8th generation energy efficient core i3/i5 processor, as well as a 260-pin SO-DIMM DDR4 slot, offering up to 32GB of RAM. It has a wide range of rugged/hygienic features and customisable options. These features make it ideal for a wide variety of applications where hygiene is a requirement, including food and beverage processing & manufacturing, pharmaceutical manufacturing & packaging, biotechnology and cosmetics manufacturing.

The FABS-916B is housed in a fanless aluminium chassis with a 304 or optional 316 grade stainless-steel bezel that provides IP66/IP69K front panel water and dust protection. The stainless-steel front bezel provides anti-corrosion, anti-bacteria, and anti-oxidation protection, making it durable and rugged, even when it is exposed to harsh conditions. The whole series is CE/FCC Class A certified, and the P Model has been optimised to meet the hygienic design requirements of DIN EN 1672-2, a high standard for food and beverage processing.

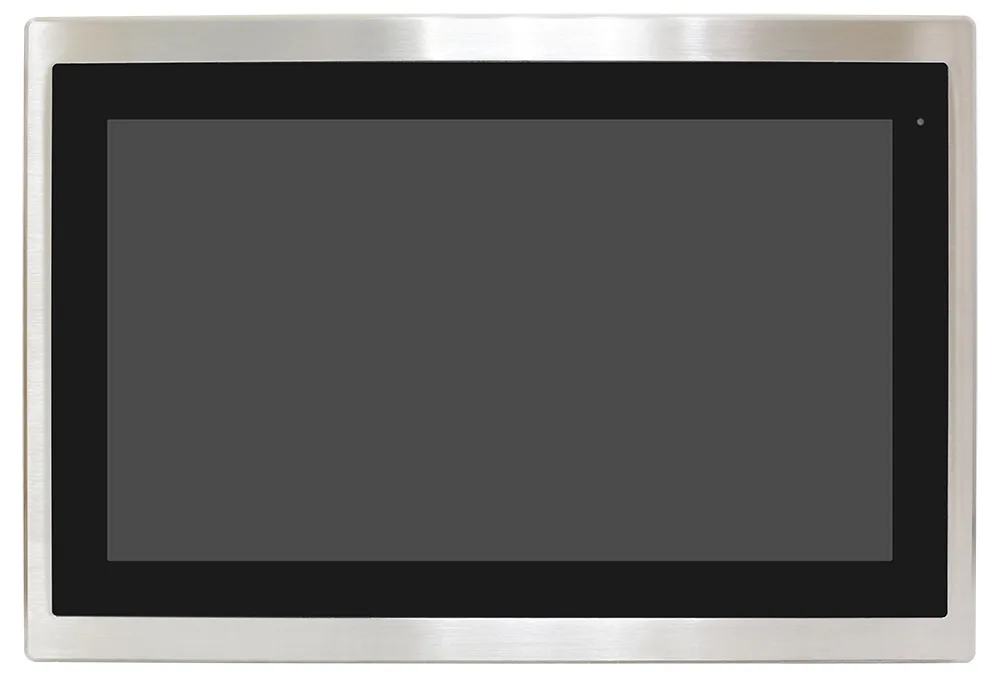

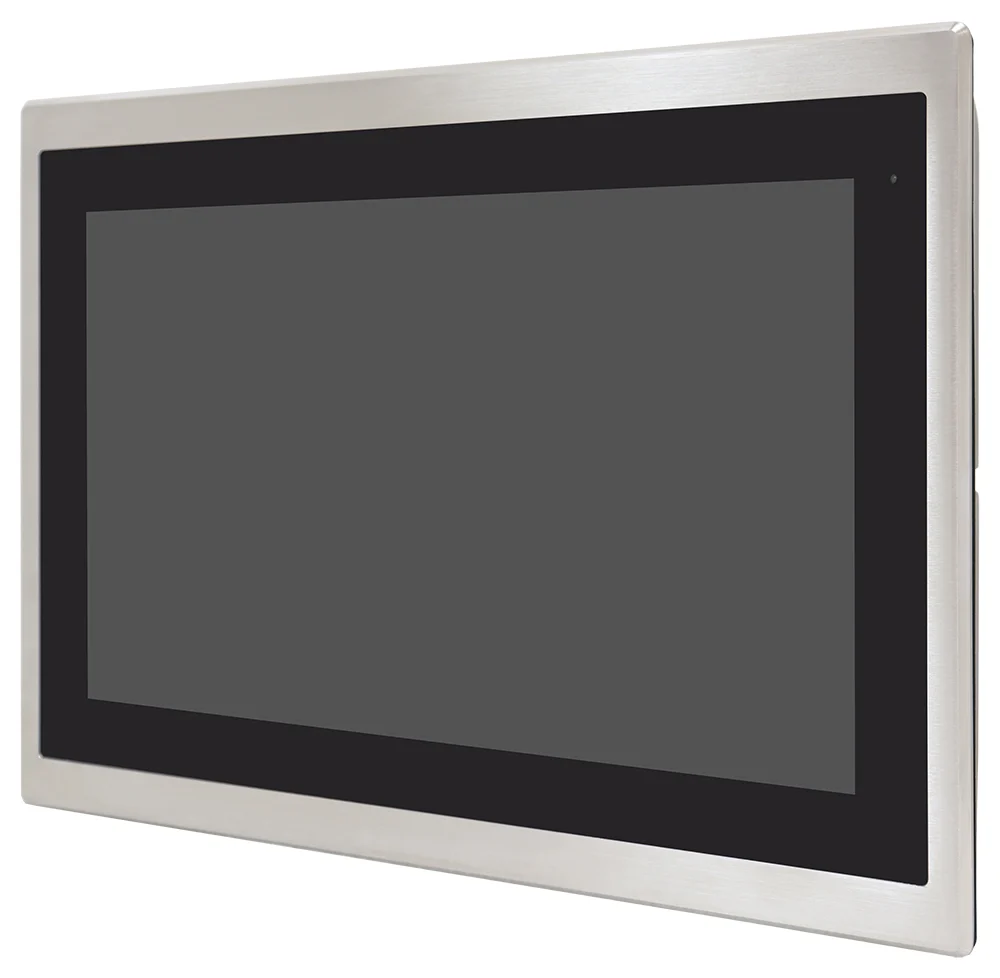

It features a 15.6” TFT-LCD display with 1366 x 768 resolution (optional 1920 x 1080). The FABS-916B also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, that features multi-touch support, and an anti-scratch surface which helps to improve usability, while also providing the screen with tough protection. Optional high brightness features also help to make the screen visible in increased sunlight areas, making it ideal for a range of applications and environments, including outdoor.

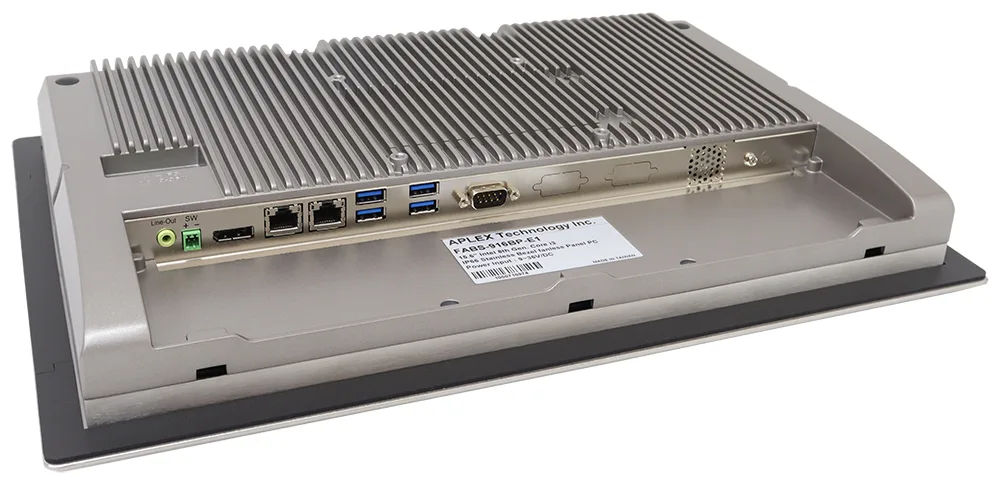

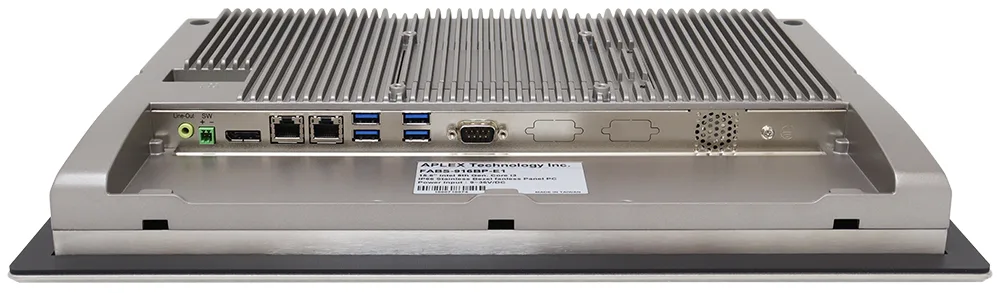

The FABS-916B includes: 2 x COM, 2 x GbE LAN ports, and 4 x USB3.0 ports as well as support for internal Mini-PCIe expansion modules supporting 3G/4G or WiFi/BT. Furthermore, it also has a DisplayPort output which enables users to connect an additional monitor when required. Additional COM, LAN and USB ports can also be included. The FABS-916B supports Windows 10 IoT and Windows 11, helping to future-proof any applications that may be required.

The FABS-916B offers the optional smart battery backup feature, providing an emergency backup power source to protect data and the system from unexpected power outages. It also supports DC 9~36V power input and an operating temperature range of 0°C ~50°C. The chassis is only 58mm deep, making it ideal for applications with limited room. Support for both Panel and VESA mounting also makes the FABS Series convenient to install, and allows the system to be ergonomically positioned for operator convenience.

The overall rugged and customisable design of the FABS-916B offers 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

Key Features:

  • 15.6" TFT-LCD Projected Capacitive / Resistive Touch
  • Flat Front Panel IP66/IP69K
  • DDR4 SO-DIMM Socket
  • Stainless steel front bezel design
  • Wide range DC 9~36V power input
  • Intel Gen 8 Core i3/i5 processor

Data Sheets (PDF)

Product Downloads PDF Icon

FABS-916BRP(H) Data Sheet

Part Numbers

Details

FABS-916BP

15.6inch 1366x768 fanless PanelPC, Stainless Steel bezel, i3-8145UE 2.2GHz processor, proj cap touchscreen, 4 USB3.0, 2 Gbe, 2 ser, audio, DP, M.2 ssd, 1xMini-PCIe, 9-36VDC input

FABS-916BR

15.6inch 1366x768 fanless PanelPC, Stainless Steel bezel, i3-8145UE 2.2GHz processor, resistive touchscreen, 4 USB3.0, 2 Gbe, 2 ser, audio, DP, M.2 ssd, 1xMini-PCIe, 9-36VDC input

Processor Options

Details

FABS-9XXB_I3_I5_UP

Upgrade from i3-8145UE 2.2GHz 2C/4T to i5-8365UE 1.6GHz 4C/8T CPU

Other Options

Details

UPG-S304_S316L-16

Upgrade 15.6inch Stainless steel 304 front bezel to stainless steel 316L, FABS-x16 series
