FABS-917B Series

The FABS-917B features a powerful built-in Intel 8th generation energy efficient core i3/i5 processor, as well as a 260-pin SO-DIMM DDR4 slot, offering up to 32GB of RAM. It has a wide range of rugged/hygienic features and customisable options. These features make it ideal for a wide variety of applications where hygiene is a requirement, including food and beverage processing & manufacturing, pharmaceutical manufacturing & packaging, biotechnology and cosmetics manufacturing.

The FABS-917B is housed in a fanless aluminium chassis with a 304 or optional 316 grade stainless-steel bezel that provides IP66/IP69K front panel water and dust protection. The stainless-steel front bezel provides anti-corrosion, anti-bacteria, and anti-oxidation protection, making it durable and rugged, even when it is exposed to harsh conditions. The whole series is CE/FCC Class A certified, and the P Model has been optimised to meet the hygienic design requirements of DIN EN 1672-2, a high standard for food and beverage processing.

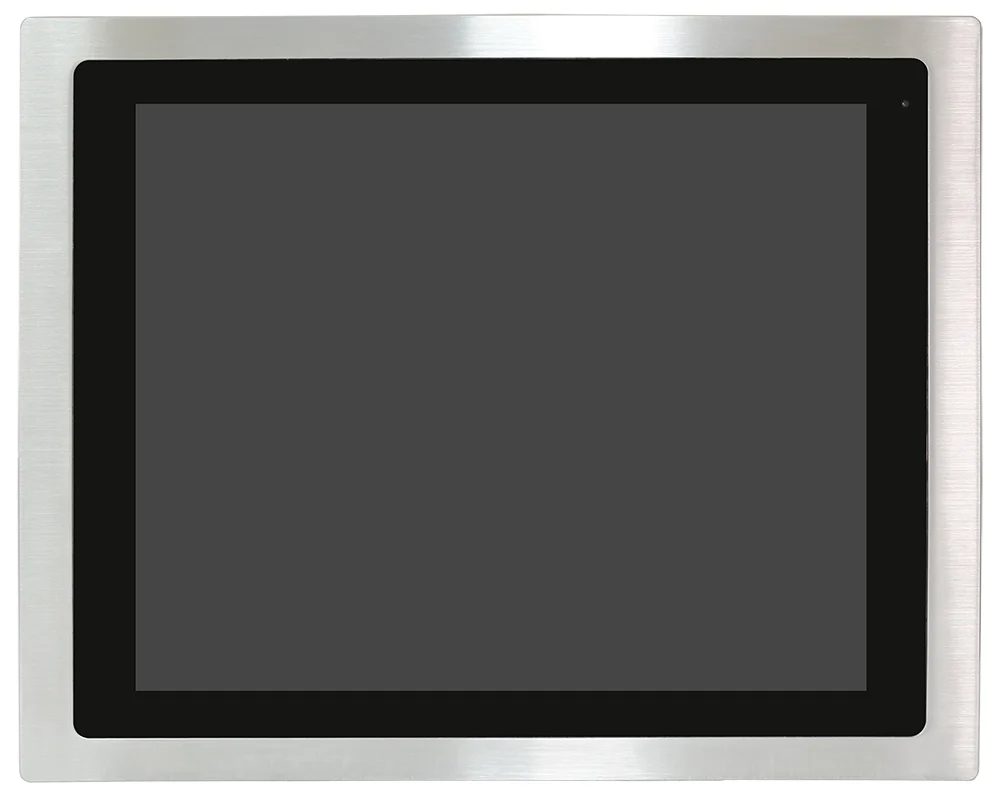

It features a 17” TFT-LCD display with 1280 x 1024 resolution. The FABS-917B also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, that features multi-touch support, and an anti-scratch surface which helps to improve usability, while also providing the screen with tough protection. Optional high brightness features also help to make the screen visible in increased sunlight areas, making it ideal for a range of applications and environments, including outdoor.

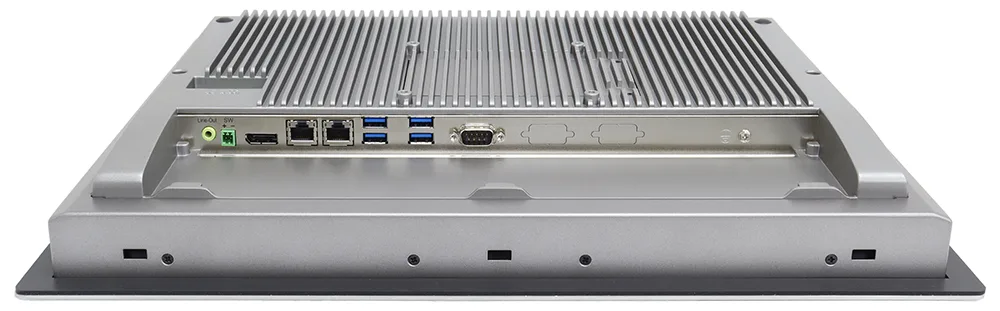

The FABS-917B includes: 2 x COM, 2 x GbE LAN ports, and 4 x USB3.0 ports as well as support for internal Mini-PCIe expansion modules supporting 3G/4G or WiFi/BT. Furthermore, it also has a DisplayPort output which enables users to connect an additional monitor when required. Additional COM, LAN and USB ports can also be included. The FABS-917B supports Windows 10 IoT and Windows 11 IoT, helping to future-proof any applications that may be required.

The FABS-917B offers the optional smart battery backup feature, providing an emergency backup power source to protect data and the system from unexpected power outages. It also supports DC 9~36V power input and an operating temperature range of 0°C~50°C (-20°C~60°C optional). The chassis is only 64mm deep, making it ideal for applications with limited room. Support for both Panel and VESA mounting also makes the FABS Series convenient to install, and allows the system to be ergonomically positioned for operator convenience.

The overall rugged and customisable design of the FABS-917B offers 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

Key Features:

• 17" Food grade industrial Panel PC
• 8th Gen. Intel Core i3/i5 processor
• Projected Capacitive / Resistive Touch options
• Flat Front Panel IP66/IP69K
• 1280 x 1024 resolution TFT-LCD
• DDR4 SO-DIMM socket, up to 32 Gb
• SUS304 Stainless Steel (SUS316L optional)
• DC 9~36V Wide Range Power Input
• Supports TPM 2.0 Hardware Security
