ViTAM-117 Series

The ViTAM-117 is a 17" fully sealed stainless steel industrial monitor engineered to provide reliable performance in environments where cleanliness, durability, and operational longevity are critical. Serving as a robust control interface, this display is ideally suited for a range of industrial applications, including food and beverage processing, pharmaceutical manufacturing, cleanroom installations, and heavy industrial automation where equipment is regularly exposed to moisture and harsh washdowns.

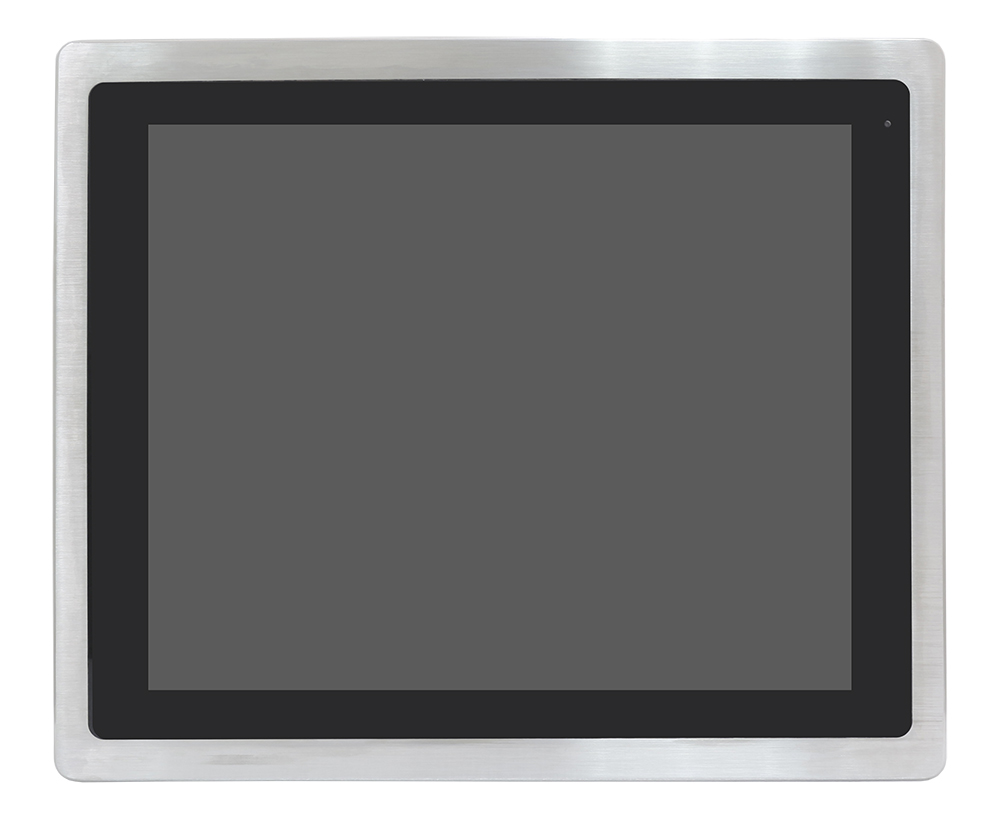

Featuring a 17" TFT-LCD screen with a standard 1280 x 1024 resolution, the monitor provides clear, sharp visual output for complex control interfaces. An optional 1000nits high-brightness display is available to maintain excellent screen visibility under high ambient light conditions or direct sunlight. Operators can choose from flexible touch screen configurations to suit their operational needs: resistive touch provides reliable response when using heavy industrial gloves or operating in wet environments, while projected capacitive (PCAP) touch offers enhanced impact resistance, surface durability, and intuitive multi-touch functionality. A protective glass-only option is also available for display-only applications.

Constructed with a smooth true-flat front bezel and a Grade 304 stainless steel housing—with Grade 316 available for environments requiring superior chemical resistance—the ViTAM-117 offers outstanding anti-bacterial and anti-corrosive protection. Its complete IP66/IP69K ingress protection guarantees total defense against high-pressure, high-temperature water jetting, harsh sanitisation routines, and dust ingress. This fully sealed chassis eliminates crevice points where contaminants collect, helping lower ongoing maintenance demands and streamline sanitation procedures. A side-edge touch on/off button further simplifies maintenance, enabling quick screen wipe-downs without interrupting system operation.

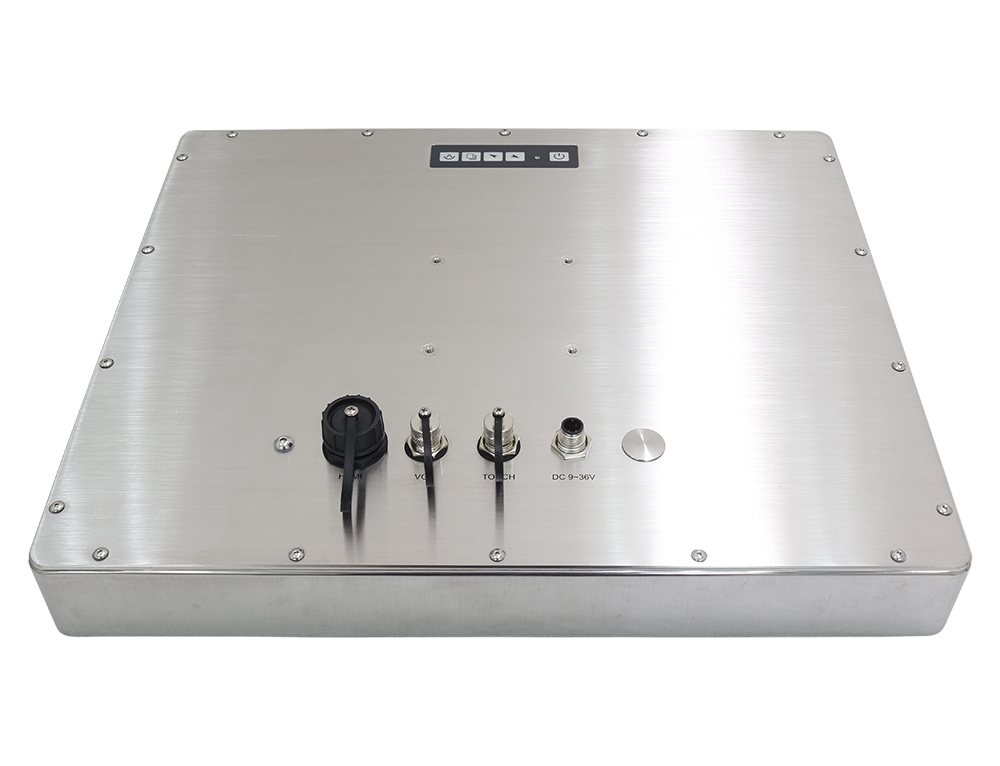

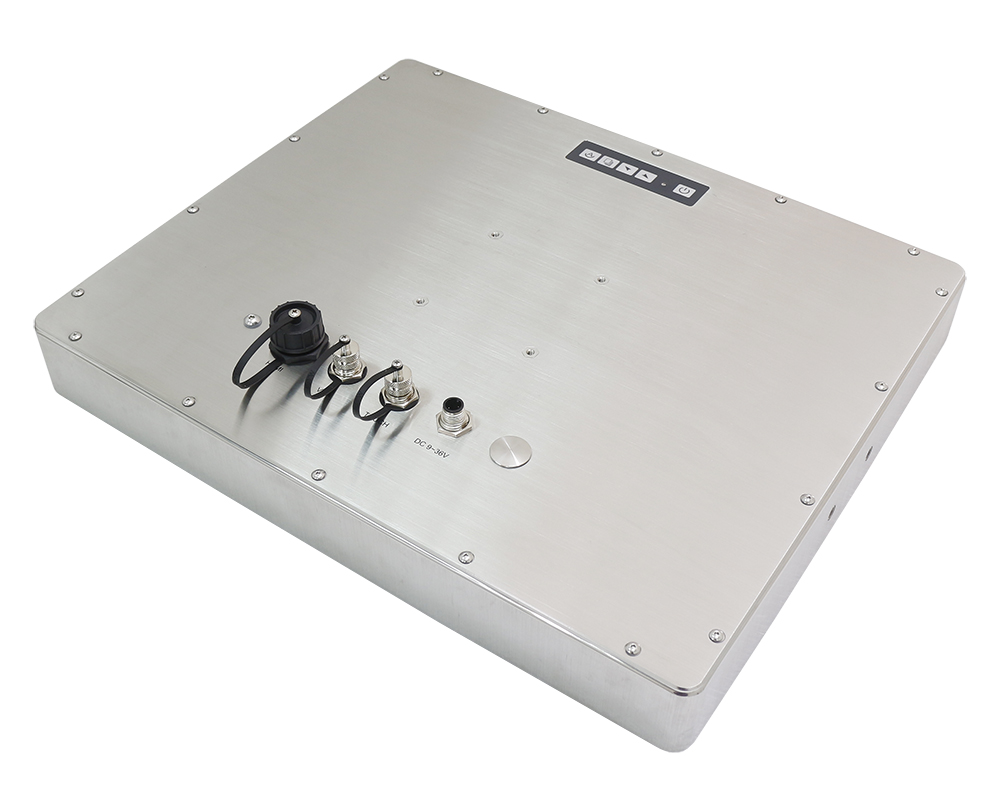

To ensure watertight connectivity, the ViTAM-117 incorporates industrial-grade M12 waterproof connectors across all I/O interfaces, including M12 VGA, waterproof HDMI, and M12 USB 2.0 with tethered protective caps. System adjustments are easily managed using membrane OSD controls located on the rear panel, while an optional integrated 2W IP65 speaker supplies clear acoustic alerts. Mounting is straightforward and adaptable, supporting standard space-saving VESA 75 x 75 mm mounting along with an optional ergonomic yoke mount kit.

Engineered to handle power fluctuations and extreme thermal conditions, the monitor supports a wide 9~36V DC power input and features an extended operating temperature range of -20°C to 60°C. Combining rugged construction with streamlined usability, the ViTAM-117 offers long-term reliability for challenging industrial environments. Take a look at the data sheet or request a quote to learn more.

Other Screen Sizes In This Series:

Key Features:

• 17" TFT-LCD display with 1280 x 1024 resolution
• True-flat front bezel with Grade 304 stainless steel enclosure (Grade 316 optional)
• Fully sealed IP66/IP69K ingress protection
• Touch screen options: Projected Capacitive (PCAP), Resistive Touch, or Glass (non-touch)
• Dedicated side-edge touch on/off button for safe, hygienic wipe-down cleaning
• Optional 1000nits high-brightness panel for enhanced ambient visibility
• Robust M12 waterproof I/O connectors: VGA, HDMI, USB 2.0, and DC power with tethered caps
• Rear-mounted membrane OSD controls
• Wide-range 9~36V DC power input
• Wide operating temperature range: -20°C to 60°C (standard 0°C to 50°C)
• Flexible mounting options: VESA 75 x 75 mm and optional Yoke mount
