VT-977

The VT-977 is a 15" (1024 x 768 resolution) industrial vehicle mount Panel PC engineered to deliver dependable computing power directly into demanding mobile environments such as warehousing, logistics, and container transport. Driven by an efficient Intel Alder Lake-N97 quad-core processor (up to 3.6GHz), this system provides robust processing capabilities tailored for intense material handling and transport application requirements. To ensure smooth multitasking and ample data capacity, the unit supports up to 16GB of DDR4 memory and up to 2TB of fast M.2 SATA SSD storage, bridging the gap between fixed systems and mobile vehicle fleets.

The industrial-grade 15-inch TFT-LCD display features a standard 4:3 aspect ratio and a high-brightness 1000nits high brightness screen to ensure excellent legibility under direct sunlight and varying cabin lighting conditions. This model features a standard projected capacitive multi-touch screen, which offers a highly scratch-resistant and rugged glass surface designed for long-term durability in high-traffic industrial environments. For further operational efficiency, the front panel features a dedicated numeric and control keypad alongside six user-defined function keys (F1–F6) to facilitate fast data entry.

For flexible connectivity and modern network communication, the unit features a versatile I/O array including four USB 3.0 ports, two USB 2.0 ports, two GbE LAN ports for wired networking, one HDMI port, one DisplayPort (DP++), and one RS-232 serial port via a standard COM1 DB9 connector. Wireless expansion is a core strength of the platform, offering optional integration for cutting-edge Wi-Fi 7, Bluetooth 5.4, and high-speed 4G/5G cellular connectivity. Additionally, an optional multi-constellation GNSS module provides accurate tracking, with all wireless capabilities supported by up to eight external TNC antenna connections. Engineered to withstand intense mechanical stress, the VT-977 is built with a heavy-duty die-cast aluminium enclosure utilising a fanless thermal design. This fully sealed housing achieves an IP66 protection rating to completely isolate internal components against dust and high-pressure water ingress from any direction. Furthermore, the unit complies with strict MIL-STD-810H standards for shock and vibration resistance, and handles extreme environmental conditions with a wide operating temperature range of -30°C~60°C and a flexible 8~36VDC vehicle power input.

The system offers versatile software compatibility with support for Windows 11 Pro, Windows 10 Pro, and Windows IoT Enterprise LTSC operating systems to match your corporate infrastructure. For easy deployment throughout space-constrained driver cabins, the unit supports standardised VESA 75 and VESA 100 mounting patterns for secure attachment to various heavy-duty vehicle arms and brackets. This ruggedised, vehicle-ready computer provides the ideal balance of durability, modern processing power, and extensive communication tools for your mobile operations.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 15" Display & Touch Options: 1024 x 768 resolution, 1000nits high brightness, projected capacitive multi-touch screen
• Next-Gen Processing: Powered by an Intel Alder Lake-N97 quad-core processor
• Memory & Storage: Supports up to 16GB DDR4 RAM and up to 2TB M.2 SATA SSD

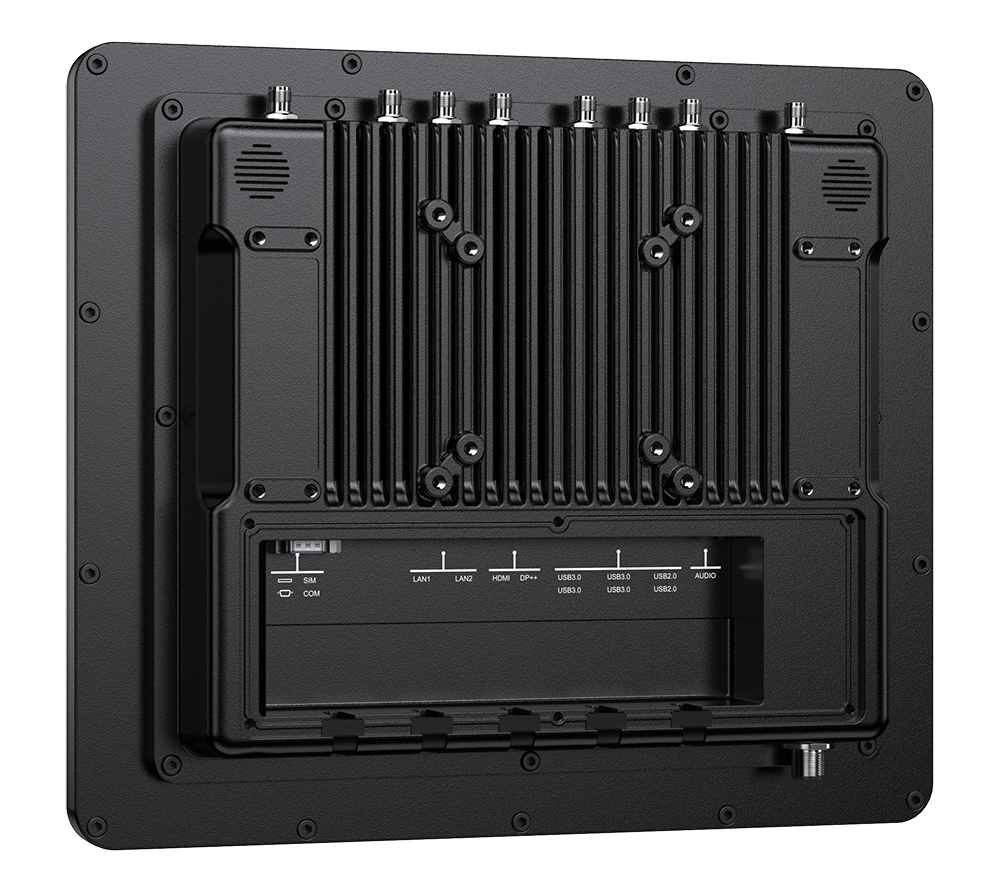

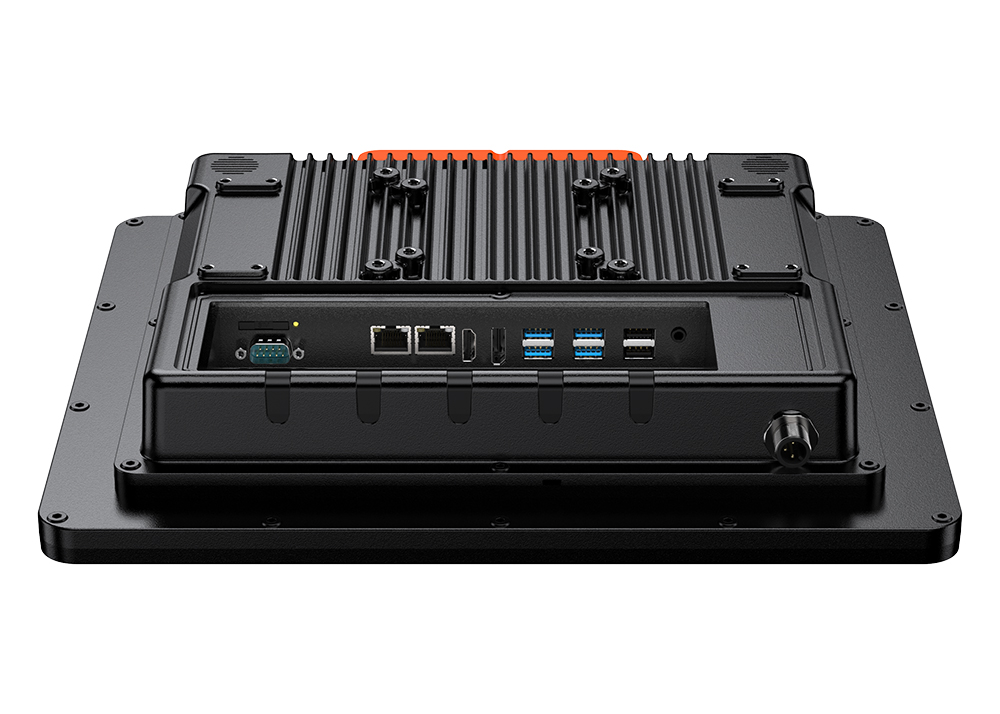

• Industrial I/O & Video Output: Includes 4x USB 3.0, 2x USB 2.0, 2x GbE LAN ports, 1x HDMI, 1x DP++, and 1x RS-232 (COM1 via DB9)
• Advanced Wireless Capabilities: Optional support for Wi-Fi 7, Wi-Fi 6E, Bluetooth 5.4, 4G LTE, 5G, and GNSS (GPS/GLONASS/Galileo/BeiDou) with up to 8x external TNC antenna connectors

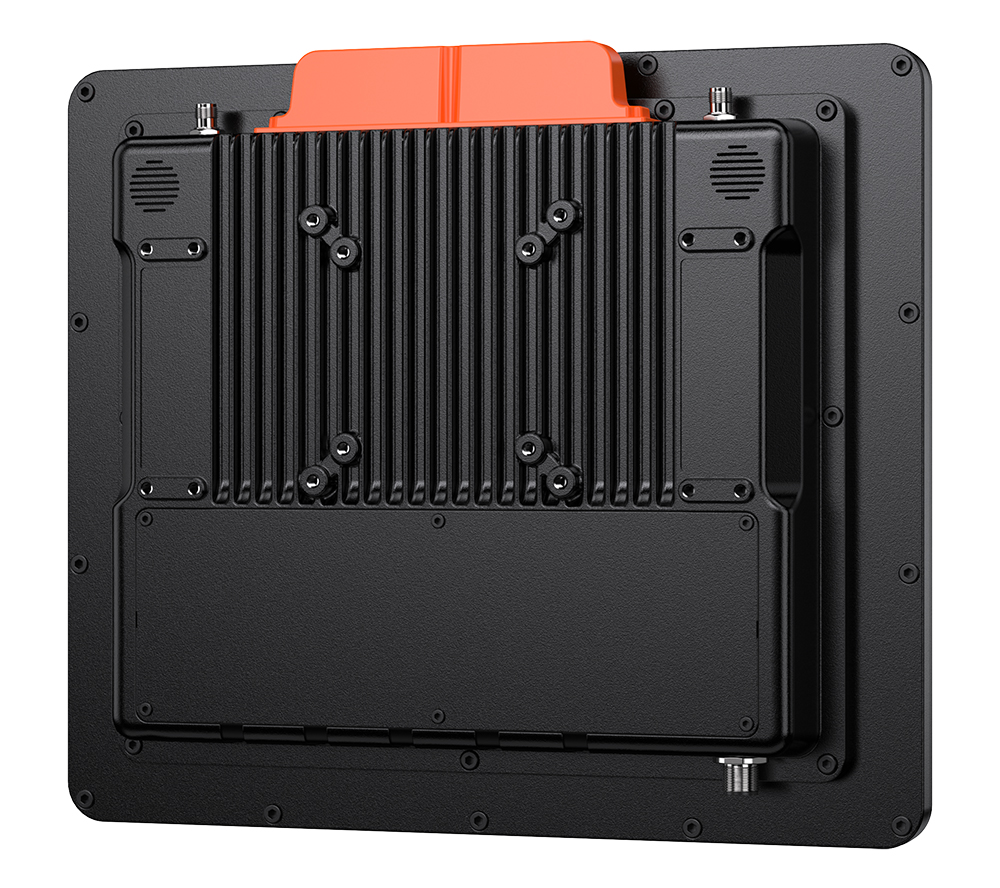

• Rugged Enclosure: Fanless, heavy-duty die-cast aluminium design
• Environmental Protection: IP66-compliant dust and water resistance, and MIL-STD-810H certified for shock and vibration
• Wide Power & Temperature Range: Operates from -30°C~60°C with a wide-range 8~36VDC vehicle power input
• OS Support: Compatible with Windows 11 Pro, Windows 10 Pro, and Windows 10/11 IoT Enterprise LTSC
• Flexible Mounting: VESA 75 & VESA 100 mounting patterns

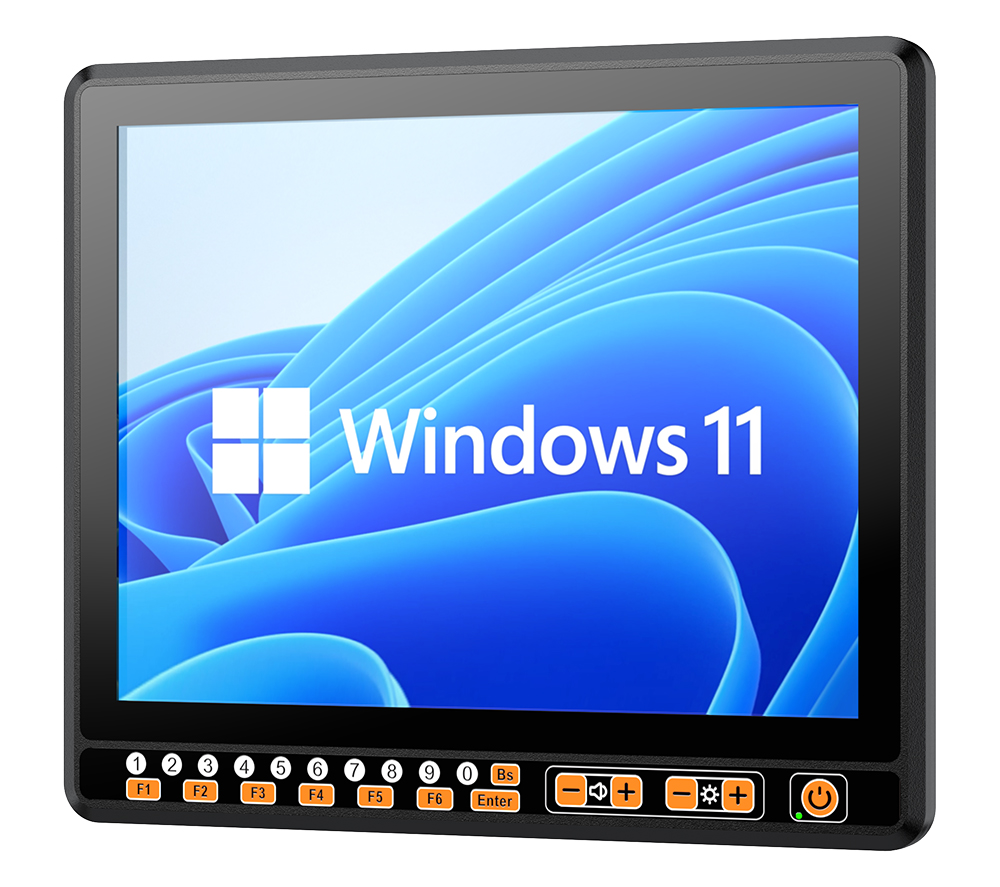

• Integrated Front Keypad: Built-in power, brightness, and volume controls, a full 0-9 numeric keypad, and six user-defined function keys (F1–F6)
