FABS-819B Series

Product Overview

19" Food Grade Industrial Panel PC, Intel Celeron J6412 Processor, IP66/69K Stainless Steel Front Bezel, Windows 10/11 Support

Features Include:

  • 19" food grade Industrial Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66/IP69K Front Bezel
  • View More

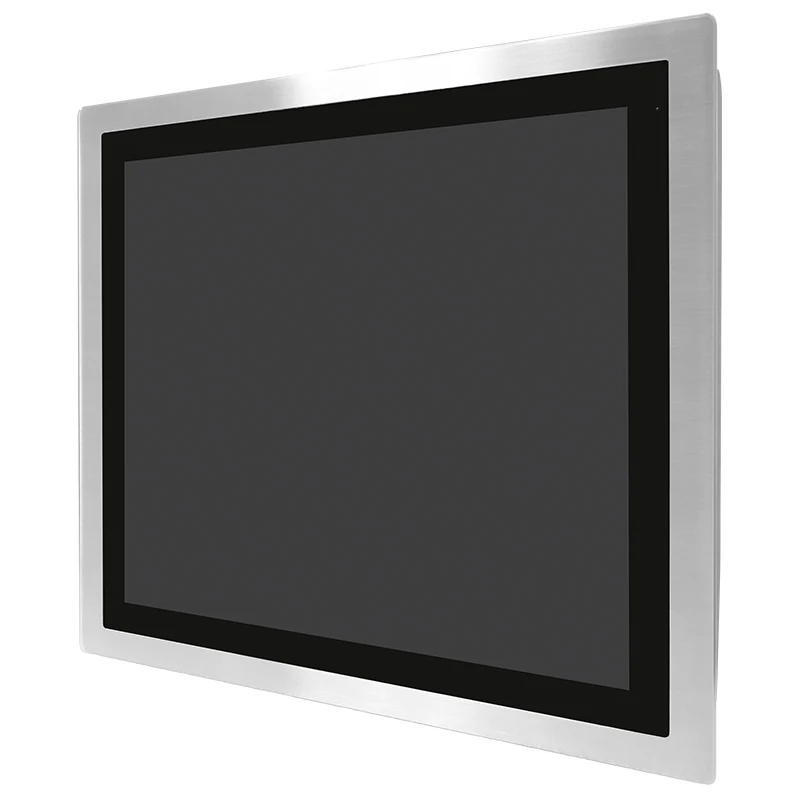

Panel PCs & HMI Controllers FABS-819B Series Main Product Image
Panel PCs & HMI Controllers FABS-819B Series Product Image 2

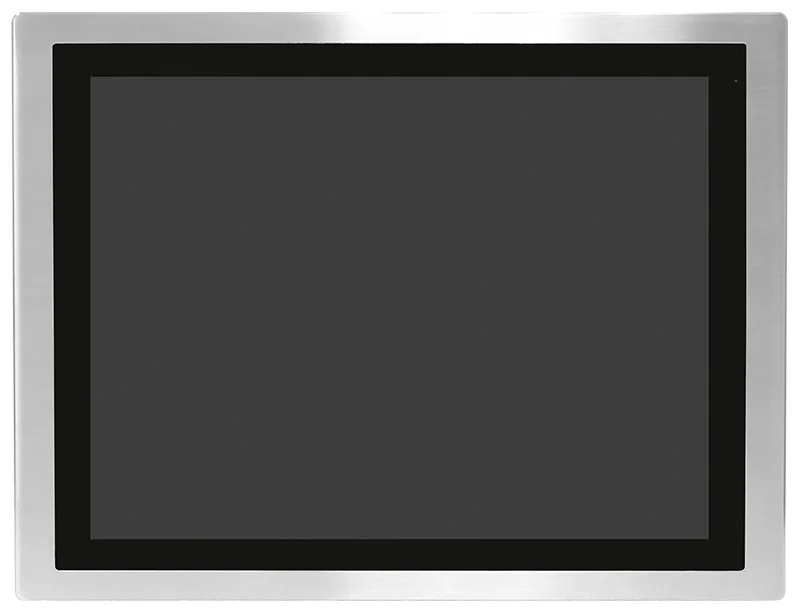

Panel PCs & HMI Controllers FABS-819B Series Product Image 3

The FABS-819B series is a 19" (1280 x 1024) food grade stainless-steel fanless industrial Panel PC designed for harsh environments requiring a high level of hygiene. The FABS-819B series features a cost-effective, yet powerful Intel Celeron J6412 Processor, with up to 32GB SoDIMM DDR4 RAM. It also has a wide range of rugged industrial features and customisable options which makes it ideal for a wide variety of food and beverage applications, including processing and manufacturing.

The FABS-819B series is housed in a fanless, rugged aluminium chassis with a 304 or optional 316 grade stainless-steel bezel that provides IP66/IP69K front panel water and dust protection. The stainless-steel front bezel provides anti-corrosion, anti-bacteria, and anti-oxidation protection, making it durable and rugged, even when it is exposed to harsh conditions. The whole series is CE/FCC Class A certified, and the projected capacitive touch version has been optimised to meet the hygienic design requirements of DIN EN 1672-2, a high standard for food and beverage processing.

The FABS-819B features a 19" TFT-LCD with a 1280 x 1024 resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, that features multi-touch support, and an anti-scratch surface which helps to improve usability, while also providing the screen with tough protection. It also has the option of high brightness (1,000nits) and auto dimming, making it ideal for outdoor use or in areas exposed to a lot of sunlight.

The FABS-819B includes: 1 x RS-232/422/485, 2 x GbE LAN ports, and 4 x USB ports (2 x USB3.2, 2 x USB2.0) as well as support for internal Mini-PCIe expansion modules supporting 4G or WiFi/BT. Furthermore, the FABS-819B also has a DisplayPort output which enables users to connect an additional monitor when required. Additional COM, LAN and USB ports can also be included. The FABS-819B series supports Windows 10 IoT and Windows 11, helping to future-proof any applications that may be required.

The FABS-819B also supports DC 9~36V power input and an operating temperature range of 0°C ~50°C (optional -20~60˚C). The chassis features a compact depth, making it ideal for applications with limited room. Support for both Panel and VESA mounting also makes the FABS Series convenient to install, and allows the system to be ergonomically positioned for operator convenience.

The overall rugged and customisable design of the FABS-819B series offers 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution for applications requiring a high level of hygiene. Download the data sheet for more technical details, or contact us via the “Request a Quote” tab so that we can help you to customise a solution that is right for your application.

Key Features:

  • 19" food grade Industrial Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66/IP69K Front Bezel
  • SUS304 Stainless Steel (option SUS316L)
  • Supports TPM2.0 Hardware Security
  • DC 9~36V Wide Range Power Input
  • Optional High Brightness 1000nits
  • Wide Range Operating Temperature: 0~50˚C (optional -20~60˚C)

Data Sheets (PDF)

Product Downloads PDF Icon

FABS-819B Series Data Sheet

Part Numbers

Details

FABS-819BR

19" 1280 x 1024 fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-819BP

19" 1280 x 1024 fanless HMI barebone with Intel Celeron J6412 processor, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
