NPD2425 Series

Product Overview

24" Sunlight Readable Marine LED LCD Display, IP65 Front Panel, 1000nits, Wide Temp Range, Touch Screen

Features Include:

  • 24" sunlight readable LCD with 1000nits brightness
  • Projected capacitive multi-touch screen
  • IP65-rated front panel for dust and water resistance
  • Rugged aluminium alloy chassis
  • View More

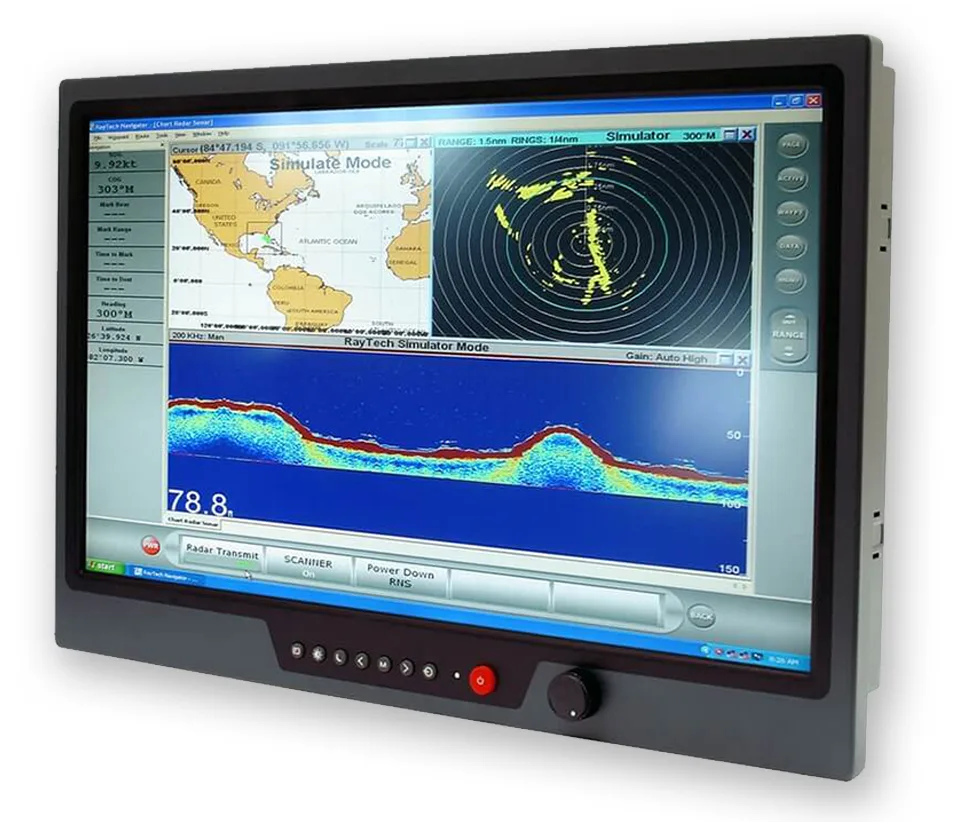

Industrial Monitors NPD2425 Series Main Product Image
Industrial Monitors NPD2425 Series Product Image 2

The NAVPIXEL NPD2425 is a rugged 24" marine-grade touch display engineered for high-visibility, high-reliability use in challenging maritime and industrial environments. Featuring a 1000nits projected capacitive multi-touch screen and advanced optical bonding (AOT), it delivers outstanding readability in sunlight and smooth touch responsiveness in demanding conditions.

The NPD2425’s slim-profile aluminium chassis is lightweight yet robust, with an IP65-rated front panel offering protection against water and dust. It supports a wide operating temperature range from -10˚C to 50˚C and withstands high shock and vibration levels, making it ideal for vessel bridges, engine rooms, and offshore control panels. With versatile video inputs, Picture-in-Picture (PIP) support, and 9–36V DC isolated power input, the NPD2425 is a reliable choice for marine system integration.

Key Features:

  • 24" sunlight readable LCD with 1000nits brightness
  • Projected capacitive multi-touch screen
  • IP65-rated front panel for dust and water resistance
  • Rugged aluminium alloy chassis
  • Advanced Optical Bonding (AOT) for glare reduction and enhanced clarity
  • Picture-in-Picture (PIP) functionality
  • Wide operating temperature: -10˚C to 50˚C
  • High shock and vibration resistance
  • Long-life, low-power LED backlight (50W consumption)
  • Isolated 9–36V DC power input
  • Video inputs: VGA x2, DVI x2, Composite x3
  • Connectivity: RS232 x1, USB x1
  • Supports both Panel and VESA mounting

Data Sheets (PDF)

Product Downloads PDF Icon

NPD2425 Series (PCT) Data Sheet

Part Numbers

Details

NPD2425-ETAW-J01

24inch sunlight readable LCD monitor, 1000nits, IP65 front panel, 2xVGA,2x DVI, AV inputs, 9-36VDC, USB proj cap T/S, no adapter
