NPD1768 Series

Product Overview

17" IP65 Sunlight Readable Multi-Touch Marine Display, 1600nits Brightness, Operating Temp Range (-10˚C~50˚C)

Features Include:

  • 17" sunlight readable LCD with 1600nits brightness
  • Projected capacitive multi-touch interface
  • IP65-rated front panel for water and dust protection
  • Wide operating temperature: -10˚C to 50˚C
  • View More
Industrial Monitors NPD1768 Series Main Product Image
Industrial Monitors NPD1768 Series Product Image 2

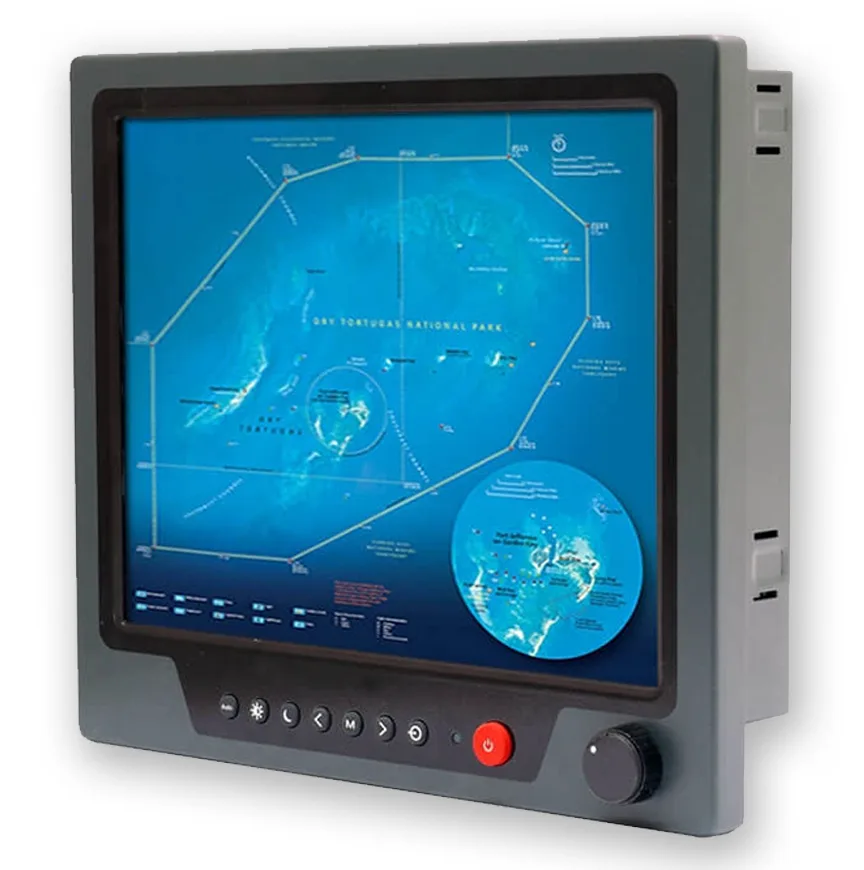

The NAVPIXEL NPD1768 is a premium 17" marine-grade touchscreen monitor engineered for use in harsh maritime and industrial environments. With 1600nits of sunlight-readable brightness and projected capacitive multi-touch support, it offers superior visibility and intuitive control in any lighting condition. Its rugged, slim-profile chassis is constructed from milled aluminium alloy, delivering durability in wet, high-vibration, and temperature-extreme conditions.

The front panel is IP65-rated for water and dust ingress protection, and the unit is certified to BV Rule IACS-E10 and IEC 60945 marine standards. Advanced Optical Bonding (AOT) improves clarity and reduces glare, while Picture-in-Picture (PIP) functionality adds operational flexibility. Operating reliably in temperatures from -10˚C to 50˚C and with flexible mounting and I/O options, it’s ideal for ship bridges, offshore platforms, and critical marine applications.

Key Features:

  • 17" sunlight readable LCD with 1600nits brightness
  • Projected capacitive multi-touch interface
  • IP65-rated front panel for water and dust protection
  • Wide operating temperature: -10˚C to 50˚C
  • Certified to BV Rule IACS-E10 and IEC 60945
  • Rugged billet aluminium alloy chassis
  • Advanced Optical Bonding (AOT) for improved screen clarity
  • Picture-in-Picture (PIP) functionality
  • High shock and vibration resistance
  • Low power draw: 38W
  • Isolated 9–36V DC input
  • Video interfaces: VGA x2, DVI x2, Composite x3
  • Connectivity: RS232 x1, USB x1
  • Panel and VESA mounting support

Data Sheets (PDF)

Product Downloads PDF Icon

NPD1768 Series Data Sheet

Part Numbers

Details

NPD1768-ETAW-J01

17inch sunlight readable LCD monitor, 1600nits, IP65 front panel, 2xVGA,2x DVI, AV inputs, 9-36VDC, USB proj cap T/S, with adapter
