NPD1568 Series

Product Overview

15" Sunlight Readable Marine Touch Display, IP65 Front, 1600nits brightness, multi-touch, wide temp range

Features Include:

  • 15" sunlight readable LCD Marine Monitor with 1600nits brightness
  • IP65-rated front panel for water and dust protection
  • Projected capacitive multi-touch interface
  • Rugged, lightweight billet aluminum chassis
  • View More

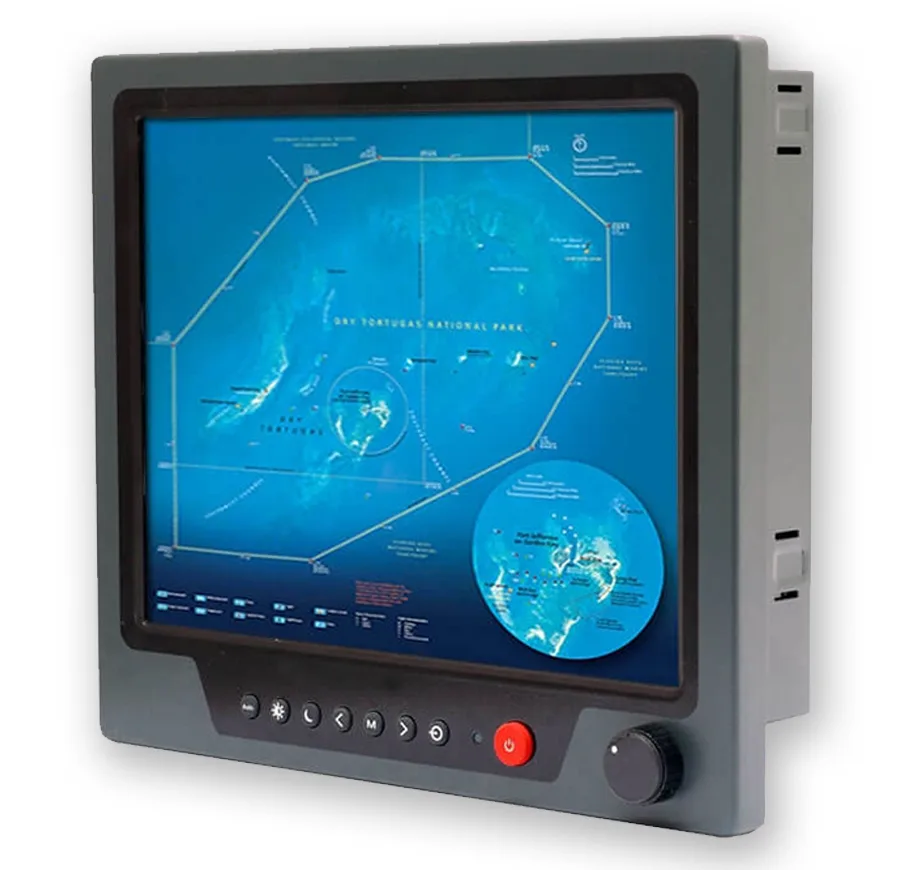

Industrial Monitors NPD1568 Series Main Product Image
Industrial Monitors NPD1568 Series Product Image 2

The NAVPIXEL NPD1568 is a high-performance 15" marine-grade touch monitor designed for demanding environments. With 1600nits of sunlight-readable brightness, a projected capacitive multi-touch interface, and a slim yet rugged aluminum chassis, this display excels in both visibility and durability. Its IP65-rated front panel ensures resistance to water and dust, making it ideal for marine, offshore, and outdoor industrial use.

Advanced optical bonding (AOT) improves clarity and reduces glare, while the fanless design and low 23W power consumption support energy efficiency and reliability. Supporting a wide operating temperature range of -20°C to 60°C and high shock/vibration resistance, the NPD1568 is built for mission-critical deployment. Panel and VESA mounting options make installation flexible across a range of vessels and control stations.

Key Features:

  • 15" sunlight readable LCD Marine Monitor with 1600nits brightness
  • IP65-rated front panel for water and dust protection
  • Projected capacitive multi-touch interface
  • Rugged, lightweight billet aluminum chassis
  • Advanced Optical Bonding Technology (AOT) for improved clarity
  • Wide operating temperature: -20°C to 60°C
  • High resistance to shock and vibration
  • Low power consumption: 23W
  • Isolation power input: 9–36V DC
  • Video inputs: VGA x1, DVI x1, Composite x3
  • USB x1 and RS232 x1 ports
  • Panel and VESA mounting support

Data Sheets (PDF)

Product Downloads PDF Icon

NPD1568 Series Data Sheet

Part Numbers

Details

NPD1568-ETAW-G01

15inch sunlight readable LCD monitor, 1600nits, IP65 front panel, VGA, DVI, AV inputs, 9-36VDC, USB proj cap T/S, no adapter
