NPD1569 Series

Product Overview

15.6" IP65 Sunlight Readable PCT Multi-Touch Marine Display, 1800nits brightness, ultra wide temp range (-30°C~80°C)

Features Include:

  • 15.6" Full HD (1920x1080) sunlight readable LCD
  • 1800nits brightness for clear daylight viewing
  • Projected capacitive multi-touch screen
  • Full-flat front panel design
  • View More

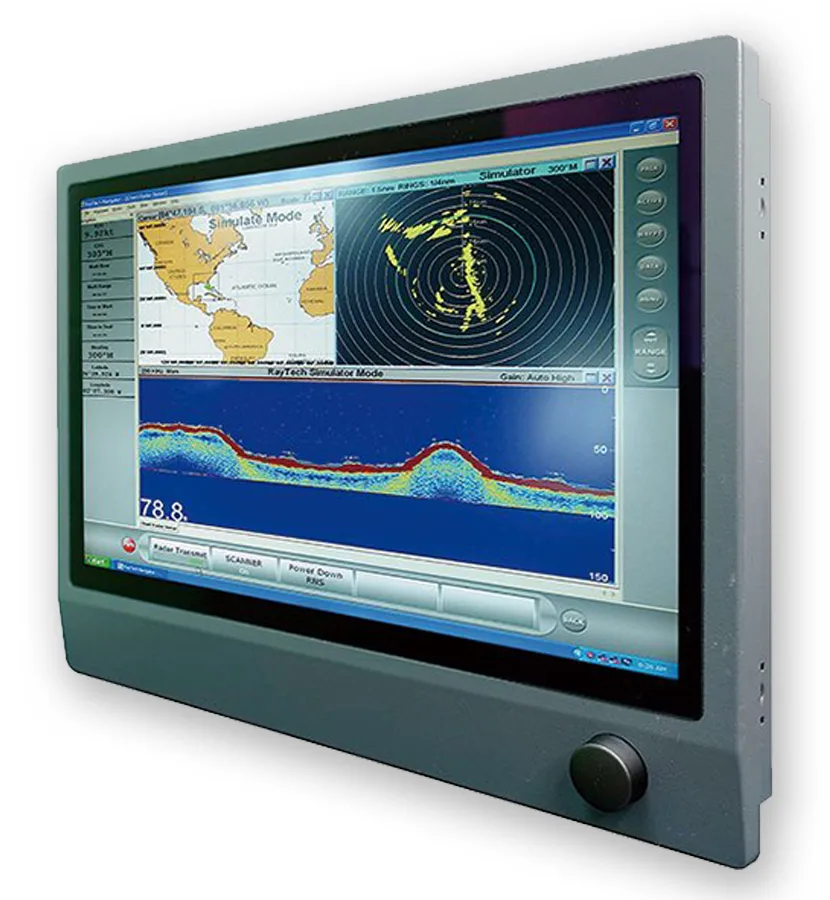

Industrial Monitors NPD1569 Series Main Product Image
Industrial Monitors NPD1569 Series Product Image 2

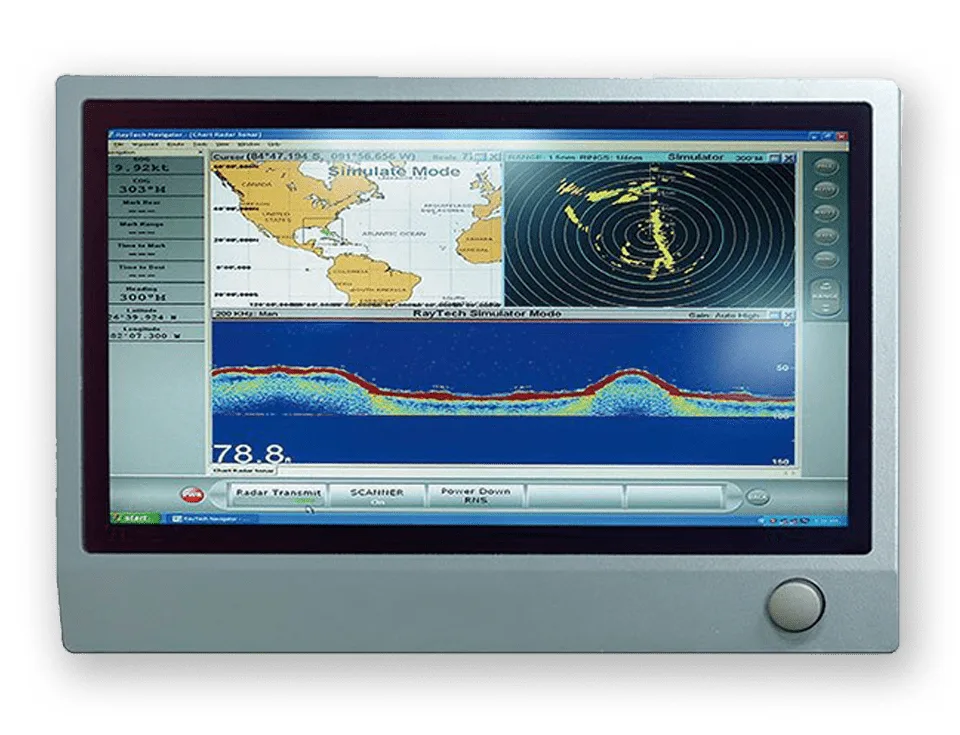

Industrial Monitors NPD1569 Series Product Image 3

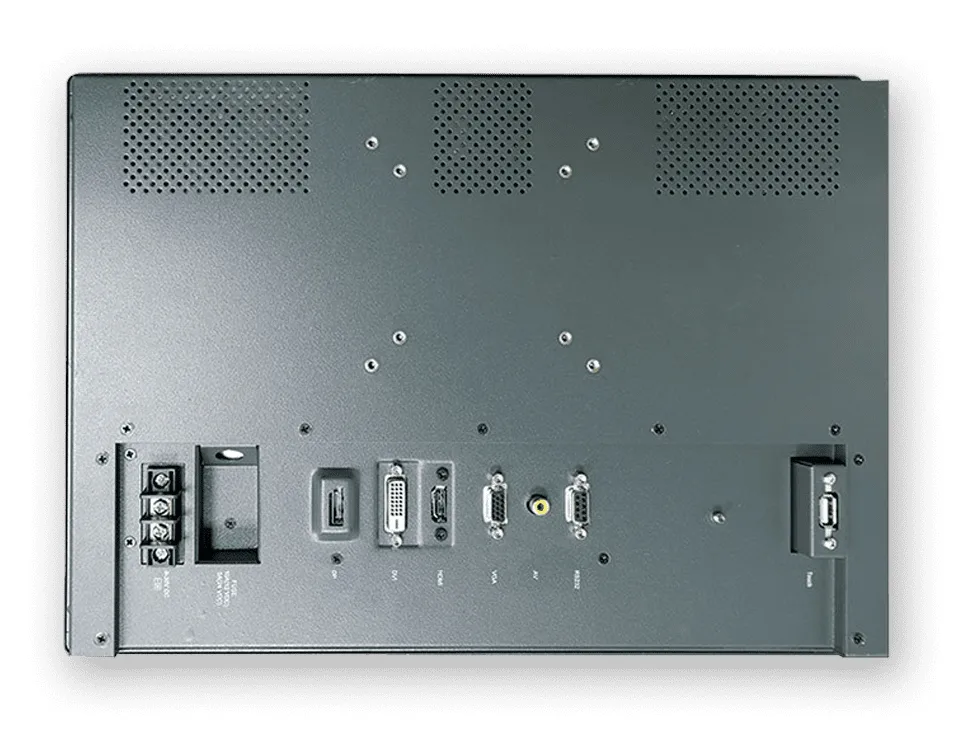

Industrial Monitors NPD1569 Series Product Image 4

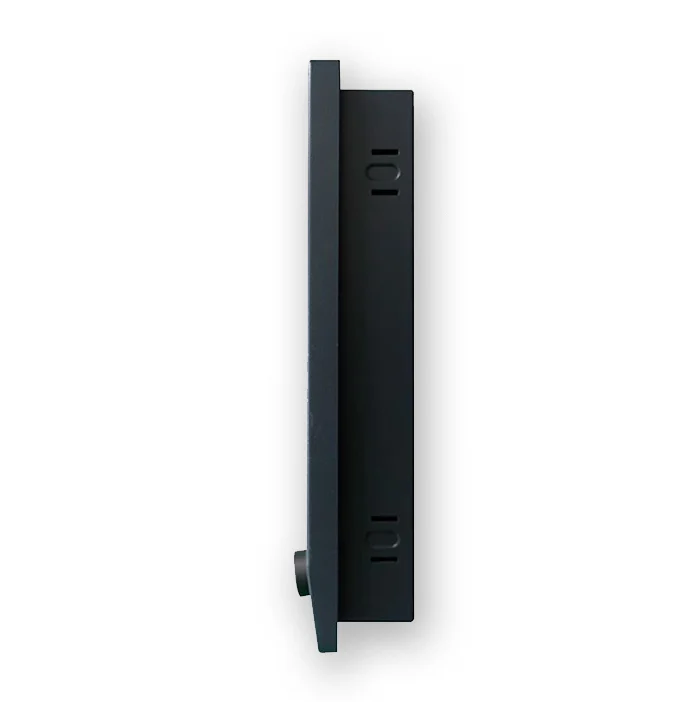

Industrial Monitors NPD1569 Series Product Image 5

The NAVPIXEL NPD1569 is a rugged 15.6" Full HD marine touch monitor engineered for high-visibility, harsh-environment deployments. Delivering 1800nits of sunlight-readable brightness, the NPD1569 ensures clear operation in direct sunlight. Its projected capacitive multi-touch screen and full-flat design enhance usability in marine navigation, surveillance, and industrial control applications.

Housed in a durable SPCC steel chassis with an IP65-rated front panel, this display offers water and dust resistance, while the ultra-wide operating temperature range of -30°C to 80°C supports reliable performance in extreme conditions. Advanced Optical Bonding (AOT) improves screen clarity and reduces reflections, and an integrated rotary/push knob simplifies OSD control. Flexible mounting options and multiple video inputs, including HDMI, DisplayPort, VGA, and DVI-D, allow for easy integration across a wide range of vessels and systems.

Key Features:

  • 15.6" Full HD (1920x1080) sunlight readable LCD
  • 1800nits brightness for clear daylight viewing
  • Projected capacitive multi-touch screen
  • Full-flat front panel design
  • IP65-rated front for dust and water resistance
  • Rugged SPCC steel chassis
  • Wide operating temperature: -30°C to 80°C
  • High shock and vibration resistance
  • Advanced Optical Bonding (AOT) for enhanced clarity
  • Rotary and push knob for easy OSD menu navigation
  • Isolation power input: 9–36V DC
  • Power-efficient LED backlight (32W consumption)
  • Video interfaces: VGA x1, DVI-D x1, HDMI x1, DP x1, Composite x1
  • Connectivity: RS232 x1, USB x1
  • Panel and VESA mount options

Data Sheets (PDF)

Product Downloads PDF Icon

NPD1569 Data Sheet

Part Numbers

Details

NPD1569-ITA-P01

15.6inch sunlight readable FHD monitor, 1800nits, IP65 front panel, VGA, DVI, HDMI, DP, AV inputs, 9-36VDC, USB proj cap T/S
