ARCDIS-116A Series

Product Overview

15.6” Fanless Industrial Display, IP66 Front Panel, Resistive/Projected Capacitive Touch Screen & High Brightness Options

Features Include:

  • 15.6” TFT-LCD Industrial Display
  • IP66 compliant front panel
  • Resistive/Projected Capacitive Touch Screen Options
  • Fanless design
  • View More
Industrial Monitors ARCDIS-116A Series Main Product Image
Industrial Monitors ARCDIS-116A Series Product Image 2

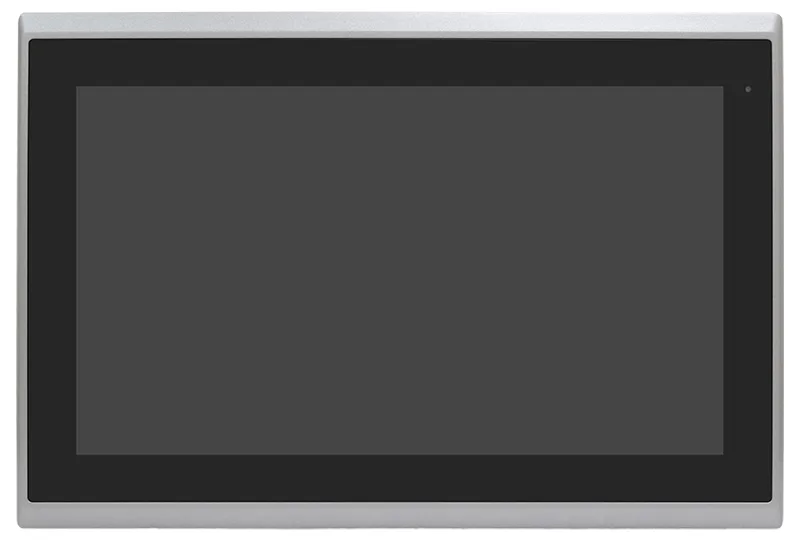

Industrial Monitors ARCDIS-116A Series Product Image 3
Industrial Monitors ARCDIS-116A Series Product Image 4
Industrial Monitors ARCDIS-116A Series Product Image 5

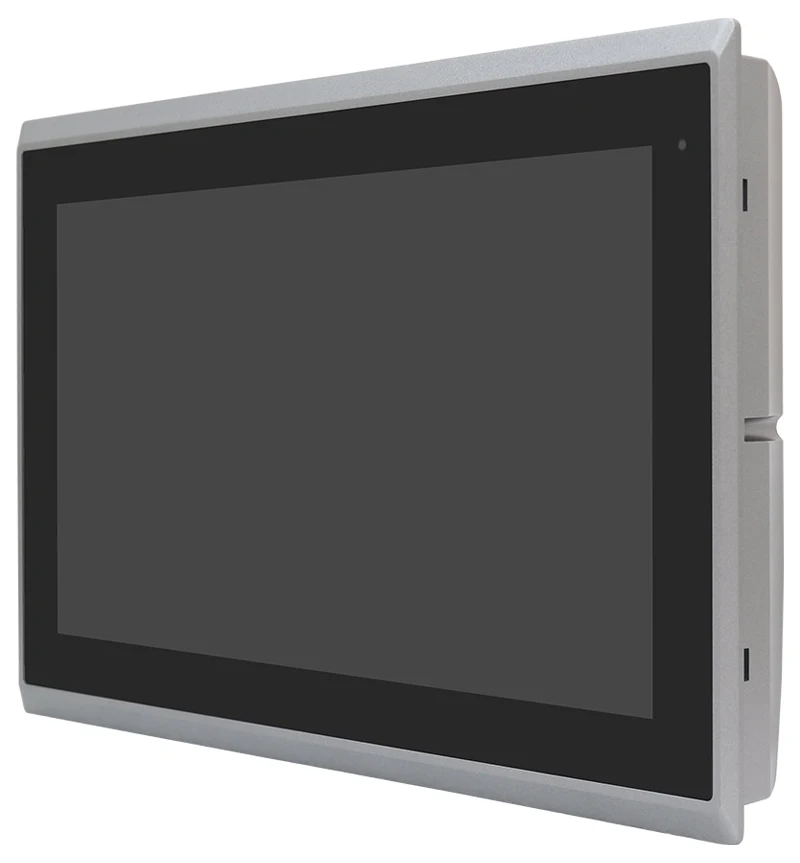

The ARCDIS-116A series is a 15.6” (1366 x 768) fanless industrial display with a rugged design ideal for harsh industrial environments. The ARCDIS-116A series has a wide range of rugged industrial features and customisable options, which makes it ideal for a wide variety of industrial applications, including manufacturing, warehousing, kiosks and process control.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCDIS-116A also features a rugged, fanless aluminium die-cast chassis, and a compact profile ideal for space-saving applications. The overall rugged design of the ARCDIS-116A series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting solution.

The ARCDIS-116A features a 15.6” TFT-LCD display with a 1366 x 768 resolution. Optional auto dimming, 1000nits high brightness, and optical bonding, makes the ARCDIS series perfect for a range of applications, no matter the environment or weather.

The ARCDIS-116A series features a resistive touchscreen as an option, which is ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust. Alternatively, the optional projected capacitive touchscreen with multi-touch support, and anti-scratch surface helps to improve usability, while also providing the screen with tough protection. There is also a protective AR glass option for when touchscreen functionality is not required.

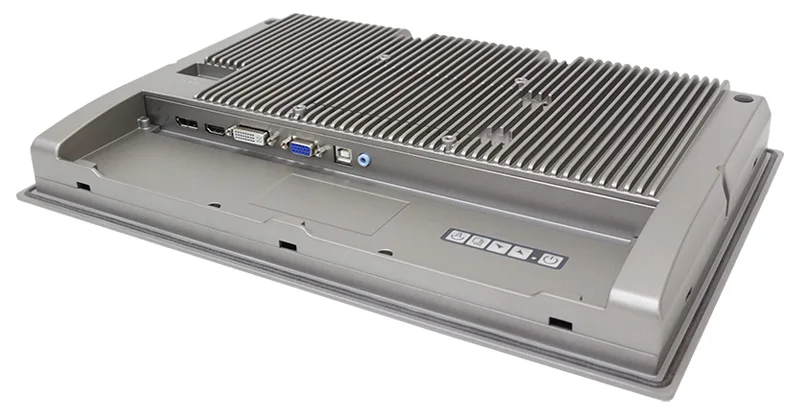

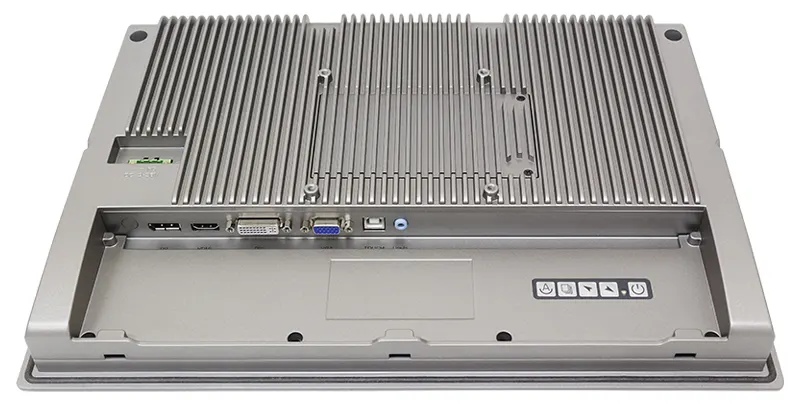

The ARCDIS-116A features the following I/O, 1 x VGA, 1 x DVI-D, 1 x DP, 1 x HDMI, and 1 x USB type B for touch control, giving the user multiple options to be able to connect an external device e.g., Embedded Box PC. The ARCDIS-116A also features an OSD control membrane on the rear side, helping to make operation easier.

The ARCDIS-116A has a wide operating temperature range of 0~50˚C. It also features a wide power input range of DC 9~36V. The ARCDIS-116A series can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCDIS-116A ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging, kiosks and warehousing. Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

  • 15.6” TFT-LCD Industrial Display
  • IP66 compliant front panel
  • Resistive/Projected Capacitive Touch Screen Options
  • Fanless design
  • Flat front panel
  • Wide range DC 9~36V power input
  • VGA/DVI-D/HDMI/DP input
  • High Brightness & Auto Dimming Options
  • Rear side On-Screen-Display OSD controls
  • Rugged Aluminium Die-Cast Enclosure
  • Supports protective AR glass for option (non-touch version)
  • Wide Operating Temperature Range of 0~50˚C

Data Sheets (PDF)

Product Downloads PDF Icon

ARCDIS-116A Data Sheet

Part Numbers

Details

ARCDIS-116AG

15.6inch 1366x768 wide panelmount industrial monitor no touch with protective glass, IP65 rated front panel, VGA, DVI, DP & HDMI, DC input

ARCDIS-116AP

15.6inch 1366x768 wide panelmount industrial monitor with proj capacitive (USB) touchscreen, IP65 rated front panel, VGA, DVI, DP & HDMI, DC input

ARCDIS-116AR

15.6inch 1366x768 wide panelmount industrial monitor with resistive (RS-232/USB) touchscreen, IP65 rated front panel, VGA, DVI, DP & HDMI, DC input

Display Upgrades

Details

AXX-X16-SR_OB

Upgrade ARCDIS/ARCHMI-x16 to 1000nits sunlight readable with optical bonding

AXX-X16-SR_OB-FHD

Upgrade ARCxxx/FABS/VITAM-x16 to 1000nits sunlight readable with optical bonding, 1920x1080 resolution
