ARCDIS-124A Series

The ARCDIS-124A series is a 23.8" (1920 x 1080) fanless industrial display with a rugged design ideal for harsh industrial environments. The ARCDIS-124A series has a wide range of rugged industrial features and customisable options, which makes it ideal for a wide variety of industrial applications, including manufacturing, warehousing, kiosks and process control.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCDIS-124A also features a rugged, fanless aluminium front bezel / steel chassis, and a compact profile ideal for space-saving applications. The overall rugged design of the ARCDIS-124A series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting solution.

The ARCDIS-124A features a 23.8" TFT-LCD display with a 1920 x 1080 resolution. Optional 1000nits high brightness also makes the ARCDIS series perfect for a range of applications, even in outdoor environments.

The optional projected capacitive touchscreen with multi-touch support, and anti-scratch surface helps to improve usability, while also providing the screen with tough protection. There is also a protective AR glass option for when touchscreen functionality is not required.

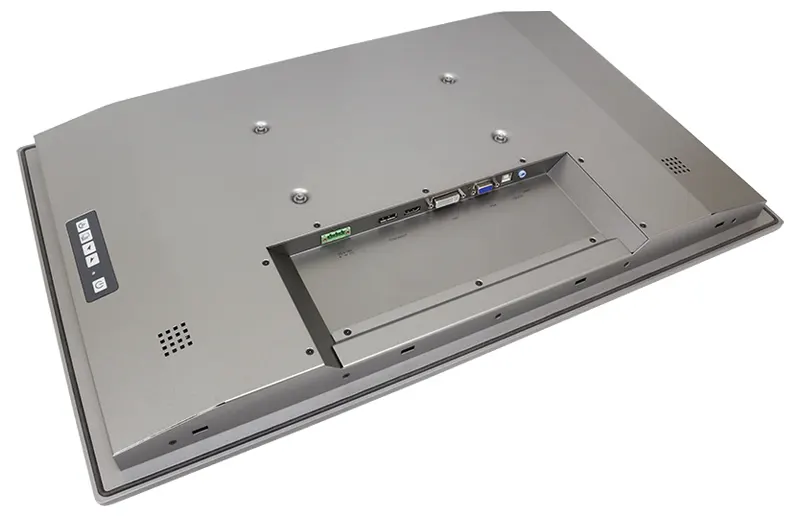

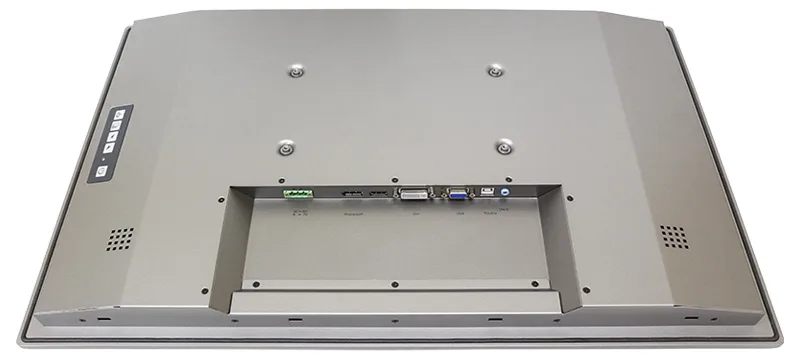

The ARCDIS-124A features the following I/O, 1 x VGA, 1 x DVI-D, 1 x DP, 1 x HDMI, and 1 x USB type B for touch control, giving the user multiple options to be able to connect an external device e.g., Embedded Box PC. The ARCDIS-124A also features an OSD control membrane on the rear side, helping to make operation easier.

The ARCDIS-124A has a wide operating temperature range of 0~50˚C. It also features a wide power input range of DC 9~36V. The ARCDIS-124A series can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCDIS-124A ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging, kiosks and warehousing. Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

• 23.8" TFT-LCD Industrial Display
• IP66 compliant front panel
• Projected Capacitive Touch Screen Options
• Fanless design
• Flat front panel
• Wide range DC 9~36V power input
• VGA/DVI-D/HDMI/DP input
• High Brightness Options
• Rear side On-Screen-Display OSD controls
• Rugged Aluminium Front Bezel / Steel Chassis
• Supports protective AR glass for option (non-touch version)
• Wide Operating Temperature Range of 0~50˚C
