ARCDIS-132A Series

Product Overview

32” Fanless Industrial Display, IP66 Front Panel, Projected Capacitive Touch Screen, VGA/DVI-D/HDMI/DP Input

Features Include:

  • 32” TFT-LCD Industrial Display
  • IP66 compliant front panel
  • Projected Capacitive Touch Screen
  • Fanless design
  • View More

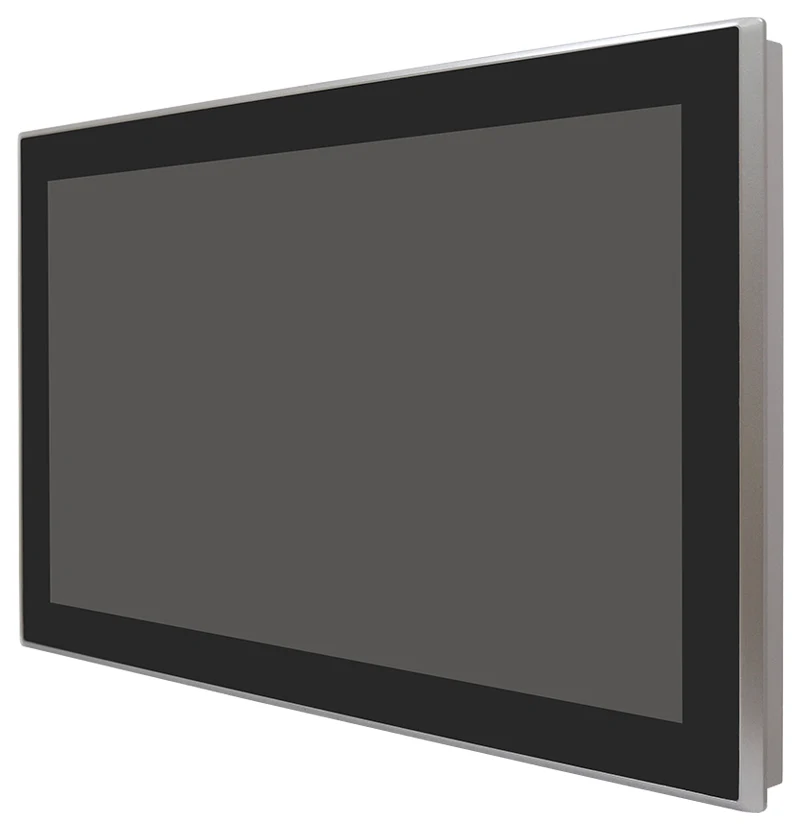

Industrial Monitors ARCDIS-132A Series Main Product Image
Industrial Monitors ARCDIS-132A Series Product Image 2

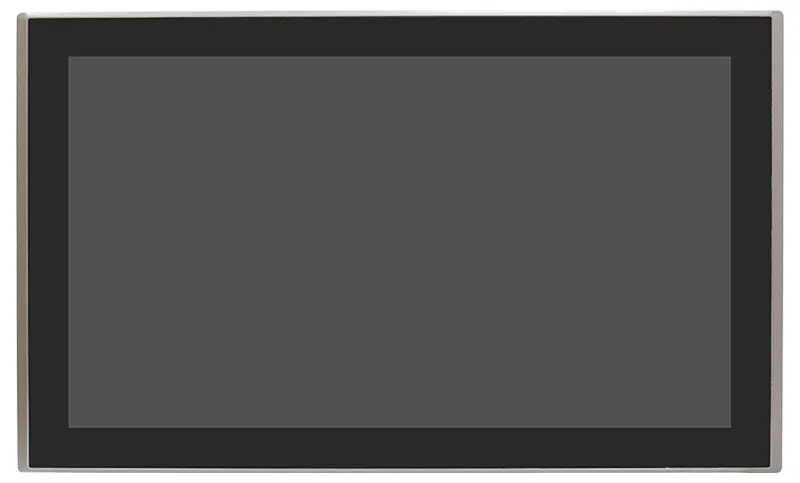

Industrial Monitors ARCDIS-132A Series Product Image 3

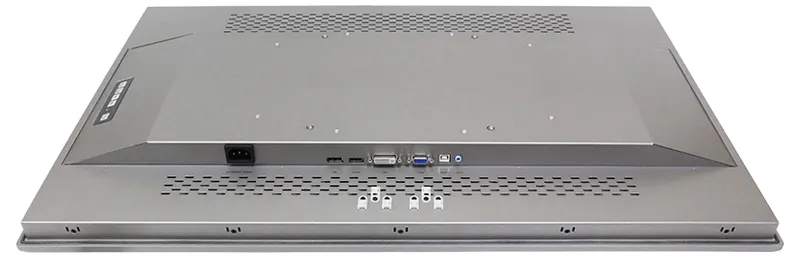

Industrial Monitors ARCDIS-132A Series Product Image 4

The ARCDIS-132A series is a 32” (1920 x 1080) fanless industrial display with a rugged design ideal for harsh industrial environments. The ARCDIS-132A series has a wide range of rugged industrial features and customisable options, which makes it ideal for a wide variety of industrial applications, including manufacturing, warehousing, kiosks and process control.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCDIS-132A also features a rugged, fanless aluminium front bezel / steel chassis, and a compact profile ideal for space-saving applications. The overall rugged design of the ARCDIS-132A series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting solution.

The ARCDIS-132A features a 32” TFT-LCD display with a 1920 x 1080 resolution. The projected capacitive touchscreen with multi-touch support, and anti-scratch surface helps to improve usability, while also providing the screen with tough protection.

The ARCDIS-132A features the following I/O, 1 x VGA, 1 x DVI-D, 1 x DP, 1 x HDMI, and 1 x USB type B for touch control, giving the user multiple options to be able to connect an external device e.g., Embedded Box PC. The ARCDIS-132A also features an OSD control membrane on the rear side, helping to make operation easier.

The ARCDIS-132A has a wide operating temperature range of 0~50˚C. The ARCDIS-132A series can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCDIS-132A ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging, kiosks and warehousing. Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

  • 32” TFT-LCD Industrial Display
  • IP66 compliant front panel
  • Projected Capacitive Touch Screen
  • Fanless design
  • Flat front panel
  • AC 90~264V power input
  • VGA/DVI-D/HDMI/DP input
  • Rear side On-Screen-Display OSD controls
  • Rugged Aluminium Front Bezel / Steel Chassis
  • Wide Operating Temperature Range of 0~50˚C

Data Sheets (PDF)

Product Downloads PDF Icon

ARCDIS-132A

Part Numbers

Details

ARCDIS-132AP

32” FHD FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, AC 90~264V power input with adapter, Aluminium Die-casting Chassis
