SM-32X32-HD4K

Product Overview

4K 18Gbps HDMI 16x16 and 32x32 Video Matrix Switch

Features Include:

  • Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
  • HDMI features supported:HDMI 2.0, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM, audio passthrough, YUV 4:4:4, 4:2:2, and 4:2:0, 12-bit Deep Color, HDR, 3D
  • Selectable built-in EDID table.
  • Cable management tray included.
  • View More

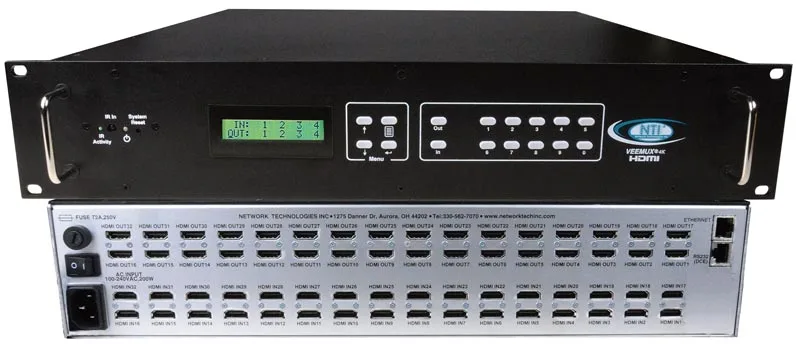

Video Switches & Converters SM-32X32-HD4K Main Product Image
Video Switches & Converters SM-32X32-HD4K Product Image 2

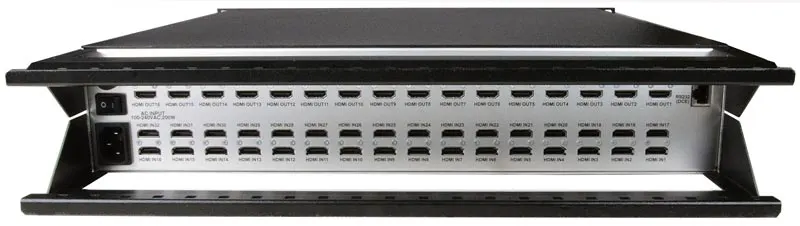

Video Switches & Converters SM-32X32-HD4K Product Image 3

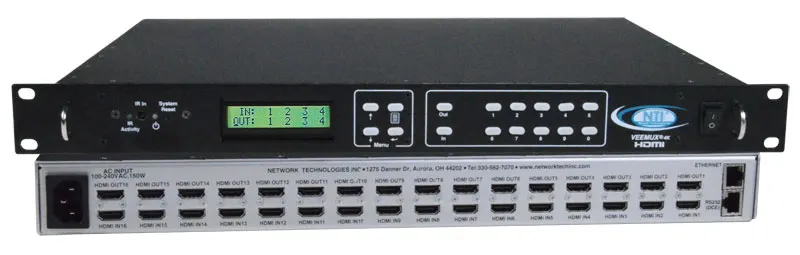

Video Switches & Converters SM-32X32-HD4K Product Image 4

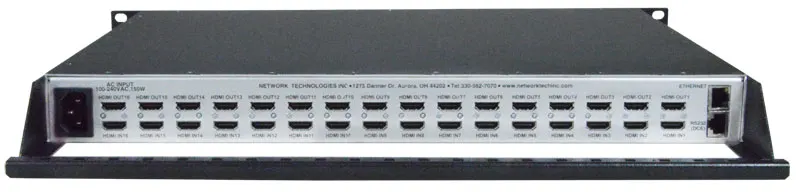

Video Switches & Converters SM-32X32-HD4K Product Image 5

The VEEMUX® 4K HDMI Video Matrix Switch routes digital 4Kx2K HDMI video and embedded audio signals from up to 32 HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to 32 displays (monitors, 4K TV's, projectors, etc).

  • Configure and control the switch through front panel buttons, Ethernet, RS232, or optional IR remote control.
    • Control4 certified.
      • Module controls routing, reset, and status RS232 functions.
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4).
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 and 1.4 compliant.
  • HDMI features supported:
    • HDMI 2.0
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM audio passthrough
    • RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0
    • 12-bit Deep Color
    • HDR
    • 3D
    • Bandwidth up to 600 Mhz (18 Gbps)
  • EDID learning for the support of any HDMI display device.
  • Selectable built-in EDID table.
  • Compact case – 16x16 in 1RU and 32x32 in 2RU.
  • Cable management tray included.

Key Features:

  • Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
  • HDMI features supported:HDMI 2.0, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM, audio passthrough, YUV 4:4:4, 4:2:2, and 4:2:0, 12-bit Deep Color, HDR, 3D
  • Selectable built-in EDID table.
  • Cable management tray included.
  • Compact 1RU design
  • Bandwidth up to 600 Mhz (18 Gbps)
  • EDID learning for the support of any HDMI display device.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and computer resolutions to 1920x1200 (WUXGA).
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 and 1.4 compliant.

Data Sheets (PDF)

Product Downloads PDF Icon

SM-32X32-HD4K Data Sheet

Part Numbers

Details

SM-16X16-HD4K

4K 18Gbps HDMI 16x16 Video Matrix Switch

SM-32X32-HD4K

4K 18Gbps HDMI 32x32 Video Matrix Switch
