SM-15V-LCD Series

Product Overview

Video Matrix Switch, up to 32 Inputs x 16 Outputs

Features Include:

  • Female 15-pin HD connectors
  • Video bandwidth is 200 MHz or greater
  • Supports 1900x1200 video resolution at a refresh rate of 85 Hz
  • Control switching via: RS232, push buttons or optional Infrared remote control
  • View More

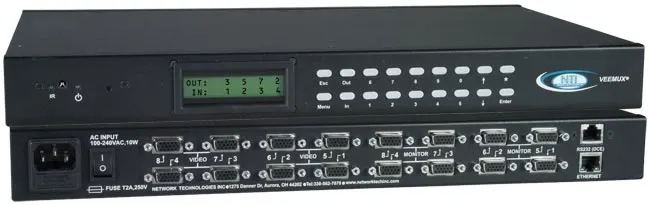

Video Switches & Converters SM-15V-LCD Series Main Product Image

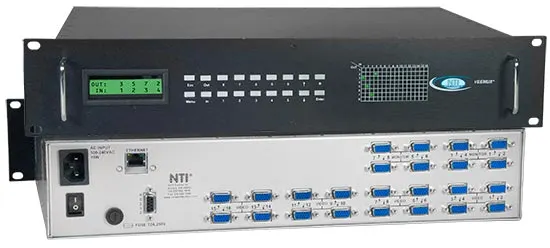

Video Switches & Converters SM-15V-LCD Series Product Image 2

Key Features:

  • Female 15-pin HD connectors
  • Video bandwidth is 200 MHz or greater
  • Supports 1900x1200 video resolution at a refresh rate of 85 Hz
  • Control switching via: RS232, push buttons or optional Infrared remote control
  • Liquid Crystal Display (LCD)
  • Video Matrix Control software included

Data Sheets (PDF)

Applications (PDF)

Download Software

Part Numbers

Details

SM-8X2-15V-LC

Video Matrix Switch, 8 inputs x 2 outputs

SM-8X4-15V-LC

Video Matrix Switch, 8 inputs x 4 outputs

SM-8X8-15V-LC

Video Matrix Switch, 8 inputs x 8 outputs

SM-16X4-15V-LCD

Video Matrix Switch, 16 inputs x 4 outputs

SM-16X8-15V-LCD

Video Matrix Switch, 16 inputs x 8 outputs

SM-16X12-15V-LCD

Video Matrix Switch, 16 inputs x 12 outputs

SM-16X16-15V-LCD

Video Matrix Switch, 16 inputs x 16 outputs

SM-32X8-15V-LCD

Video Matrix Switch, 32 inputs x 8 outputs

SM-32X16-15V-LCD

Video Matrix Switch, 32 inputs x 16 outputs

Accessories

Details

NTI Matrix Control Software

Free with NTI Video Matrix Switches
