SM-DVI-LCD Series

Product Overview

DVI Video Matrix Switch, up to 32 Inputs x 32 Outputs

Features Include:

  • Configure and control the switch through Ethernet, serial port, front panel buttons, or IR remote.
  • Supports DVI-D interface for crisp and clear video quality on flat panel displays
  • Available with optional stereo audio
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200
  • View More
Video Switches & Converters SM-DVI-LCD Series Main Product Image
Video Switches & Converters SM-DVI-LCD Series Product Image 2

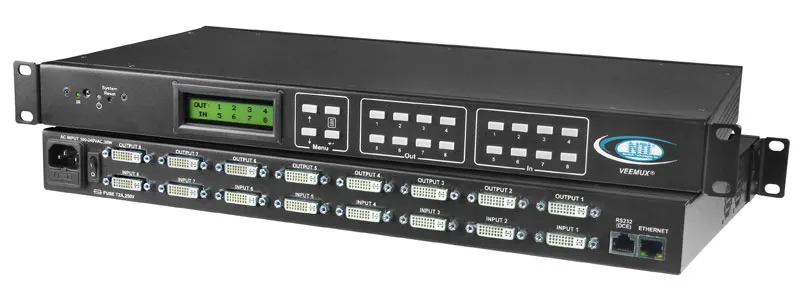

Video Switches & Converters SM-DVI-LCD Series Product Image 3

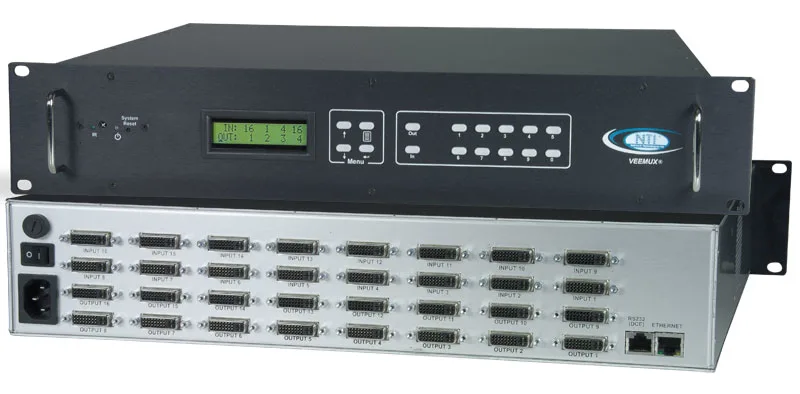

Video Switches & Converters SM-DVI-LCD Series Product Image 4

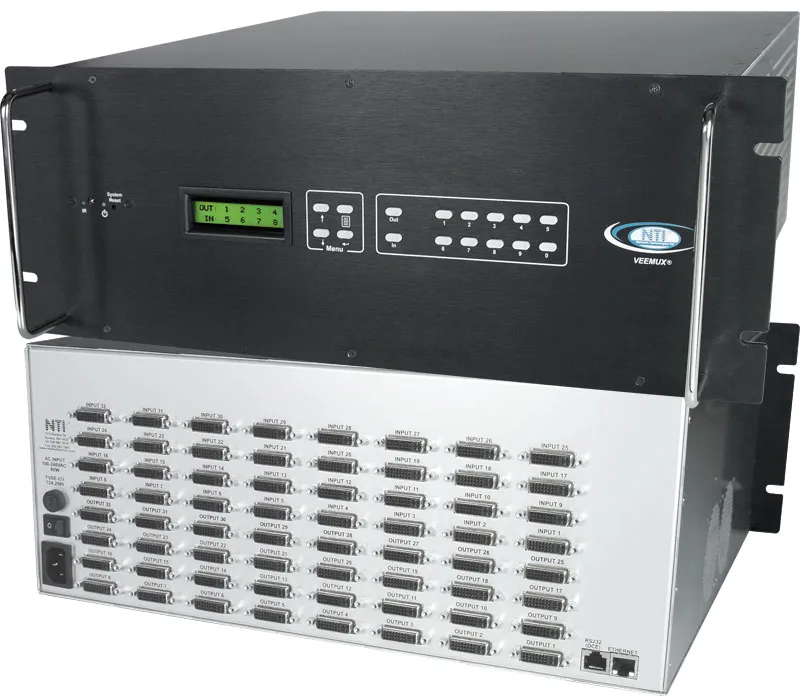

Video Switches & Converters SM-DVI-LCD Series Product Image 5

The VEEMUX® DVI Video Matrix Switch routes video from up to 32 single link digital DVI video sources (computers, DVD players, satellite receivers, etc.) to up to 32 displays (LCD monitors, Plasma screens, DLP HDTVs, projectors, etc.).

Key Features:

  • Configure and control the switch through Ethernet, serial port, front panel buttons, or IR remote.
  • Supports DVI-D interface for crisp and clear video quality on flat panel displays
  • Available with optional stereo audio
  • Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200
  • EDID learning for the support of any DVI display device
  • Connect any output to any input
  • Broadcast one input to all outputs

Data Sheets (PDF)

Product Downloads PDF Icon

SM-8X8-DVI-LCD Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

SM-8X8-DVI-LCD Series User Manual

Part Numbers

Details

SM-4X4-DVI-LCD

DVI Video Matrix Switch, 4 Input x 4 Output

SM-8X8-DVI-LCD

DVI Video Matrix Switch, 8 Input x 8 Output

SM-16X16-DVI-LCD

DVI Video Matrix Switch, 16 Input x 16 Output, 2RU Rack Mount

SM-32X32-DVI-LCD

DVI Video Matrix Switch, 32 Input x 32 Output, 4RU Rack Mount

SM-32x32-DVI-LCD-5V16A

DVI Video Matrix Switch, 32 Input x 32 Output, with internal Power Supplies for Optical Fibre Extenders

Accessories

Details

NTI Matrix Control Software

Free with NTI Video Matrix Switches
