VT-879

The VT-879 is a 12.1" (1024 x 768 resolution) industrial vehicle mount Panel PC designed for high-performance mobile computing in demanding environments like warehousing, logistics, and container port operations. Powered by a 12th Gen Intel Core i5 10-core processor, this unit delivers significant desktop-class performance to the field. It supports up to 32GB of DDR4 memory and features a 256GB M.2 SSD (expandable to 2TB), ensuring it can handle data-intensive applications and complex multitasking with ease.

The 12.1" high-brightness display features 1000nits of luminance, making it sunlight-readable for outdoor or high-glare cabin environments. Users can choose between a 5-wire resistive touch screen, which is ideal for operators wearing heavy work gloves, or a projected capacitive multi-touch screen for a more modern, smartphone-like user experience. The front panel also integrates a physical numeric keypad and six user-defined function keys, allowing for rapid data entry and quick-access control even in bumpy or vibrating conditions.

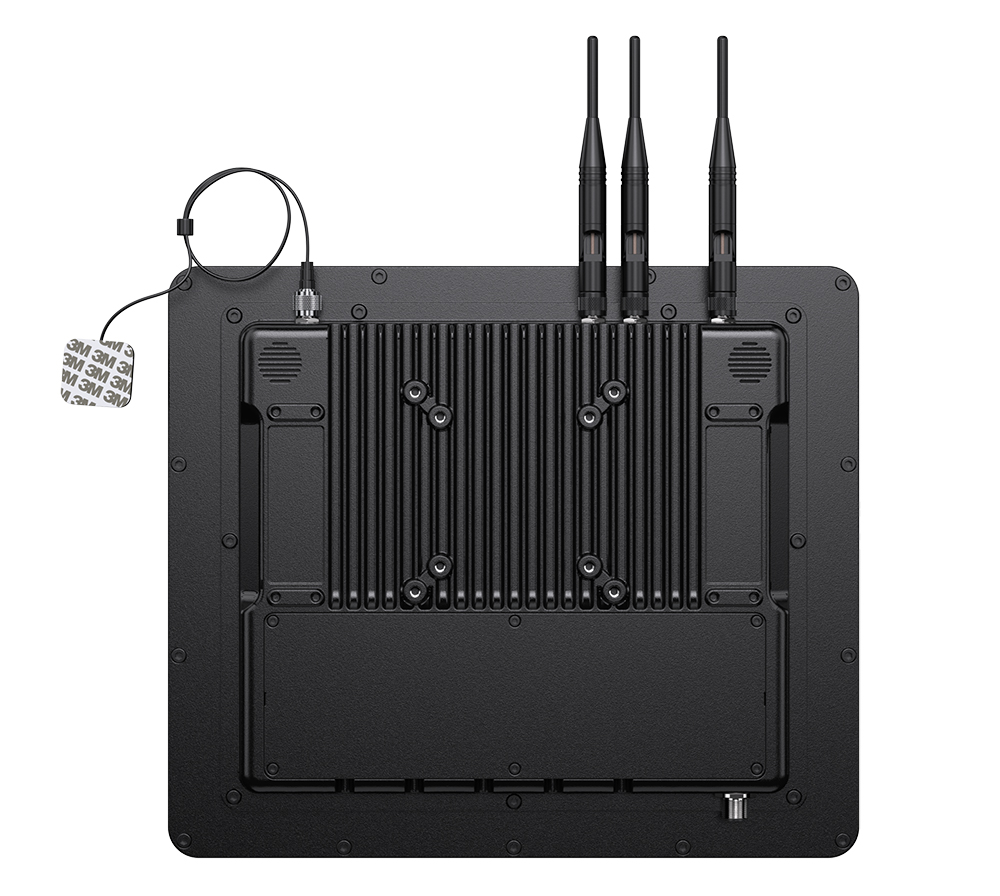

Connectivity is a core strength of the VT-879, featuring a comprehensive array of I/O including 6 x USB 3.0, 1 x COM (RS-232), and 2 x GbE LAN ports for reliable peripheral integration. It also features HDMI and DisplayPort (DP++) outputs for external monitor support. To ensure constant uptime in the field, the system offers flexible high-speed expansion options, including Wi-Fi 7, Bluetooth 5.4, 4G LTE, and 5G (NSA/SA) support. Dedicated GNSS capabilities (GPS, GLONASS, Galileo, BeiDou) are also available for precise vehicle tracking and fleet management.

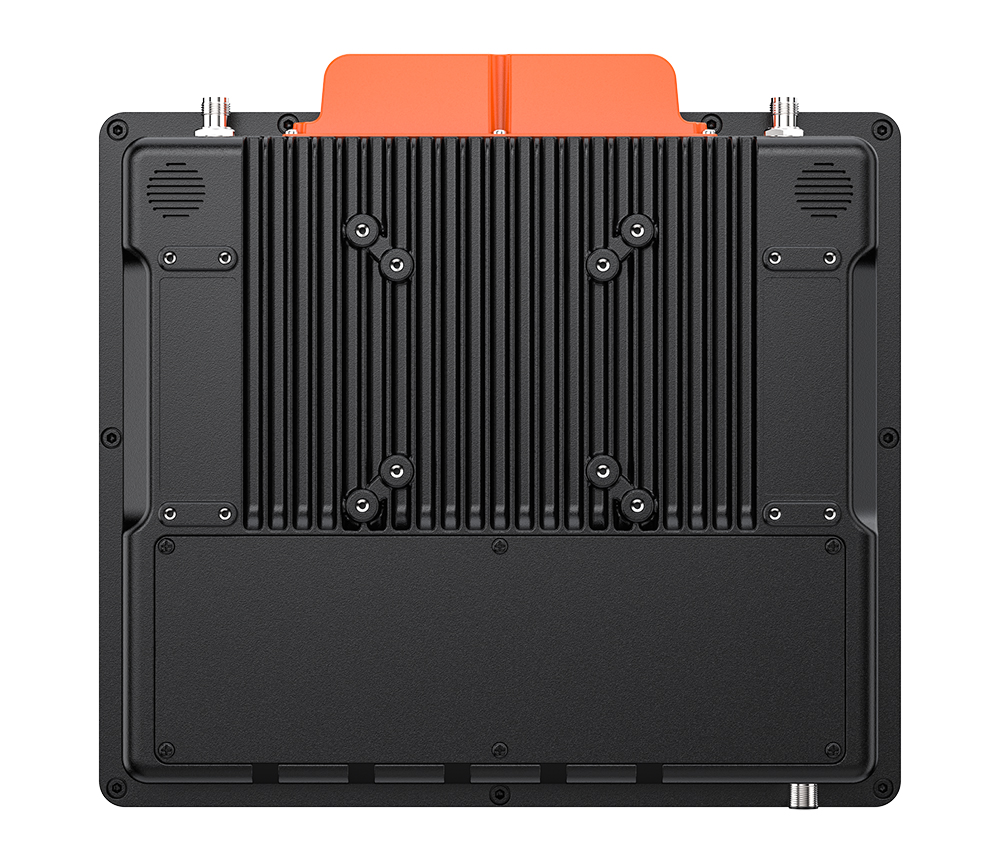

Engineered for the harshest conditions, the VT-879 features a ruggedised fanless aluminium enclosure and is IP66-rated for complete protection against dust and high-pressure water jets. It is compliant with MIL-STD-810H standards for shock and vibration, ensuring reliability on rough terrain. The unit supports a wide-range DC 8~36V power input with integrated ignition control to protect the system during vehicle start-up, and it operates reliably in extreme temperatures ranging from -30°C up to 60°C.

For seamless integration into existing IT infrastructures, the VT-879 supports Windows 10/11 Pro and IoT Enterprise LTSC versions. The design includes VESA 75 and 100 mounting patterns, providing versatile installation options for various vehicle cabs and mounting arms. This combination of 12th Gen power and industrial-grade durability makes the VT-879 the ultimate choice for modern fleet applications.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 12.1" TFT-LCD with 1024x768 resolution and 1000nits high brightness
• Touch Options: 5-wire resistive or projected capacitive (PCAP) multi-touch
• Processor: 12th Gen Intel Core i5-1235U 10-core
• Memory & Storage: Up to 32GB DDR4 RAM and 2TB M.2 SATA SSD
• Integrated Keypad: Front-facing numeric keys and 6 user-defined function keys
• Rugged Construction: Fanless aluminium enclosure with IP66 dust and water protection
• Durability: MIL-STD-810H compliant for shock and vibration resistance
• Power Management: 8~36V DC wide-range input with ignition control
• I/O Connectivity: 6 x USB 3.0, 1 x RS-232, 2 x GbE LAN, 1 x HDMI, and 1 x DP++
• Wireless Expansion: Supports Wi-Fi 7, Bluetooth 5.4, 4G LTE, 5G, and GNSS (GPS)
• Operating Temperature: Wide range -30°C~60°C
• OS Support: Windows 10/11 Pro and IoT Enterprise LTSC
• Mounting: Standard VESA 75 and 100 patterns
