VT-779W

The VT-779W is a 10.1" (1920 x 1200 resolution) industrial vehicle mount Panel PC designed to deliver dependable computing power directly into demanding mobile environments such as warehousing, logistics, and container transport. Driven by a high-performance 12th Generation Intel Core i5-1235U 10-core processor (up to 4.4GHz), this vehicle panel PC provides robust processing capabilities tailored for intense material handling and transport application requirements. To ensure smooth multitasking and ample local data capacity, the VT-779W can be configured with up to 32GB of DDR4 memory and up to 2TB of fast M.2 SATA SSD storage, providing a reliable mobile workstation capable of running intensive inventory and fleet-tracking applications on the move.

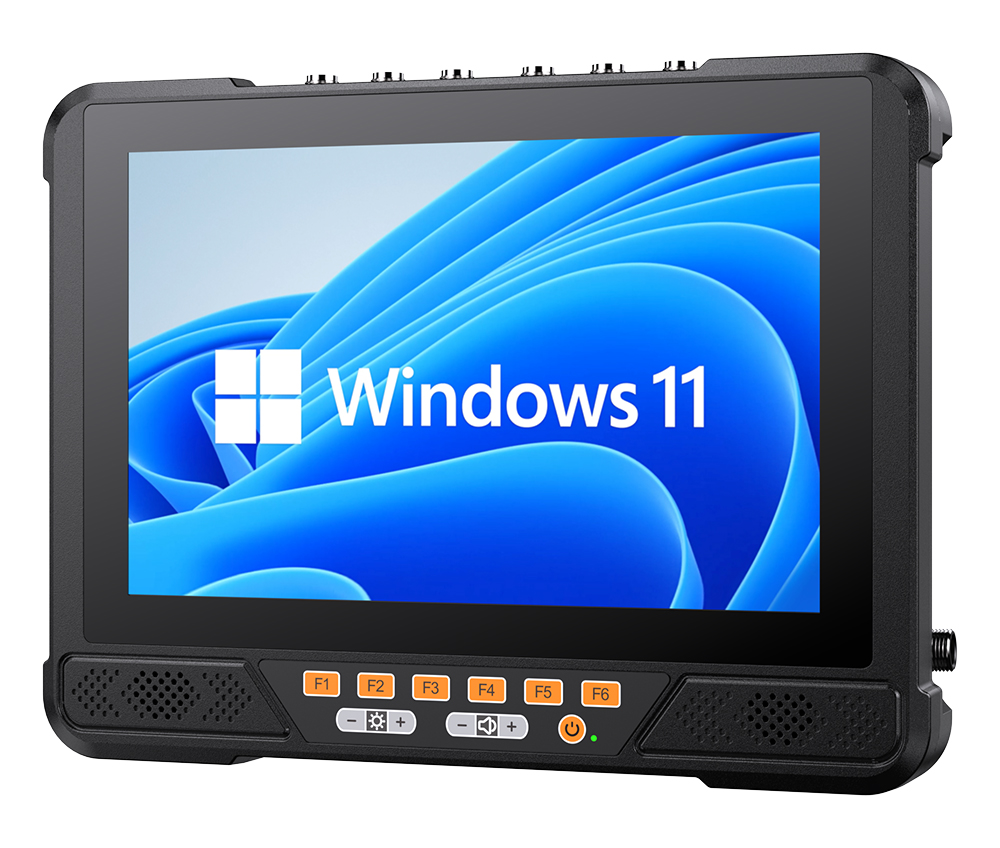

The industrial-grade 10.1-inch TFT-LCD display features a widescreen 16:10 aspect ratio and a high brightness 1000nits luminance to ensure excellent legibility under direct sunlight and varying cabin lighting conditions. This model features a standard projected capacitive multi-touch screen, which offers a highly scratch-resistant and rugged glass surface designed for long-term durability in high-traffic industrial environments. For further operational efficiency, the front panel features a dedicated numeric and control keypad alongside six user-defined function keys (F1–F6) to facilitate fast data entry.

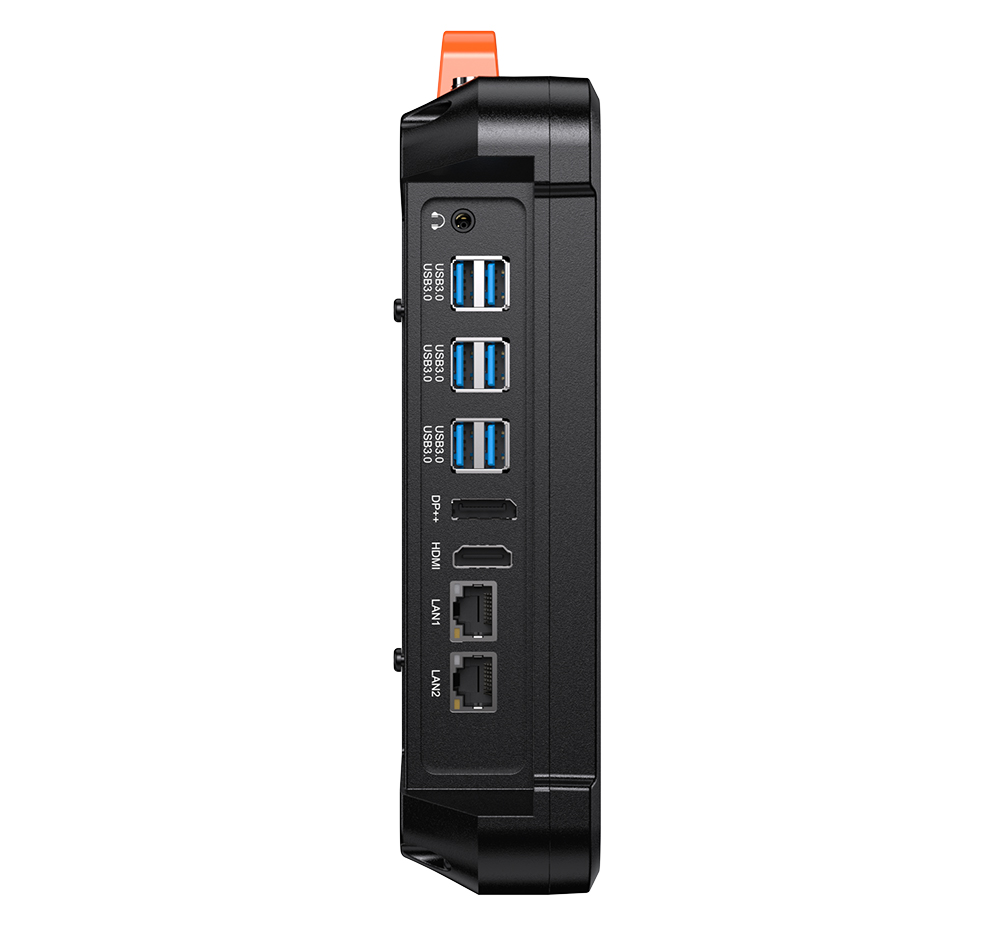

For flexible connectivity and modern network communication, the VT-779W features a versatile I/O array including six USB 3.0 ports, two GbE LAN ports for wired networking, one HDMI port, one DisplayPort (DP++), and two RS-232 serial ports via standard COM1 and COM2 DB9 connectors. Wireless expansion is a core strength of this vehicle panel PC, offering optional integration for cutting-edge Wi-Fi 7, Bluetooth 5.4, and high-speed 4G/5G cellular connectivity. Additionally, an optional multi-constellation GNSS module provides accurate tracking, with all wireless capabilities supported by up to eight external TNC antenna connections.

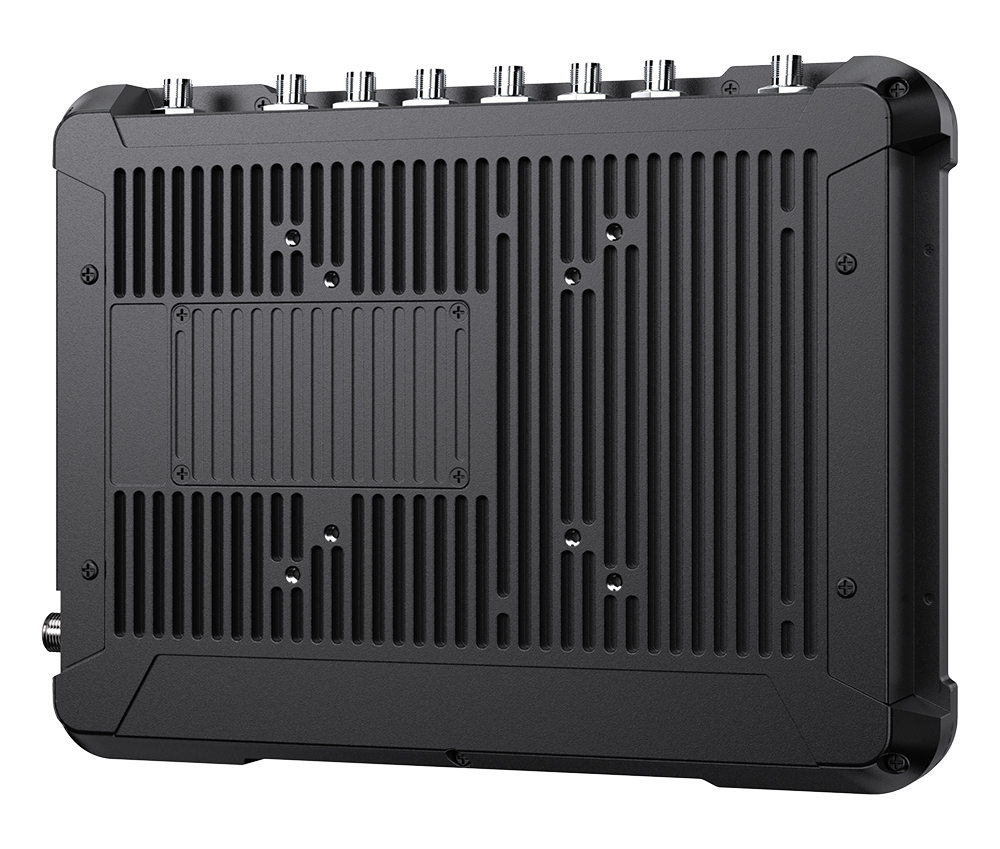

Engineered to withstand intense mechanical stress, this vehicle panel PC is built with a heavy-duty die-cast aluminium enclosure utilising a fanless thermal design. This fully sealed housing achieves an IP66 protection rating to completely isolate internal components against dust and high-pressure water ingress from any direction, provided the I/O interface is closed. Furthermore, the VT-779W complies with strict MIL-STD-810H standards for shock and vibration resistance, and handles extreme environmental conditions with a wide operating temperature range of -30°C~60°C and a flexible 8~36VDC vehicle power input.

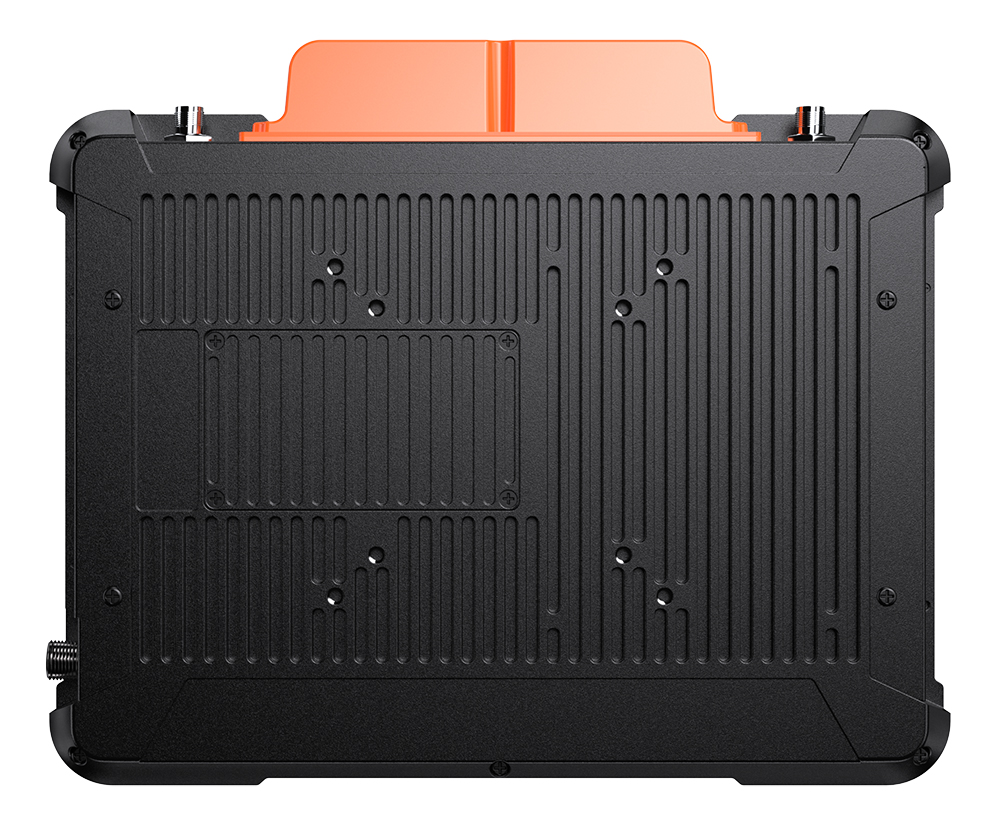

The system offers versatile software compatibility with support for Windows 11 Pro, Windows 10 Pro, and Windows IoT Enterprise LTSC operating systems to match your corporate infrastructure. For easy deployment throughout space-constrained driver cabins, the compact VT-779W supports standardised VESA 75 and VESA 100 mounting patterns for secure attachment to various heavy-duty vehicle arms and brackets. This ruggedised vehicle panel PC provides the ideal balance of durability, modern 12th Gen processing power, and extensive communication tools for your mobile operations.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• 10.1" High Brightness Widescreen: WUXGA 1920 x 1200 resolution, sunlight-readable 1000nits brightness, with a rugged projected capacitive multi-touch screen
• 12th Generation Processing: Powered by a high-performance 12th Gen Intel Core i5-1235U 10-core processor (up to 4.4GHz)
• Memory & Storage: Supports up to 32GB DDR4 RAM and up to 2TB M.2 SATA SSD
• Industrial I/O & Video Output: Includes 6x USB 3.0, 2x GbE LAN ports, 1x HDMI, 1x DP++, and 2x RS-232
• Advanced Wireless Capabilities: Optional support for Wi-Fi 7, Wi-Fi 6E, Bluetooth 5.4, 4G LTE, 5G, and GNSS (GPS/GLONASS/Galileo/BeiDou) with up to 8x external TNC antenna connectors
• Rugged Enclosure: Fanless, heavy-duty die-cast aluminium design
• Environmental Protection: IP66-compliant dust and water resistance, and MIL-STD-810H certified for shock and vibration
• Wide Power & Temperature Range: Operates from -30°C~60°C with a wide-range 8~36VDC vehicle power input
• OS Support: Compatible with Windows 11 Pro, Windows 10 Pro, and Windows 10/11 IoT Enterprise LTSC
• Flexible Mounting: Supports standard VESA 75 and VESA 100 mounting patterns
• Integrated Front Keypad: Built-in power, brightness, and volume controls, a full 0-9 numeric keypad, and six user-defined function keys (F1–F6)
