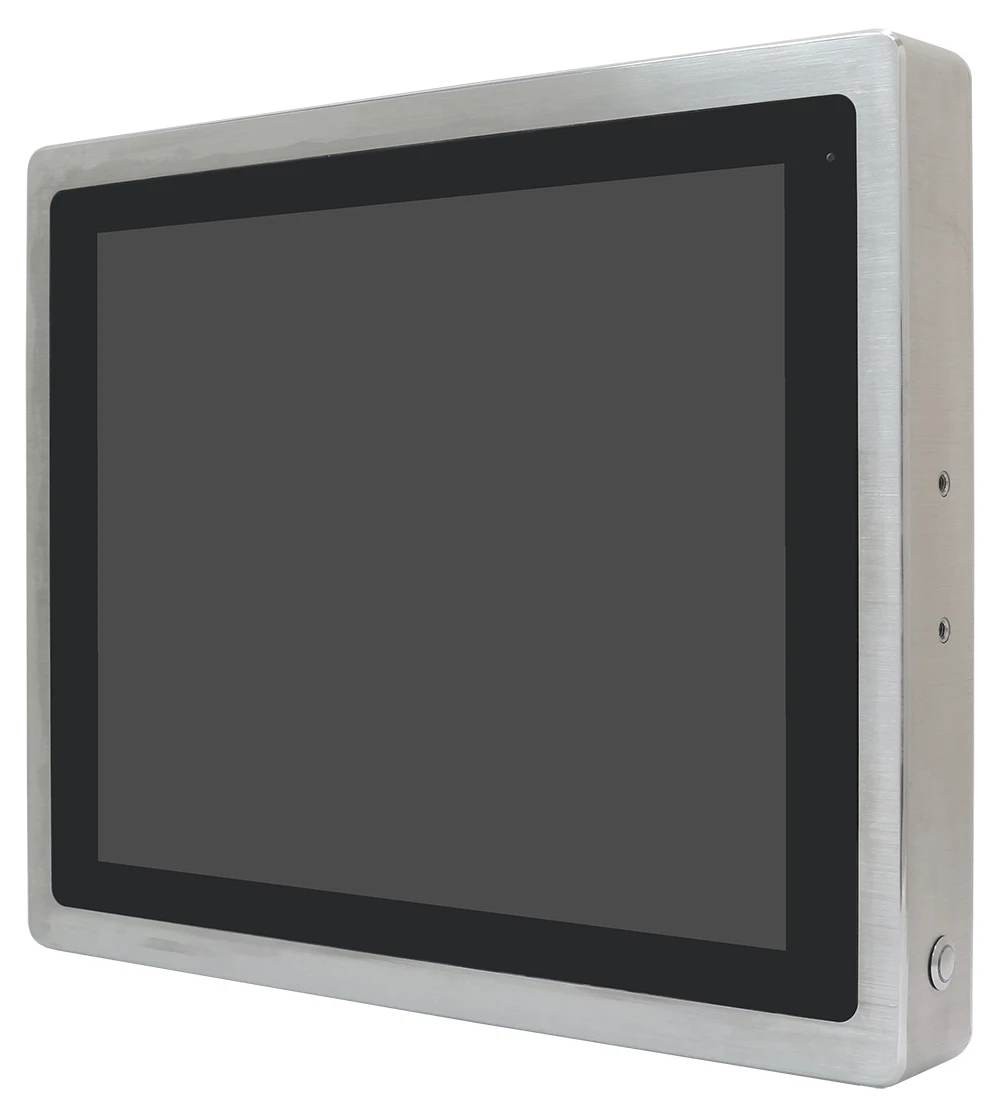

The ViTAM-917B is a 17” (1280 x 1024) fully sealed IP66/69K Stainless Steel Panel PC solution. Just like other models in the ViTAM series, the ViTAM-917B has a wide range of rugged/hygienic features and customisable options. These features make it ideal for a wide variety of applications where hygiene and sanitation is a requirement, including food and beverage processing & manufacturing, pharmaceutical manufacturing & packaging, biotechnology and cosmetics manufacturing.

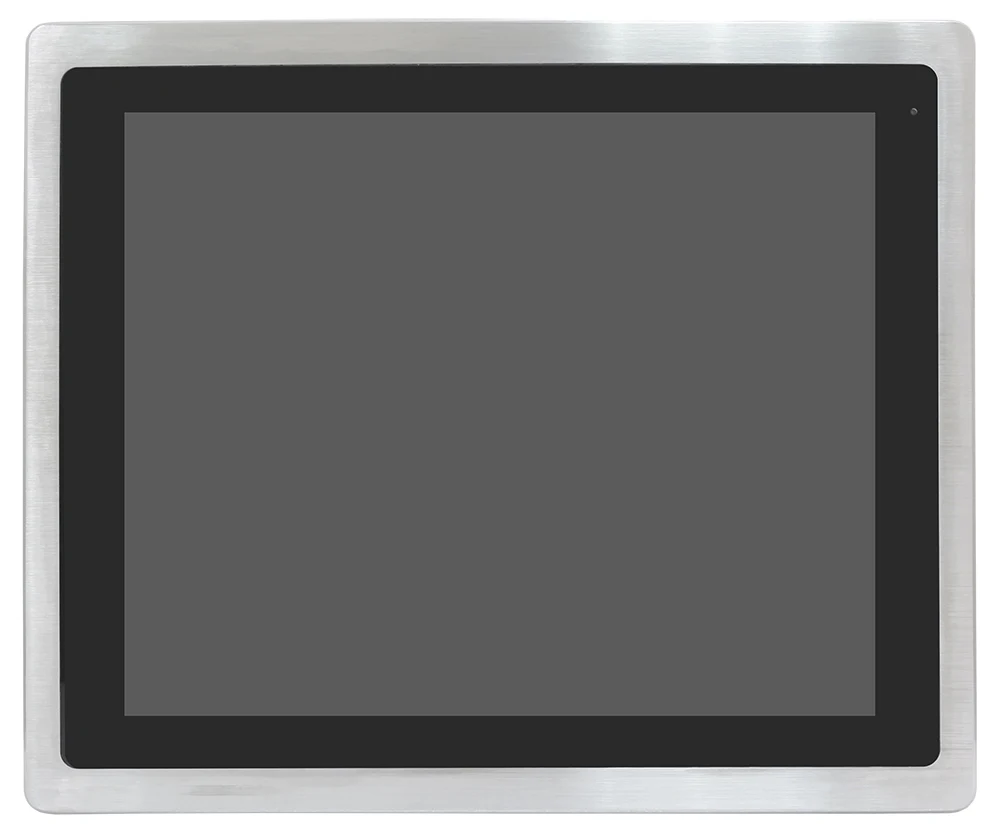

This new generation Panel PC is powered by an 8th Generation Intel Core i3-8145UE / Core i5-8365UE onboard CPU and supports up to 64GB DDR4 RAM. The 17” (1280 x 1024) TFT-LCD display is seamlessly integrated into the chassis with a true flat front bezel design. The ViTAM-917B also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection. Optional high brightness features also help to make the screen visible in increased sunlight areas, making it ideal for a range of applications and environments, including outdoors.

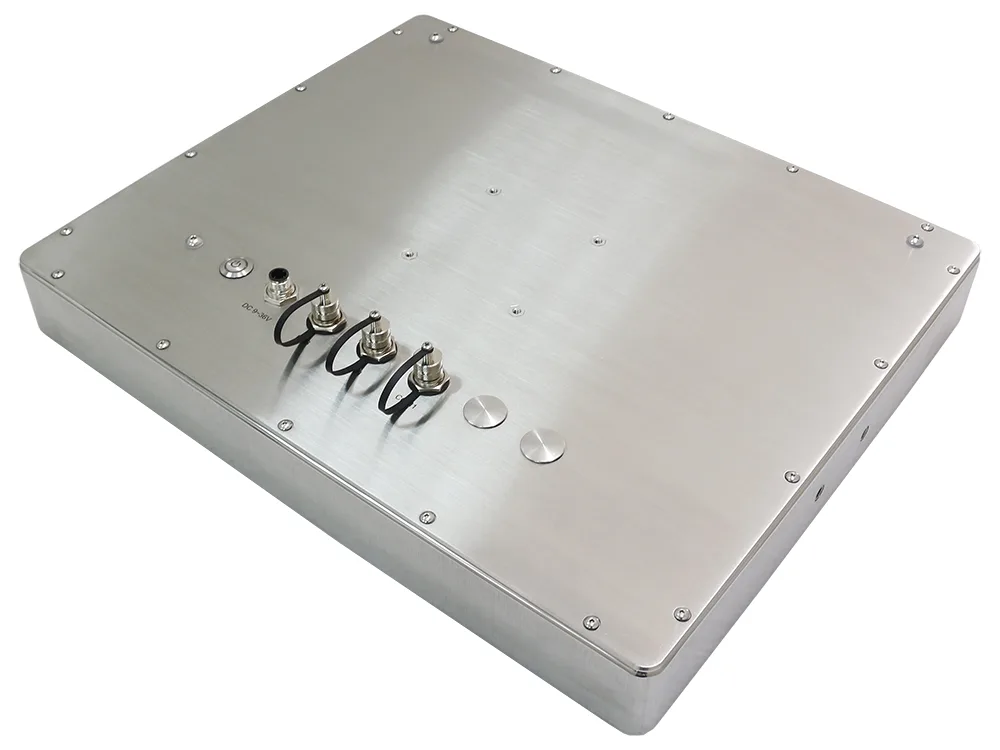

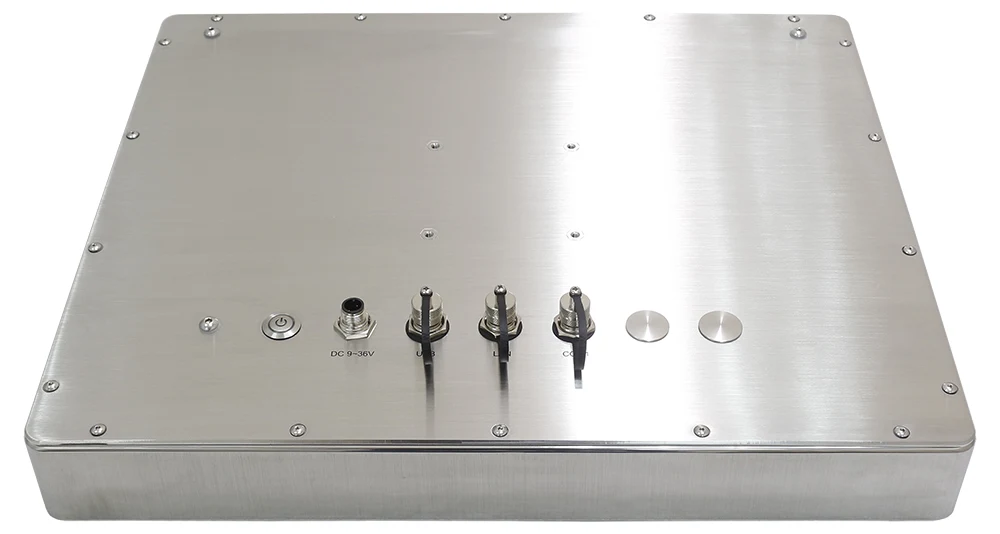

The ViTAM-917B is fully enclosed with SUS304 (optional SUS316) stainless steel which provides anti-corrosion, anti-bacterial, and anti-oxidation protection, making it durable and rugged, even when it is exposed to harsh conditions. It also features IP66/69K water and dust protection, a fanless design, and M12 connectors for the I/O ports (2 x USB2.0, 1 x RS-232/422/485, and 1 x LAN, as well as 2 additional configurable ports), which helps to prevent any water, dirt or grime entering the system. It is also able to operate under a wide temperature range (0~50°C) and is able to resist high pressure cleaning. These industrial-grade features provide 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged enclosure.

Furthermore, to assist with cleaning of the display, the ViTAM-917B includes a touch on/off button that allows the touch screen to be temporarily disabled during the cleaning process. This allows the display to be hygienically wiped down without having to shut down any process control applications. The ViTAM-917B also features a range of versatile mounting solutions including, floor stands, swing arms, Yoke mounts, and VESA mounts, making it suitable for most environments.

ViTAM-9B benefits

Key Features:

  • 8th Gen. Intel Core i3-8145UE / Core i5-8365UE Onboard CPU
  • True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
  • IP66/IP69K Rated with M12 Connectors
  • Touch on/off Button on the Side Edge for Hygienic Cleaning
  • Projected Capacitive / Resistive Touch

Data Sheets (PDF)

Product Downloads PDF Icon

ViTAM-917B Series Data Sheet

Product Downloads PDF Icon

ViTAM-x17 Series Yoke Mounting Kit Technical Drawing

Product Downloads PDF Icon

W-101 Technical Drawing

Product Information

Part Numbers

Details

VITAM-917BG

17inch 1280x1024 fanless IP66/IP69K Stainless Steel 304 PanelPC, Intel i3-8145UE 2.2GHz processor, protective glass, 2xUSB2.0, Gbe, 1 ser, 1xssd bay, 1xM.2 2280, 1xM.2 2230, 9-36VDC input

VITAM-917BP

17inch 1280x1024 fanless IP66/IP69K Stainless Steel 304 PanelPC, Intel i3-8145UE 2.2GHz processor, proj cap touch, 2xUSB2.0, Gbe, 1 ser, 1xssd bay, 1xM.2 2280, 1xM.2 2230, 9-36VDC input

VITAM-917BR

17inch 1280x1024 fanless IP66/IP69K Stainless Steel 304 PanelPC, Intel i3-8145UE 2.2GHz processor, resistive touch, 2xUSB2.0, Gbe, 1 ser, 1xssd bay, 1xM.2 2280, 1xM.2 2230, 9-36VDC input

Processor Upgrade Options

Details

VITAM-9XXB_I3_I5_UPG

Upgrade from i3-8145UE 2.2GHz 2C/4T 4MB cache to i5-8365UE 1.6GHz 4C/8T 6MB cache CPU

Memory Options

Details

VITAM-9XXB_4GB

4GB RAM for VITAM-9XXB series

VITAM-9XXB_8GB

8GB RAM for VITAM-9XXB series

VITAM-9XXB_16GB

16GB RAM for VITAM-9XXB series

Accessories

Details

ViTAM-X15-YOKE

ViTAM-x15 Series Yoke Mounting Kit

W-101

Stainless Steel VESA 100x100 Mounting Kit

Other Options

Details

TB-528CAN2

2xCANbus expansion card ARCHMI/VITAM-x1x/x2x series

TB-528U4

4xUSB2.0 expansion card ARCHMI/VITAM-x1x/x2x series

UPG-S_S316L-15-6SIDE

Upgrade 15inch stainless steel 304 stainless steel 316L for fully sealed APC-3593/3597B/3595/VITAM-x15

VITAM-X15-SR_OB

Upgrade VITAM-x15 to 1000nits sunlight readable with optical bonding

Power Supply Options

Details

VITAM-PS-IP65

VITAM IP65 AC/DC 60W power pack
