AUHMI-921C Series

The AUHMI-921C series is a 21.5” (1920 x 1080) rugged industrial all-in-one HMI Panel PC. The AUHMI-921C series features a powerful Intel Tiger Lake 11th generation energy efficient Core i3/i5 processor with up to 64Gb of DDR4 RAM.

The AUHMI-921C series has an IP66 certified front bezel, a new modern design, with ultra-narrow frame, slim profile, and new fast mounting kit. It is constructed using an aluminium die-cast and fanless design, making it rugged, while still maintaining good heat dissipation. It has the ability to operate continuously for long periods of time under wide temperature ranges of 0°C~50°C. This updated design provides a modern stylish look, decreases system weight, and also improves water and dust protection by eliminating the need for mounting holes on the chassis. It also offers 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged enclosure.

The AUHMI-921C features a 21.5” TFT-LCD display with a 1920 x 1080 resolution. The projected capacitive touch screen with multi-touch support, and anti-scratch surface helps to improve usability, while also providing the screen with tough protection. Optional auto dimming, 1000nits high brightness, and optical bonding & AR coating, makes the AUHMI-921C series perfect for a range of applications, no matter the environment or weather.

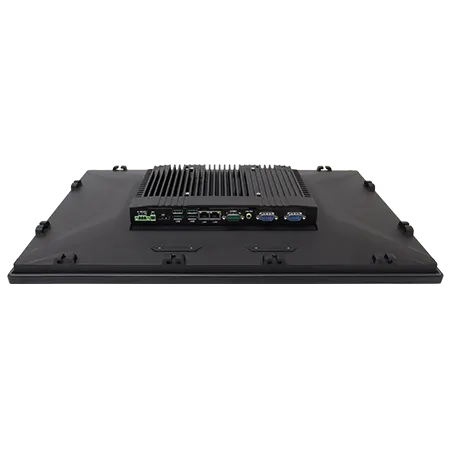

The AUHMI-921C series comes standard with 1 x DP/HDMI graphics output allowing users to connect an additional screen, audio line out, 1 x GbE and 1 x 2.5GbE LAN ports, 4 x USB3, and 2 x series ports. It also features a mini-PCIe slot and an M.2 expansion slot allowing for a wide range of optional expansion to suit your needs including, Power over Ethernet (PoE), 5G, Wi-Fi 6, CAN bus, as well as additional Serial, LAN or USB ports that can be added. The AUHMI-921C series also offers the optional smart battery backup feature, providing an emergency backup power source to protect data and the system from unexpected power outages.

The AUHMI-921C series supports Windows 10 IoT and Windows 11, helping to future-proof any applications that may be required. The AUHMI-921C series can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience. The new fast mounting kit provides rapid positioning, with special fasteners that only require two screws to assemble, remove or install. Furthermore, with the special modular design and functionality of the box PC at the back of the AUHMI series, it can easily be interchanged between the different panel sizes of the AUHMI series, allowing for further flexibility.

Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.

Key Features:

• 21.5” Industrial Compact Size Panel PC
• 11th Gen. Intel Core i3/i5 Processor
• 2 x 260-pin SO-DIMM DDR4 slot, up to 64GB
• Flat Front Panel Touch Screen with IP66 front bezel
• 1920 x 1080 resolution
• Fanless Design
• DC 9~36V Wide-Ranging Power Input
• Supports Expansion via Full-size Mini-PCIe and M.2 slots
• Supports TPM2.0 hardware security
• Optional High Brightness - 1000nits
