AUHMI-910C Series

Product Overview

Industrial Compact 10.1" HMI Controller, Intel 11th Generation Core i3/i5 Processors

Features Include:

  • IP66 Front Bezel
  • Gen 11 Core i3 / i5 supporting up to 64GB RAM
  • 9-36VDC input
  • M.2 & mini-PCIe expansion slots
  • View More

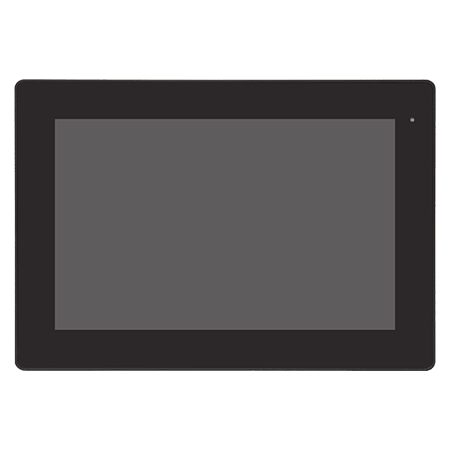

Panel PCs & HMI Controllers AUHMI-910C Series Main Product Image
Panel PCs & HMI Controllers AUHMI-910C Series Product Image 2

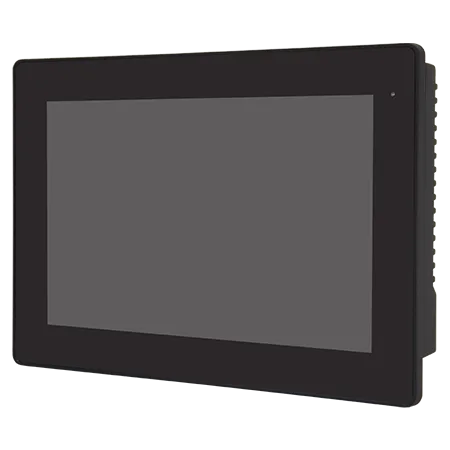

Panel PCs & HMI Controllers AUHMI-910C Series Product Image 3

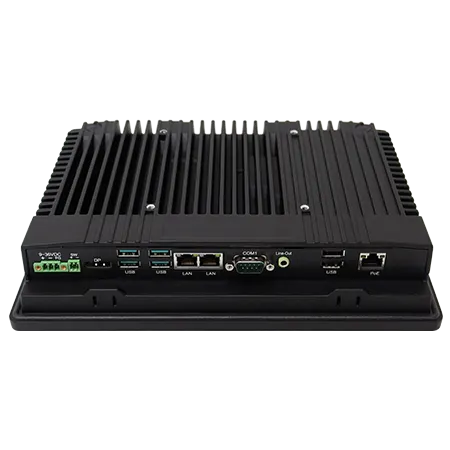

Panel PCs & HMI Controllers AUHMI-910C Series Product Image 4

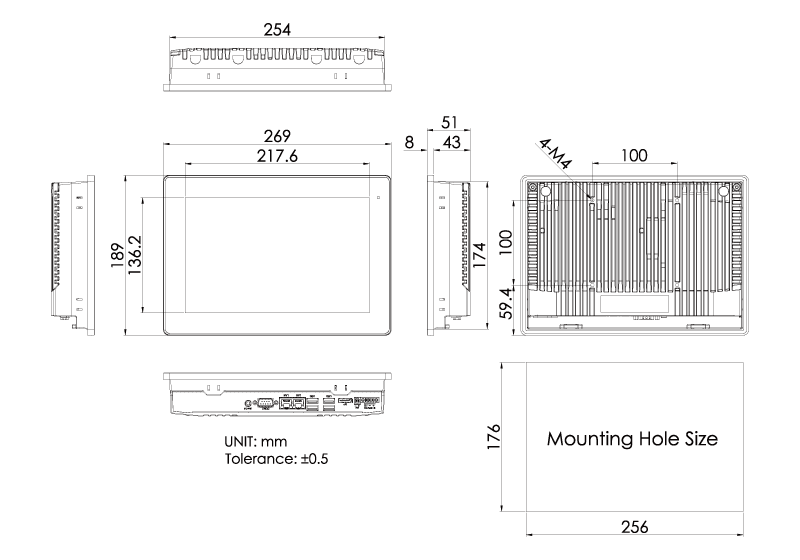

Panel PCs & HMI Controllers AUHMI-910C Series Product Image 5

The AUHMI-9C series features a powerful Intel Tiger Lake 11th generation energy efficient Core i3/i5 processor with up to 64GB of DDR4 RAM. The AUHMI-910C comes with a 10.1” TFT-LCD screen and has an IP66 certified front bezel.

The AUHMI-9C series has a new modern design, with ultra-narrow frame, slim profile, a fanless silver aluminium chassis and new fast mounting kit. This updated design provides a modern stylish look, decreases system weight, and also improves water and dust protection by eliminating the need for mounting holes on the chassis. It also offers 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged enclosure.

The projected capacitive touch screen with multi-touch support, and anti-scratch surface helps to improve usability, while also providing the screen with tough protection. Optional auto dimming, 1,000nits high brightness, and optical bonding & AR coating, makes the AUHMI-9C series perfect for a range of applications, no matter the environment or weather.

The AUHMI-9C series offers a wide range of optional expansions to suit your needs including, Power over Ethernet (PoE), 5G, Wi-Fi 6, CAN bus, as well as additional Serial, LAN or USB ports that can be added.

The AUHMI-9C series also offers the optional smart battery backup feature, providing an emergency backup power source to protect data and the system from unexpected power outages. The HELIO-9C series can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

Key Features:

  • IP66 Front Bezel
  • Gen 11 Core i3 / i5 supporting up to 64GB RAM
  • 9-36VDC input
  • M.2 & mini-PCIe expansion slots
  • Optional 1000nits high brighthess
  • Optional Resistive or Projected Capacitive Touch

Data Sheets (PDF)

Product Downloads PDF Icon

AUHMI-910C Series Data Sheet

Part Numbers

Details

AUHMI-910CP

10inch 1280x800 fanless PanelPC, Intel i3-1115G4E 2.2GHz processor, proj cap touchscreen, 4 USB3.0, 2 Gbe, 2 ser, audio, DP, M.2 ssd, 1xMini-PCIe, M.2 2230, 9-36VDC input

Processor Upgrade Options

Details

AUHMI-9XXC_I3_I5_UP

Upgrade from i3-6100U 2.3GHz to i5-6300U 2.4GHz CPU
