ARCHMI-816B Series

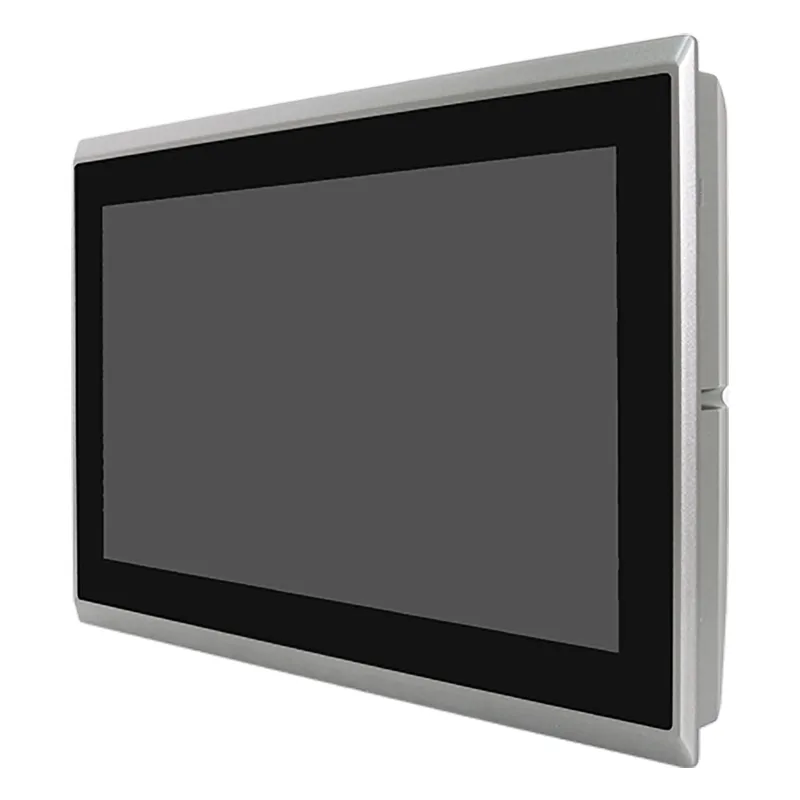

The ARCHMI-816B series is a 15.6" HD/FHD (1366 x 768 (default) 1920 x 1080 (optional)) Industrial Panel PC with a rugged design ideal for harsh industrial environments. It features a cost-effective, yet still powerful Intel Celeron J6412 Processor with up to 32GB of DDR4 RAM. It also supports Windows 10 & 11 making it suitable for both current and future applications. With these features the ARCHMI-816B offers a cost-effective solution that is suitable for an ever-changing industry.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCHMI-816B also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-816B series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

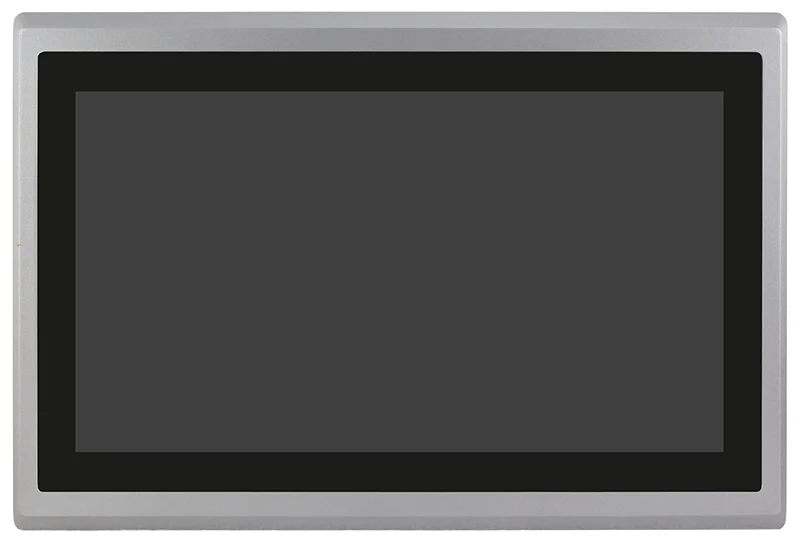

The ARCHMI-816B features a 15.6" TFT-LCD with a HD 1366 x 768 (default) or FHD 1920 x 1080 (optional) resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection. Optional auto dimming, 1,000nits high brightness, optical bonding, and AR coating makes the ARCHMI-816B perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, kiosks and ATMs.

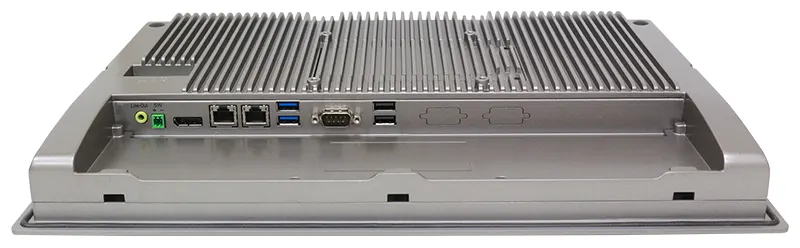

The ARCHMI-816B includes: 2 x USB3.2 & 2 x USB2.0, 1 x RS-232/422/485, and 2 x 2.5GbE LAN ports as well as a DisplayPort/HDMI output which enables users to connect an additional monitor when required. It also has support for expansion via 1 x full-size Mini-PCIe and 1 x M.2 slot. The ARCHMI-810B offers a wide range of optional expansions to suit your needs including USB, COM, CAN, LAN, 4G, WiFi, or BT ports.

The ARCHMI-816B has a wide operating temperature range of 0~50˚C (optional -20~60˚C). It also features a wide power input range of DC 9~36V. It can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-816B ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging and warehousing. Download the data sheet for more technical details, or contact us via the “Request a Quote” tab so that we can help you to customise a solution that is right for your application.

Key Features:

• 15.6" HD/FHD Industrial Compact Panel PC
• Intel Celeron J6412 Processor
• 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
• Flat Front Panel Touch Screen with IP66 Front Bezel
• Supports Expansion via Full-size Mini-PCIe and M.2 slots
• Supports TPM2.0 Hardware Security
• DC 9~36V Wide Range Power Input
• Optional High Brightness 1000nits
• Wide Range Operating Temperature: 0~50˚C (optional -20~60˚C)
