ARCHMI-824B Series

The ARCHMI-824B series is a 23.8” (1920 x 1080) rugged touch Panel PC with a ruggedized design ideal for harsh industrial environments. It features a cost-effective, yet still powerful Intel Celeron J6412 Processor with up to 32GB of DDR4 RAM. It also supports Windows 10 & 11 making it suitable for both current and future applications. With these features the ARCHMI-824B offers a cost-effective solution that is suitable for an ever-changing industry.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCHMI-824B also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-824B series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

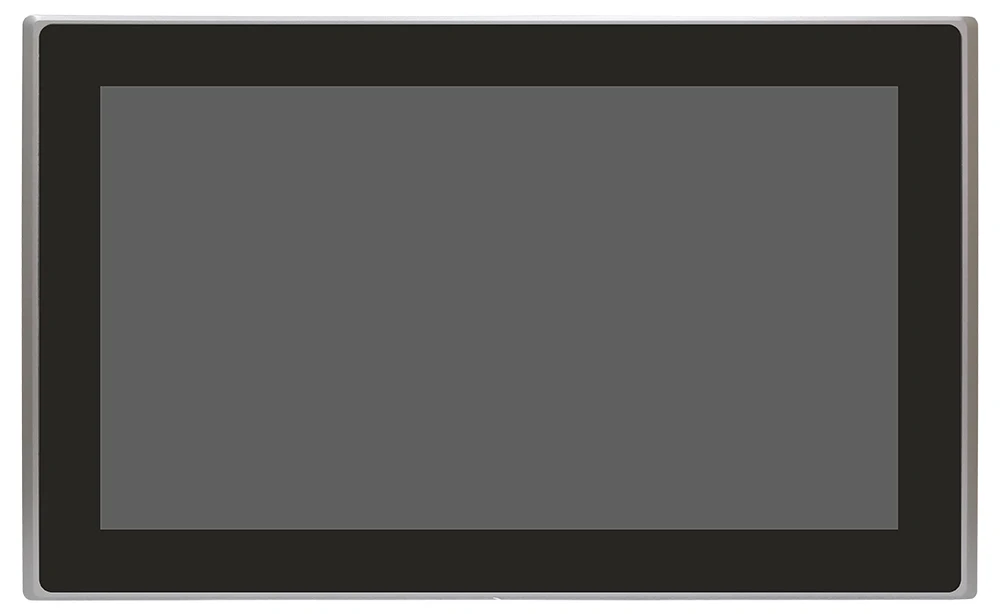

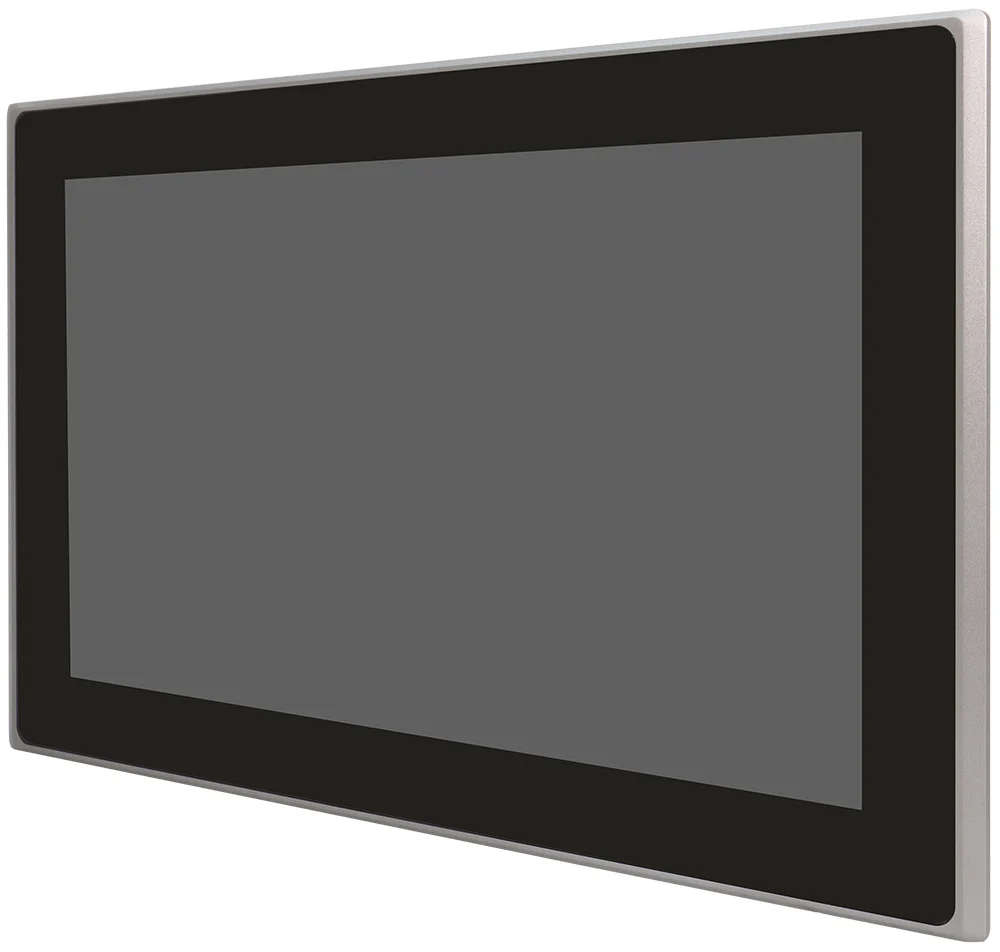

The ARCHMI-824B features a 23.8” TFT-LCD with a 1920 x 1080 resolution. It also supports projected capacitive touch, a rugged option with anti-scratch protection. Optional auto dimming, 1,000nits high brightness, optical bonding, and AR coating makes the ARCHMI-824B perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, kiosks and ATMs.

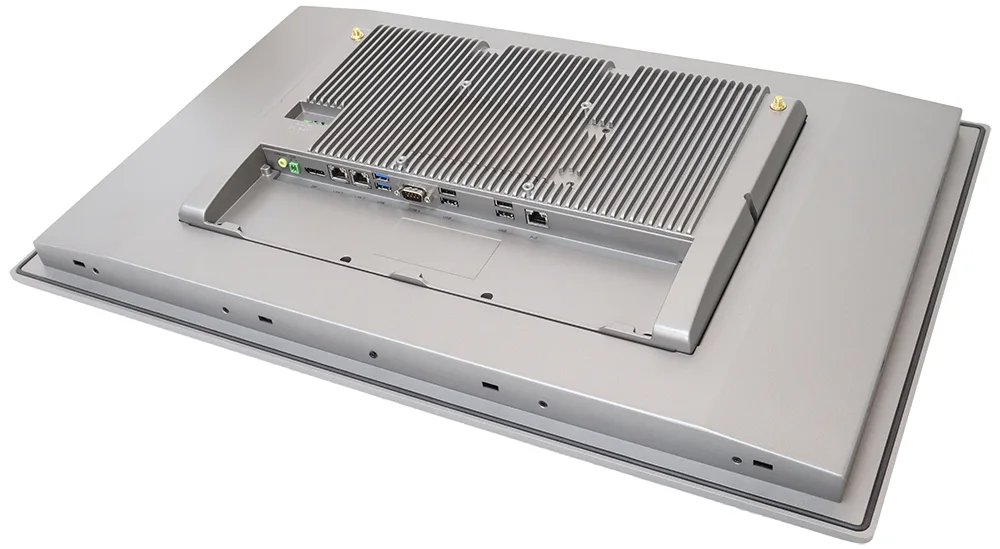

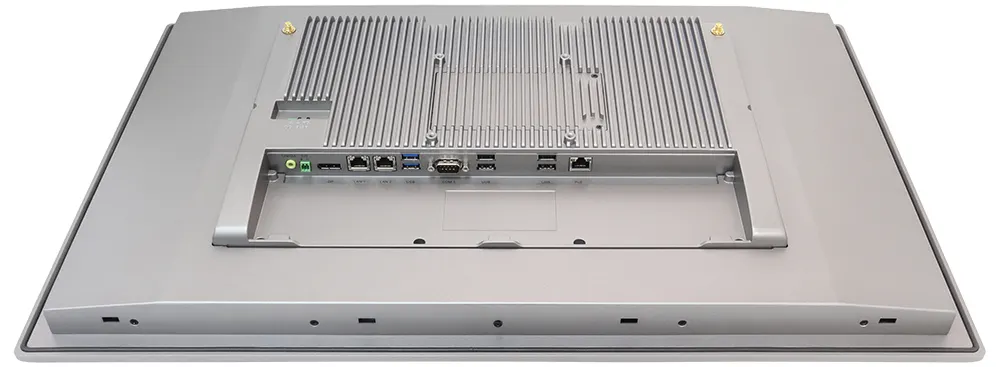

The ARCHMI-824B includes: 2 x USB3.2 & 2 x USB2.0, 1 x RS-232/422/485, and 2 x 2.5GbE LAN ports as well as a DisplayPort/HDMI output which enables users to connect an additional monitor when required. It also has support for expansion via 1 x full-size Mini-PCIe and 1 x M.2 slot. The ARCHMI-824B offers a wide range of optional expansions to suit your needs including USB, COM, CAN, LAN, 4G, WiFi, or BT ports.

The ARCHMI-824B has a wide operating temperature range of 0~50˚C. It also features a wide power input range of DC 9~36V. It can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-824B ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging and warehousing. Download the data sheet for more technical details, or contact us via the “Request a Quote” tab so that we can help you to customise a solution that is right for your application.

Key Features:

• 23.8" TFT-LCD Industrial Panel PC
• Intel Celeron J6412 Processor
• IP66 Compliant Aluminium Front Bezel
• Supports 2 x DDR4 SO-DIMM Socket, Up to 32GB
• Projected Capacitive Multi-Touch Touch Screen
• 1920 x 1080 Resolution
• 2 x USB 3.2 Type A + 2 USB 2.0 Type A
• 1 x RS-232/422/485
• 1 x DisplayPort/HDMI Port
• 2 x LAN
• Fanless Design
• Wide Operating Temperature Range: 0~50˚C
• DC 9~36V Wide-Range Power Input
• Support Expansion via Full-size Mini-PCIe and M.2 slots
• Supports Windows 10 IoT / 11
• Optional High Brightness (1000nits) & Auto-Dimming
