ARCHMI-812WB Series

Product Overview

12.1" Widescreen Industrial Compact Panel PC, Intel Celeron J6412 Processor, IP66 Front Bezel, Windows 10/11 Support, High Bright. Option

Features Include:

  • 12.1" Widescreen Industrial Compact Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • View More

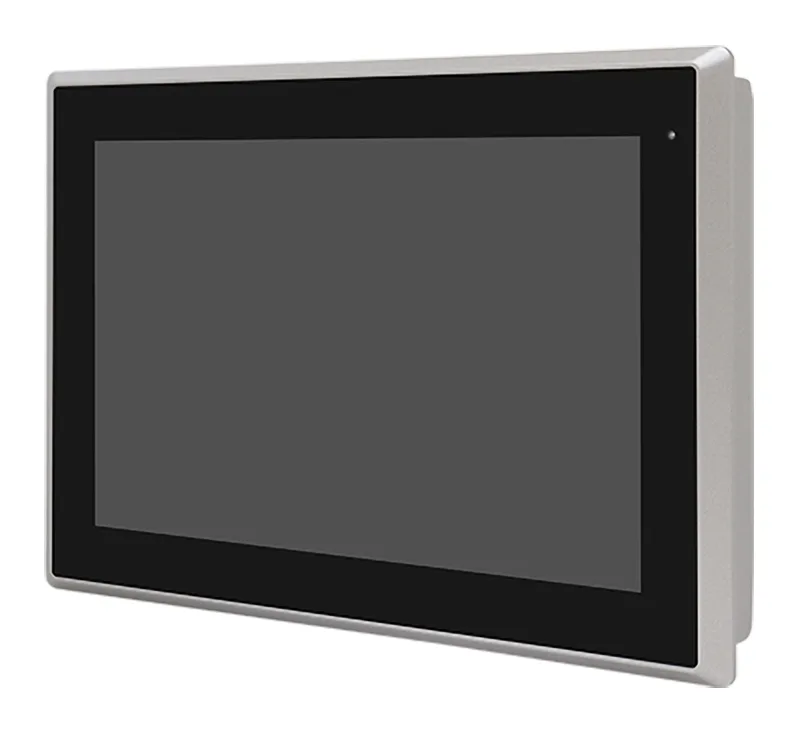

Panel PCs & HMI Controllers ARCHMI-812WB Series Main Product Image
Panel PCs & HMI Controllers ARCHMI-812WB Series Product Image 2

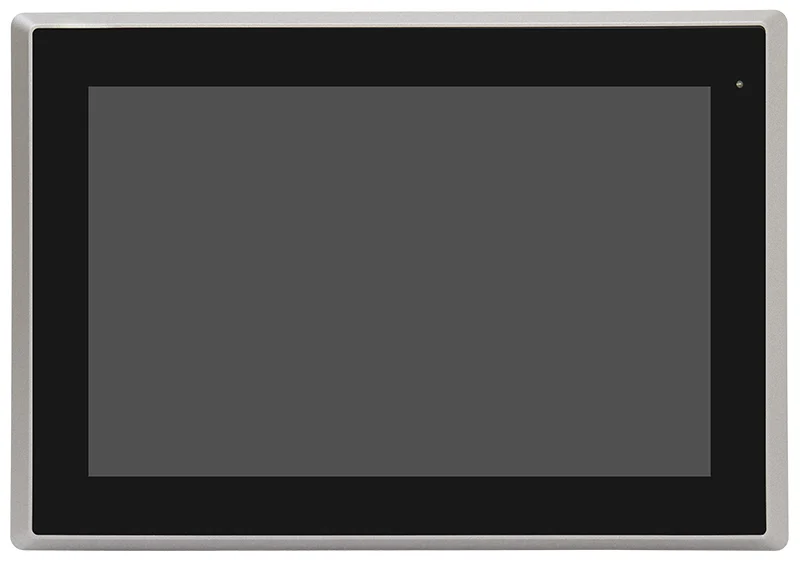

Panel PCs & HMI Controllers ARCHMI-812WB Series Product Image 3
Panel PCs & HMI Controllers ARCHMI-812WB Series Product Image 4

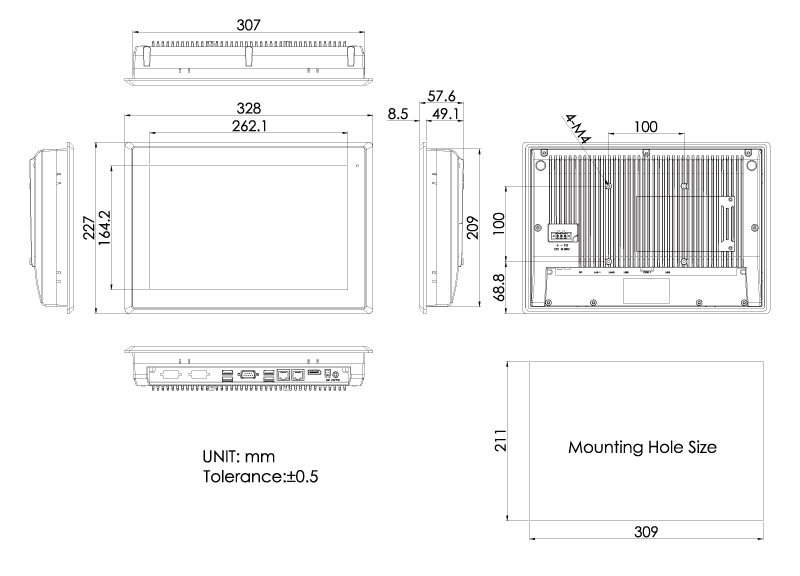

Panel PCs & HMI Controllers ARCHMI-812WB Series Product Image 5

The ARCHMI-812WB series is a widescreen 12.1" (1280 x 800) Industrial Panel PC with a rugged design ideal for harsh industrial environments. It features a cost-effective, yet still powerful Intel Celeron J6412 Processor with up to 32GB of DDR4 RAM. It also supports Windows 10 & 11 making it suitable for both current and future applications. With these features the ARCHMI-812WB offers a cost-effective solution that is suitable for an ever-changing industry.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCHMI-812WB also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-812WB series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

The ARCHMI-812WB features a 12.1" TFT-LCD with a widescreen 1280 x 800 resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection. Optional auto dimming, 1,000nits high brightness, optical bonding, and AR coating makes the ARCHMI-812WB perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, kiosks and ATMs.

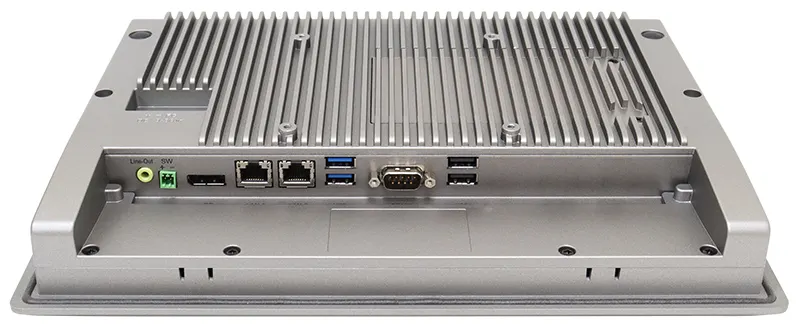

The ARCHMI-812WB includes: 2 x USB3.2 & 2 x USB2.0, 1 x RS-232/422/485, and 2 x 2.5GbE LAN ports as well as a DisplayPort/HDMI output which enables users to connect an additional monitor when required. It also has support for expansion via 1 x full-size Mini-PCIe and 1 x M.2 slot. The ARCHMI-812WB offers a wide range of optional expansions to suit your needs including USB, COM, CAN, LAN, 4G, WiFi, or BT ports.

The ARCHMI-812WB has a wide operating temperature range of 0~50˚C (optional -20~60˚C). It also features a wide power input range of DC 9~36V. It can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-812WB ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging and warehousing. Download the data sheet for more technical details, or contact us via the “Request a Quote” tab so that we can help you to customise a solution that is right for your application.

Key Features:

  • 12.1" Widescreen Industrial Compact Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • Supports Expansion via Full-size Mini-PCIe and M.2 slots
  • Supports TPM2.0 Hardware Security
  • DC 9~36V Wide Range Power Input
  • Optional High Brightness 1000nits
  • Wide Range Operating Temperature: 0~50˚C (optional -20~60˚C)

Data Sheets (PDF)

Product Downloads PDF Icon

ARCHMI-812WB Series Data Sheet

Part Numbers

Details

ARCHMI-812WB

12.1inch 1280 x 800 fanless PanelPC, Intel Celeron J6412 2GHz processor, resistive touchscreen, 2 USB3.2, 2 USB2, 2x2.5Gbe, ser, audio, DP, 1xM.2 ssd, mini-PCIe and M.2 slots, 9-36VDC input

ARCHMI-812WBP

12.1inch 1280 x 800 fanless PanelPC, Intel Celeron J6412 2GHz processor, projected capacitive touchscreen, 2 USB3.2, 2 USB2, 2x2.5Gbe, ser, audio, DP, 1xM.2 ssd, mini-PCIe and M.2 slots, 9-36VDC input
