ARCHMI-812B Series

Product Overview

12.1" Industrial Compact Panel PC, Intel Celeron J6412 Processor, IP66 Front Bezel, Windows 10/11 Support, High Bright. Option

Features Include:

  • 12.1" Industrial Compact Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • View More

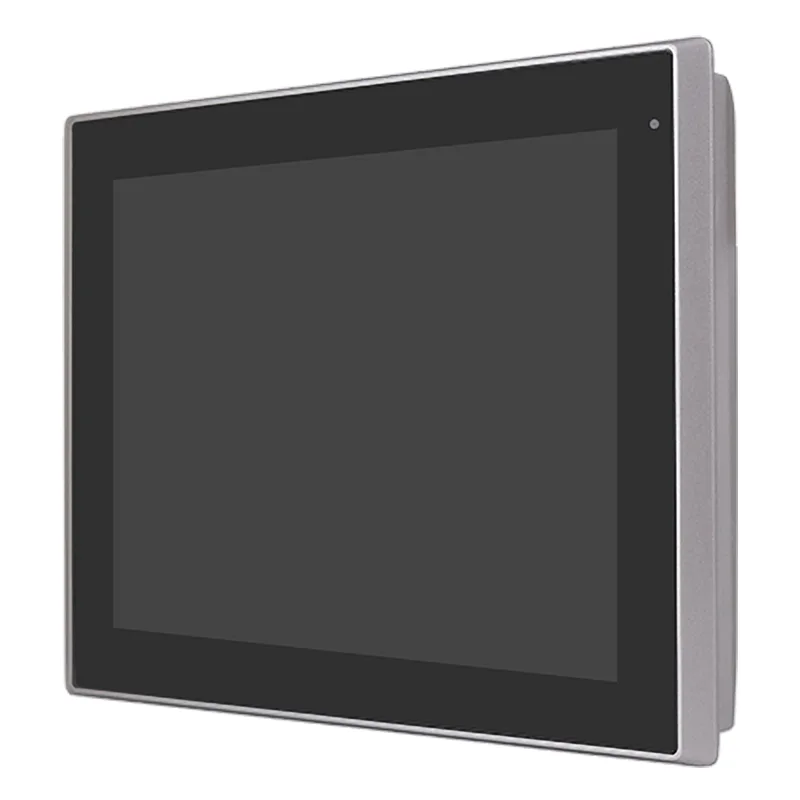

Panel PCs & HMI Controllers ARCHMI-812B Series Main Product Image
Panel PCs & HMI Controllers ARCHMI-812B Series Product Image 2

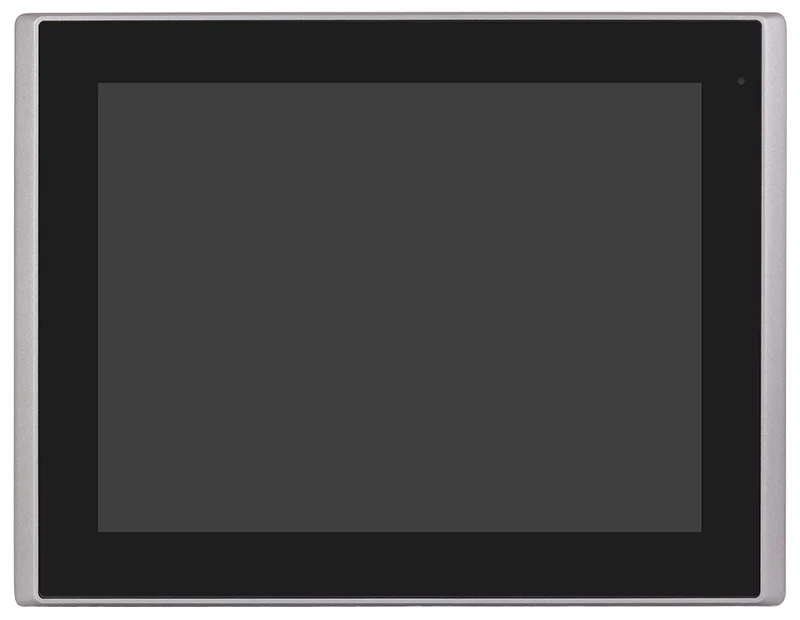

Panel PCs & HMI Controllers ARCHMI-812B Series Product Image 3

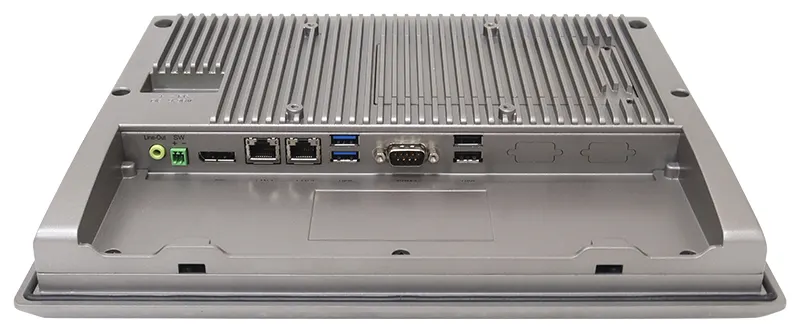

Panel PCs & HMI Controllers ARCHMI-812B Series Product Image 4

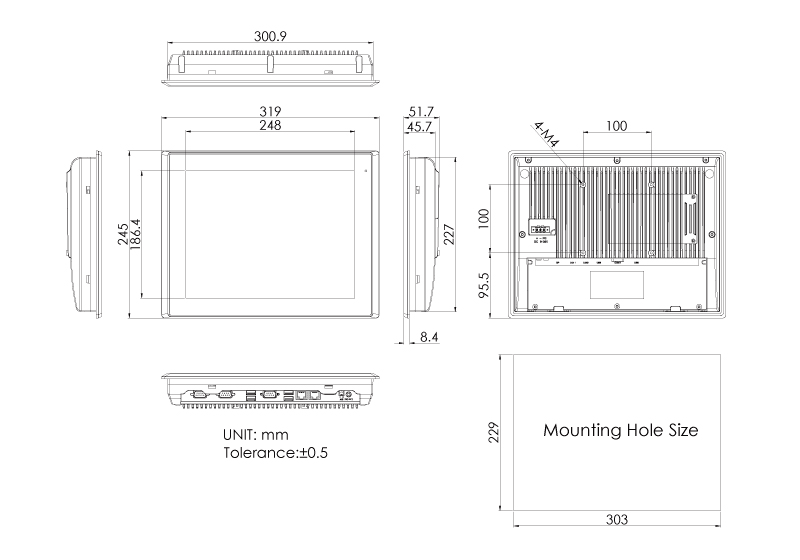

Panel PCs & HMI Controllers ARCHMI-812B Series Product Image 5

The ARCHMI-812B series is a 12.1" (800 x 600 (default) 1024 x 768 (optional)) Industrial Panel PC with a rugged design ideal for harsh industrial environments. It features a cost-effective, yet still powerful Intel Celeron J6412 Processor with up to 32GB of DDR4 RAM. It also supports Windows 10 & 11 making it suitable for both current and future applications. With these features the ARCHMI-812B offers a cost-effective solution that is suitable for an ever-changing industry.

The IP66 certified front panel provides water and dust protection, ideal for harsh environments. The ARCHMI-812B also features a rugged fanless aluminium die-cast chassis, and a compact profile suitable for space-saving applications. The overall rugged design of the ARCHMI-812B series provides 24/7 reliability, makes it easy to clean, reduces maintenance cost, and provides a long-lasting rugged solution.

The ARCHMI-812B features a 12.1" TFT-LCD with an 800 x 600 (default) 1024 x 768 (optional) resolution. It also supports resistive touch, ideal for use with gloves or in areas where the display may be covered in liquid, dirt, or dust, or projected capacitive touch, a more rugged option with anti-scratch protection. Optional auto dimming, 1,000nits high brightness, optical bonding, and AR coating makes the ARCHMI-812B perfect for a range of applications, no matter the environment or weather. This makes it an excellent solution for outdoor applications, like EV charging stations, kiosks and ATMs.

The ARCHMI-812B includes: 2 x USB3.2 & 2 x USB2.0, 1 x RS-232/422/485, and 2 x 2.5GbE LAN ports as well as a DisplayPort/HDMI output which enables users to connect an additional monitor when required. It also has support for expansion via 1 x full-size Mini-PCIe and 1 x M.2 slot. The ARCHMI-810B offers a wide range of optional expansions to suit your needs including USB, COM, CAN, LAN, 4G, WiFi, or BT ports.

The ARCHMI-812B has a wide operating temperature range of 0~50˚C (optional -20~60˚C). It also features a wide power input range of DC 9~36V. It can be panel or VESA mounted, allowing the system to be ergonomically positioned for operator convenience.

The range of rugged features and customisable options makes the ARCHMI-812B ideal for a wide range of industrial solutions, including manufacturing, process control, automation, mining, transportation, EV Charging and warehousing. Download the data sheet for more technical details, or contact us via the “Request a Quote” tab so that we can help you to customise a solution that is right for your application.

Key Features:

  • 12.1" Industrial Compact Panel PC
  • Intel Celeron J6412 Processor
  • 1 x 260-pin SO-DIMM DDR4 slot, up to 32GB 3200MHz
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • Supports Expansion via Full-size Mini-PCIe and M.2 slots
  • Supports TPM2.0 Hardware Security
  • DC 9~36V Wide Range Power Input
  • Optional High Brightness 1000nits
  • Wide Range Operating Temperature: 0~50˚C (optional -20~60˚C)

Data Sheets (PDF)

Product Downloads PDF Icon

ARCHMI-812B Series Data Sheet

Part Numbers

Details

ARCHMI-812B

12.1inch 800 x 600 fanless PanelPC, Intel Celeron J6412 2GHz processor, resistive touchscreen, 2 USB3.2, 2 USB2, 2x2.5Gbe, ser, audio, DP, 1xM.2 ssd, mini-PCIe and M.2 slots, 9-36VDC input

ARCHMI-812BP

12.1inch 800 x 600 fanless PanelPC, Intel Celeron J6412 2GHz processor, projected capacitive touchscreen, 2 USB3.2, 2 USB2, 2x2.5Gbe, ser, audio, DP, 1xM.2 ssd, mini-PCIe and M.2 slots, 9-36VDC input
