ST-C6USBDP4K21GB-328

Product Overview

4K 60Hz DisplayPort USB KVM HDBaseT Extender with RS232 & Stereo Audio

Features Include:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz
  • Using HDBaseT-certified CAT6a cable, extend up to 328 feet (100 meters)
  • Support upto 4 USB2.0 ports
  • Extends RS-232 and audio
  • View More

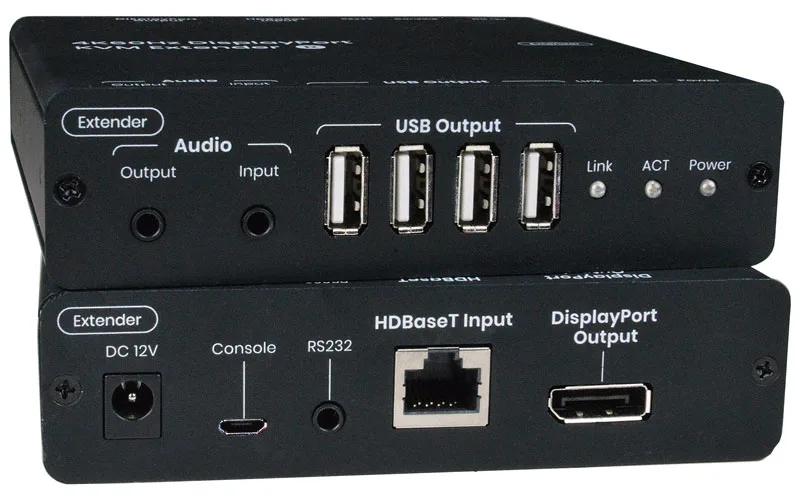

KVM Extenders & Splitters ST-C6USBDP4K21GB-328 Main Product Image
KVM Extenders & Splitters ST-C6USBDP4K21GB-328 Product Image 2

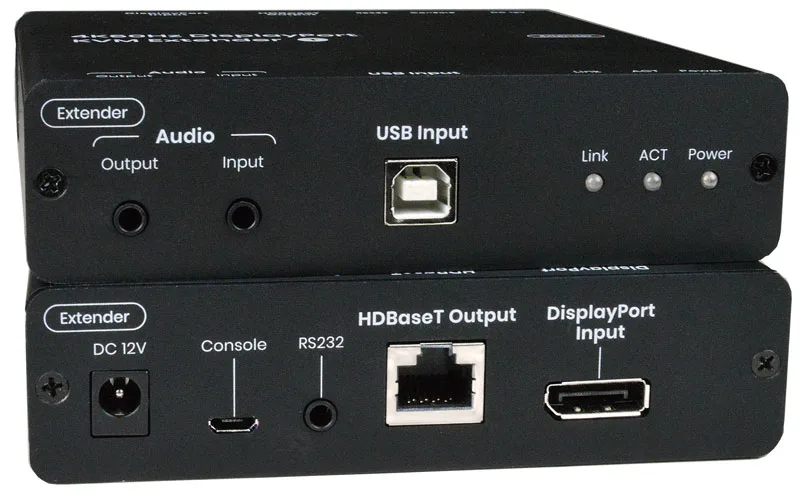

KVM Extenders & Splitters ST-C6USBDP4K21GB-328 Product Image 3

The XTENDEX® 4K DisplayPort USB KVM HDBaseT Extender transmits uncompressed digital Ultra-HD 4Kx2K 60Hz 4:4:4 DisplayPort signal, transparent USB, stereo audio, and RS232 up to 328 feet over a single HDBaseT-certified CAT6A cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a UHD DisplayPort display and USB 2.0 device.

  • Transmits an uncompressed high-speed DisplayPort signal over one CAT6a/7 cable using HDBaseT technology.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
    • Using HDBaseT-certified CAT6a cable, extend up to 328 feet (100 meters).
    • Using standard CAT6a/7 cable, extend up to 175 feet (53 meters).
  • DisplayPort features supported:
    • DisplayPort 1.2
    • 48-bit Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • LPCM, Dolby TrueHD, and DTS-HD Master Audio
  • HDCP 1.3 compliant.
  • Four USB 2.0 ports support fully transparent USB connections.
    • Extend USB devices such as a keyboard, mouse, game controller, USB flash drive, touch screen monitor, whiteboard, etc.
    • Compliant with USB 2.0 (low/full/high speed) standards.
  • Supports DP-embedded digital audio and 3.5mm stereo audio input/output.
  • Supports full-duplex RS232 at 115200 baud.
  • Mounting brackets included for easy surface/wall mounting.

Key Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz
  • Using HDBaseT-certified CAT6a cable, extend up to 328 feet (100 meters)
  • Support upto 4 USB2.0 ports
  • Extends RS-232 and audio

Data Sheets (PDF)

Product Downloads PDF Icon

ST-C6USBDP4K21GB-328

Part Numbers

Details

ST-C6USBDP4K21GB-328

4K @ 60Hz DisplayPort USB KVM and RS-232 extender via cat 6, upto 328 feet
