ST-C6FOUSBDP4K-LC

Product Overview

4K 10.2Gbps DisplayPort USB KVM Extender via One CAT6/7 Cable or LC Singlemode/Multimode Fiber Optic Cable

Features Include:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Signal transmission via one CAT6/6a/7 cable up to 100m or one single-strand singlemode (up to 10km) or multimode (up to 500m) LC fiber optic cable.
  • HDCP compliant.
  • Four transparent USB ports for self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.) (Keyboard and mouse are hot-pluggable).
  • View More

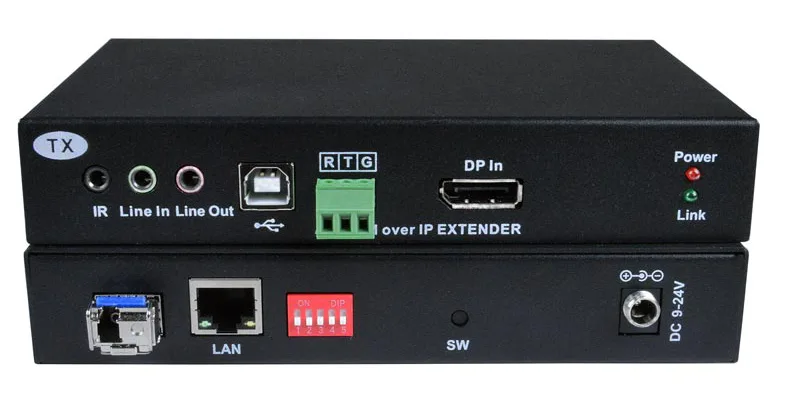

KVM Extenders & Splitters ST-C6FOUSBDP4K-LC Main Product Image
KVM Extenders & Splitters ST-C6FOUSBDP4K-LC Product Image 2

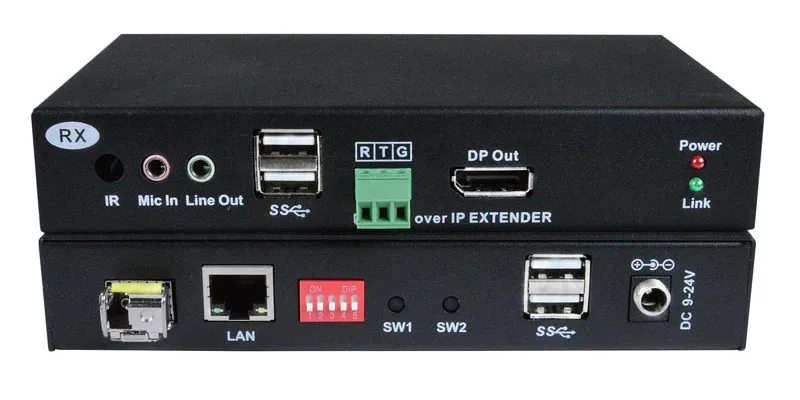

KVM Extenders & Splitters ST-C6FOUSBDP4K-LC Product Image 3

Extend an Ultra-HD 4Kx2K 30Hz DisplayPort monitor, audio, USB keyboard, USB mouse, and RS232 up to 100m via CATx or 10 km via fiber with the XTENDEX® ST-C6FOUSBDP4K-LC. The XTENDEX® 4K 10.2Gbps DisplayPort USB KVM Extender via CAT6/7 or Fiber provides remote KVM (USB keyboard, USB mouse and 4Kx2K 30Hz UHD DP monitor) access to a USB computer up to 100m away via CAT6/6a/7 cable, 10km via simplex LC singlemode fiber optic cable, or 500m via simplex LC multimode fiber optic cable.

Each KVM extender consists of a local unit that connects to a computer, and a remote unit that connects to a DisplayPort monitor, bi-directional 3.5mm stereo audio speakers and microphone, RS232, and up to four USB devices (keyboard, mouse, flash drive, HDD, touchscreen display, etc).

Signal transmission via one CAT6/6a/7 cable or one single-strand singlemode/multimode LC fiber optic cable.

  • Using CAT6/6a/7 cable:

    • Extend a 4Kx2K signal up to 100m.

    • Extend a 1080p or 1920x1200 signal up to 150m.

  • Using singlemode 9-micron cable, extend to 10km.

  • Using multimode 50-micron cable, extend to 500m.

DisplayPort features supported:

  • DisplayPort 1.2

  • 36-bit Color

  • RGB, YCbCr 4:4:4, TCbCr 4:2:2

  • Dolby, DTS, Stereo, and LPCM Audio

  • Bandwidth up to 340 MHz (10.2 Gbps)



4K DisplayPort USB KVM Extender Diagram

Key Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Signal transmission via one CAT6/6a/7 cable up to 100m or one single-strand singlemode (up to 10km) or multimode (up to 500m) LC fiber optic cable.
  • HDCP compliant.
  • Four transparent USB ports for self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.) (Keyboard and mouse are hot-pluggable).
  • Supports Plug-and-Play specification.
  • Using an unmanaged Gigabit network switch, extend up to 32 pairs in Point-to-Point connections over IP.
  • Supports full-duplex RS232 up to 115200 baud.
  • EDID pass-through for the support of any DisplayPort monitor.
  • Mounting brackets included for easy surface/wall mounting.
