ST-C6USBDP4K-328

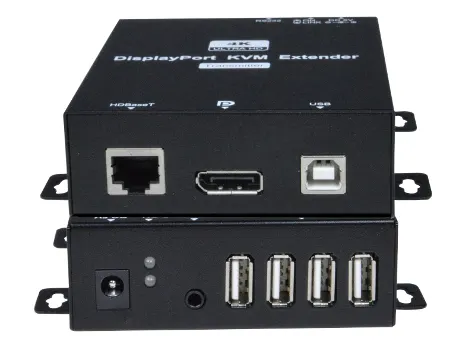

The XTENDEX® 4K DisplayPort USB KVM HDBaseT Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort signal, transparent USB, and RS232 up to 328 feet over a single CATx cable using HDBaseT technology. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a UHD DisplayPort display and four USB 2.0 devices.

• Transmits an uncompressed high speed DisplayPort signal over one CAT6/6a/7 cable.
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
  • Extend 4Kx2K up to 328 (100 meters) feet over a CAT6/6a/7 cable.
  • Extend 1080p and 1920x1200 up to 492 (150 meters) feet over CAT6/6a/7 cable.
• DisplayPort features supported:
  • DisplayPort 1.2a
  • 48-bit Color
  • RGB, YCbCr 4:4:4
  • LPCM, Dolby TrueHD, and DTS-HD Master Audio
  • 3D
• HDCP compliant.
• Four USB 2.0 ports support fully transparent USB connections.
  • Extend USB devices such as a keyboard, mouse, game controller, USB flash drive, touch screen monitor, whiteboard, etc.
  • Compliant with USB 2.0 (low/full/high speed) standards.
• Supports full-duplex RS232 at 115200 baud.
• Integrated mounting brackets for easy surface/wall mounting.

Key Features:

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
• Extend 4Kx2K up to 328 feet (100 meters) over a CAT6/6a/7 cable
• Extends up to 4 USB2.0 ports
• Extends RS-232
