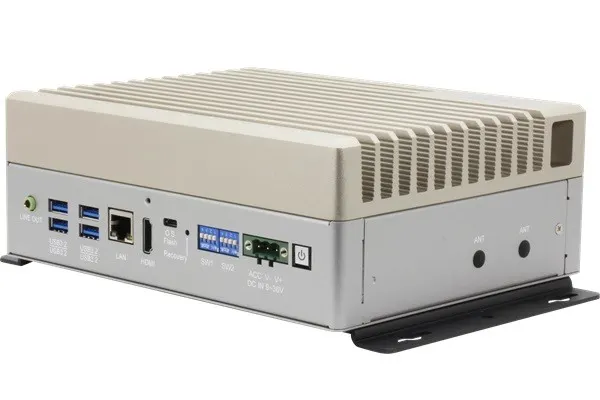

BOXER-8658AI
Product Overview
Fanless Edge AI PC, Jetson Orin NX, 8 PoE LAN, CANBus, dual SIM, GNSS, ignition delay for mobile AI deployments
Features Include:
- AI Accelerator: NVIDIA® Jetson Orin™ NX (8-core or 6-core Arm Cortex-A78AE)
- Memory Options: 8GB or 16GB LPDDR5
- Storage: 1 x 2.5” SATA bay, 1 x M.2 2280 NVMe M-Key
- Ethernet: 8 x GbE PoE/PSE (802.3af/at, max. 120W), 2 x GbE LAN
- View More

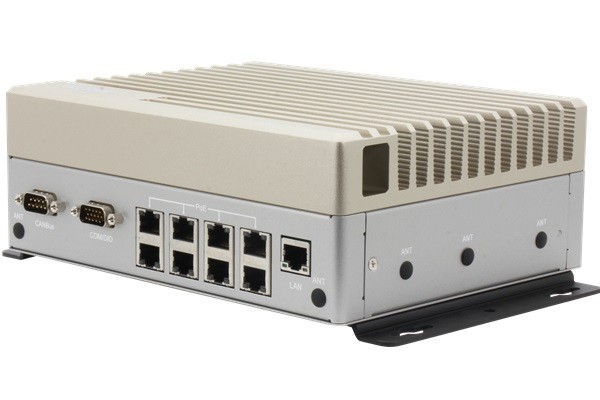

The BOXER-8658AI is a rugged, fanless embedded AI system designed for mobile and industrial environments, powered by the NVIDIA® Jetson Orin™ NX module. With up to 16GB LPDDR5 memory and support for advanced inference workloads, it is ideal for in-vehicle surveillance, edge analytics, and mobile NVR systems.

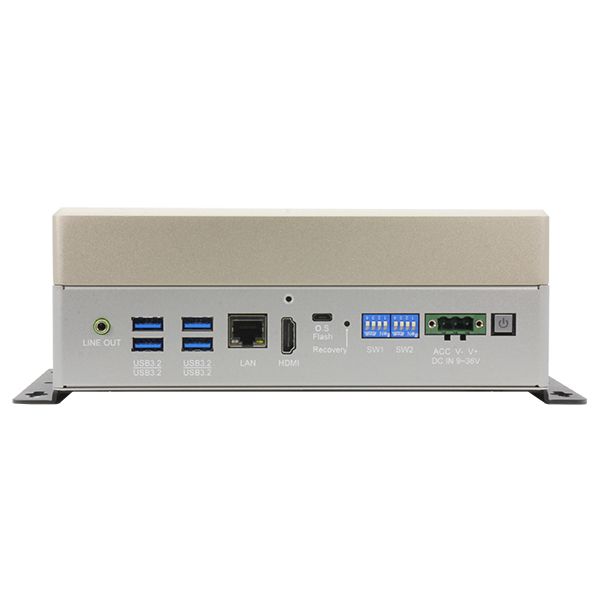

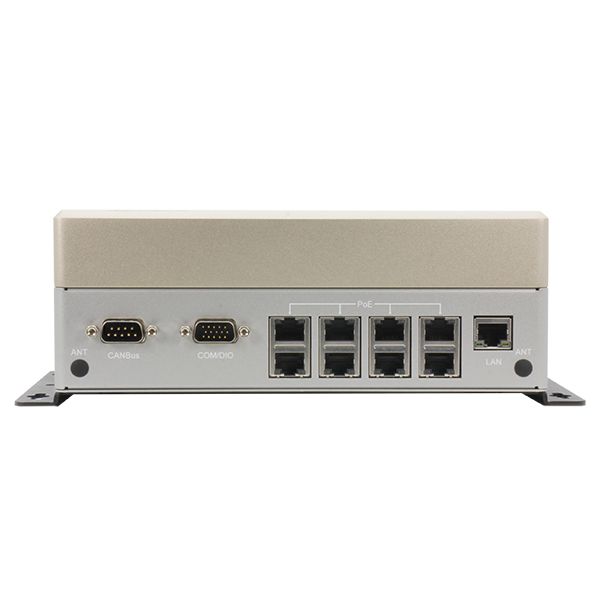

Equipped with 8 x PoE LAN ports (802.3af/at) capable of supplying up to 120W total, the BOXER-8658AI can power and manage multiple IP cameras directly. Dual Gigabit LAN ports, 4 x USB 3.2 Gen 2, and HDMI 2.0 provide high-speed connectivity and video output. Serial I/O includes 1 x CANBus (DB-9), 1 x RS-232/422/485 with 8-bit DIO (DB-15), and Micro USB for OS flashing.
Designed for vehicular deployments, the system supports a wide 9V–36V DC input with ignition delay on/off, dual SIM slots for mobile failover, and GNSS for precise location services. M.2 E-Key and B-Key slots allow for Wi-Fi, Bluetooth, and LTE expansion, while a 2.5" SATA bay and M.2 NVMe slot provide ample storage.
With a wide operating temperature of -15°C to 60°C and compliance with MIL-STD-810G-level shock and vibration resistance, the BOXER-8658AI is a reliable choice for transport fleets, law enforcement vehicles, mining trucks, and other mission-critical mobile applications.
Take a look at the data sheet or request a quote to learn more.
Key Features:
- AI Accelerator: NVIDIA® Jetson Orin™ NX (8-core or 6-core Arm Cortex-A78AE)
- Memory Options: 8GB or 16GB LPDDR5
- Storage: 1 x 2.5” SATA bay, 1 x M.2 2280 NVMe M-Key
- Ethernet: 8 x GbE PoE/PSE (802.3af/at, max. 120W), 2 x GbE LAN
- USB: 4 x USB 3.2 Gen 2 Type-A, 1 x Micro USB (OS Flash)
- Display: 1 x HDMI 2.0 (Type-A)
- 1 x DB-9 for CANBus FD
- 1 x DB-15 for RS-232/422/485 + 8-bit DIO
- Expansion: 1 x M.2 2230 E-Key (Wi-Fi/Bluetooth), 1 x M.2 3052 B-Key (LTE) + 2 x SIM slots, 7 x Antenna holes
- 9V–36V DC input with ACC ignition delay on/off
- GNSS support for navigation/location
- Operating temp: -15°C to 60°C (0.7 m/s airflow)
- Anti-vibration and anti-shock (MIL-STD-810G)
