AITAS-EN303

Experience powerful edge intelligence with the AITAS-EN303, a durable and space-saving industrial edge AI box PC engineered for demanding environments. This fanless system harnesses the NVIDIA Jetson Orin NX 16GB module, delivering up to 100 TOPS for accelerated AI inference and intelligent automation tasks. High-performance deep learning and machine learning are powered by its 1024-core NVIDIA Ampere™ GPU with 32 Tensor Cores, enabling advanced object detection, high-resolution image analysis, and efficient local data processing capabilities.

At its core, the AITAS-EN303 features an 8-core Arm Cortex-A78AE processor paired with 16GB of high-speed LPDDR5 RAM. It also includes a M.2 2280 M-Key slot supporting NVMe SSDs, ensuring smooth and responsive performance for demanding AI applications and large datasets.

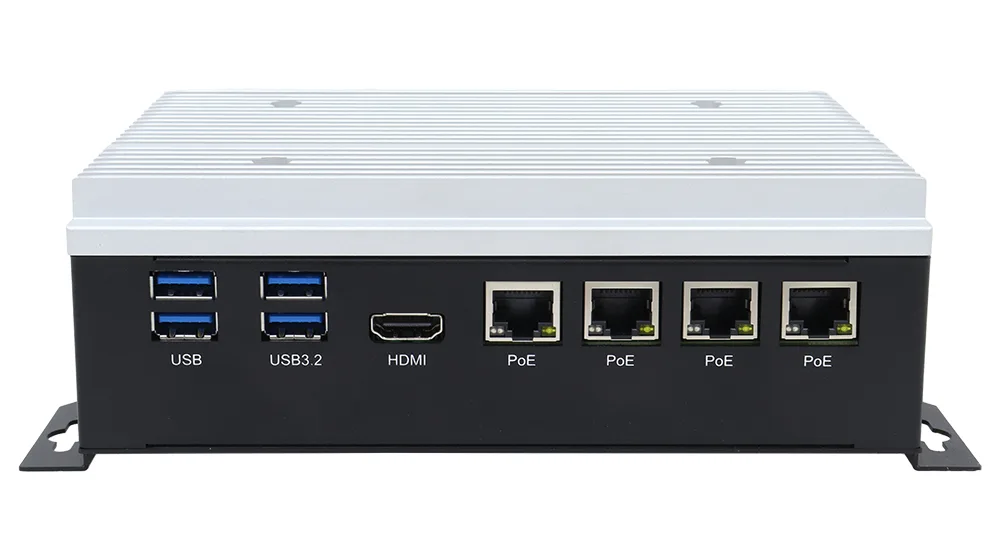

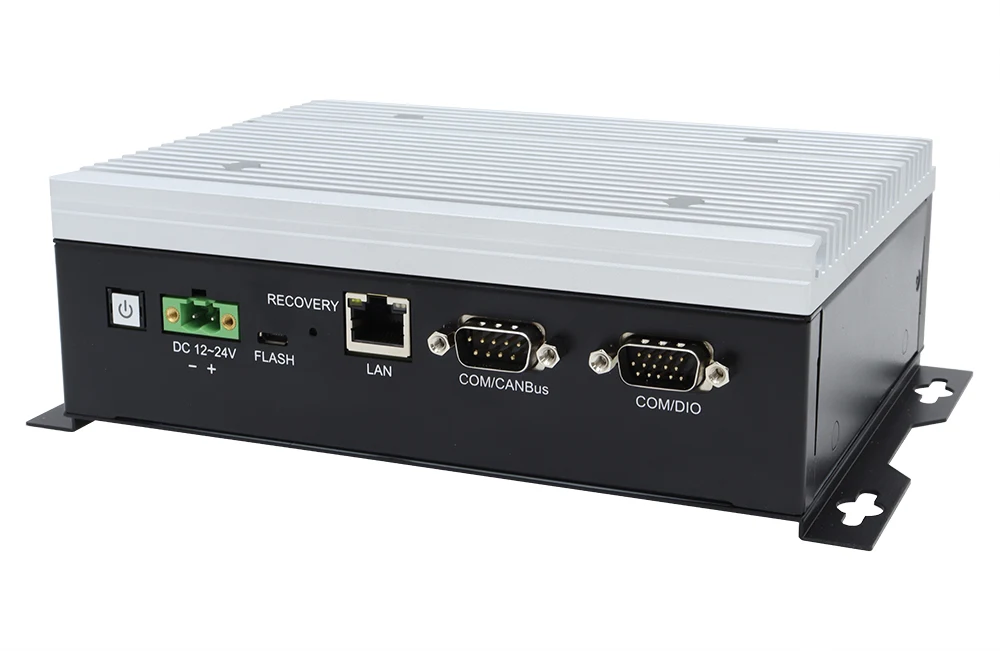

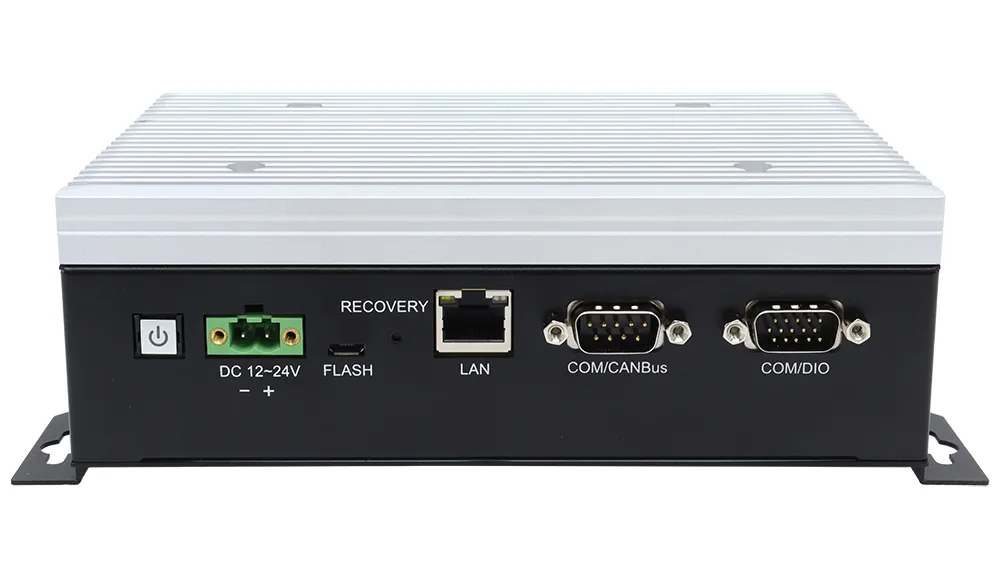

The AITAS-EN303 provides comprehensive connectivity essential for advanced edge AI deployments. High-speed network communication is facilitated by 1 x GbE (RJ-45) LAN port and 4 x GbE (RJ-45) LAN ports with Power over Ethernet (PoE) PSE. For peripherals, it offers 4 x USB 3.2 Gen 2 Type A ports and 1 x Micro USB port (for OS flash). Versatile serial and industrial interfacing is available through 1 x DB-9 port (RS-232/485) or 1 x CANBus FD and 1 x DB-15 port (RS-232/422/485) or 8x Digital I/O. Display output is provided via 1 x HDMI 2.0 port. Expansion options include 1 x M.2 3042/3052 B-Key slot for 4G/5G modules, 1 x M.2 2230 E-Key slot for Wi-Fi/Bluetooth, and a SIM card slot.

Engineered for continuous operation in harsh industrial environments, the AITAS-EN303 boasts a robust, fanless construction that resists dust, shock, and vibration. It supports a wide operating temperature range (-15°C to 60°C) and a flexible power input (12-24V DC). With compact dimensions (180 x 136 x 58 mm) and integrated wall and DIN-rail mounting options, its small footprint simplifies deployment in space-constrained areas.

With the combination of exceptional AI performance and rugged construction the AITAS-EN303 excels at performing a range of industrial AI tasks, including accelerated deep learning inference, powerful machine vision capabilities, efficient local data analytics, and reliable real-time system control. This makes it an ideal solution for a wide range of industrial AI applications, including industrial automation, smart city infrastructure, intelligent transportation systems, advanced robotics, and demanding IoT gateways.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• Processor: NVIDIA Jetson Orin NX 16GB (up to 100 TOPS AI performance)
• GPU: 1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor Cores
• CPU: 8-core Arm Cortex-A78AE
• Memory: 16GB 128-bit LPDDR5
• Storage: 1 x M.2 2280 SSD
• Display: 1 x HDMI
• LAN: 1 x RJ-45 GbE Port, 4 x RJ-45 GbE PoE PSE
• USB: 4 x USB 3.2 Gen2 Type A
• I/O Options: 1 x DB-9 for RS-232 (Rx/Tx/CTS/RTS)/485 or 1 x CANBus FD, 1 x DB-15 for RS-232 (Rx/Tx)/422/485 or 8 x DIO
• Wide Range Operating Temperature: -15°C to 60°C
• Wide Power Input Range: 12~24V DC

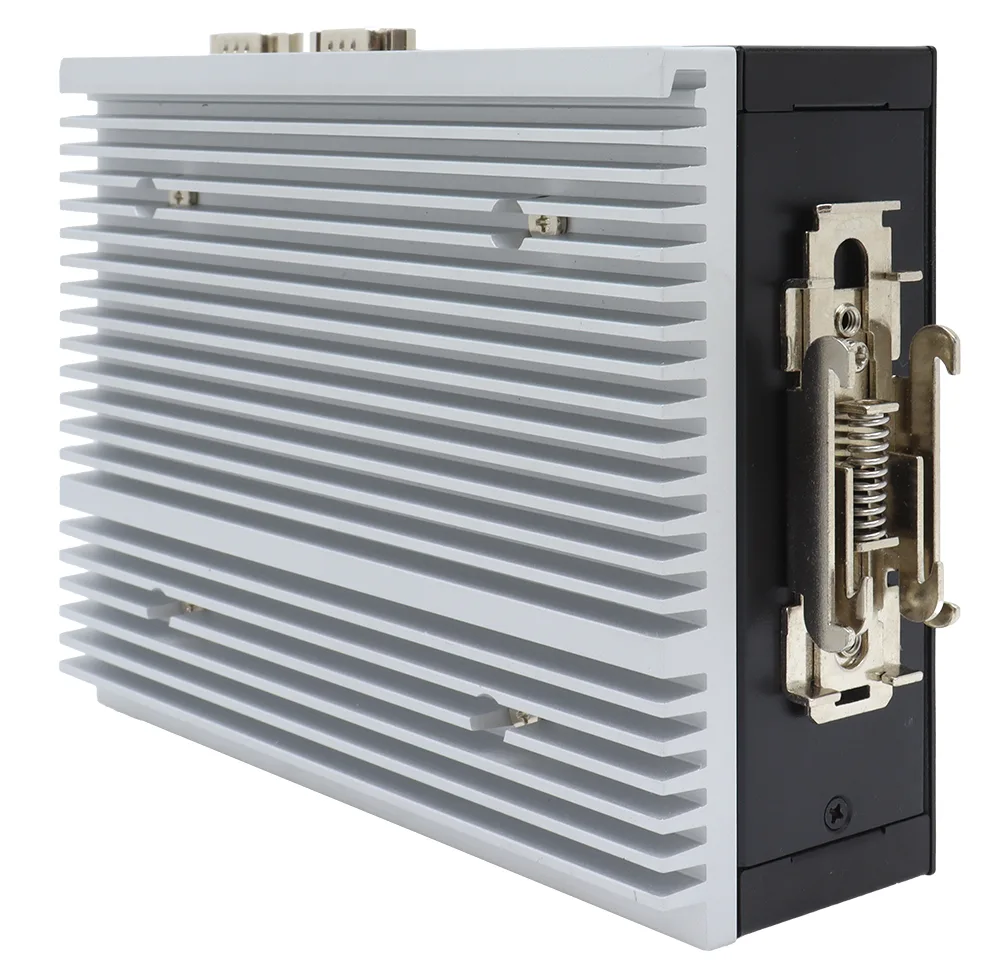

• Mounting: Wall Mount, DIN Rail
• Fanless Design
