BOXER-8652AI
Product Overview
Compact Edge AI PC, Jetson Orin NX, dual LAN, COM ports, DIO, M.2 expansion, & -15°C~60°C Operating Temp
Features Include:
- Powered by NVIDIA® Jetson Orin™ NX (6-core Arm Cortex-A78AE CPU)
- 8GB LPDDR5 memory
- 2 x RJ-45 GbE LAN ports
- 2 x USB 3.2 Gen 2 Type-A and 2 x USB 2.0 Type-A
- View More
The BOXER-8652AI is a compact, fanless embedded system designed to deliver efficient edge AI performance using the NVIDIA® Jetson Orin™ NX module. With up to 8GB of LPDDR5 memory and 1 × M.2 2280 M-Key slot for high-speed NVMe SSD storage, it provides the processing power and responsiveness needed for real-time inference tasks such as computer vision, object detection, and sensor data analysis.
Ideal for smart retail and embedded AI deployments, the system features 2 x Gigabit LAN ports for IP camera or sensor connectivity, alongside 2 x USB 3.2 Gen 2 and 2 x USB 2.0 ports for peripherals like barcode scanners and RFID readers. A Micro USB port is available for OS flashing. The BOXER-8652AI also includes 1 x DB-9 for RS-232/422/485, 1 x DB-9 for CANBus, and 1 x DB-15 for 13-bit DIO—providing compatibility with legacy hardware and real-time I/O integration.
Wireless and cellular communication is supported via M.2 E-Key (Wi-Fi/Bluetooth) and M.2 B-Key (4G/5G) slots, with six antenna holes for optimal signal routing. The system operates reliably in temperatures ranging from -15°C to 60°C with 0.5 m/s airflow, power input ranges from 12V to 24V DC and withstands 50G shock and 3.5Grms vibration, making it suitable for space-constrained, rugged environments.
The BOXER-8652AI offers an ideal platform for smart retail, automation, and edge AI analytics where compact design and connectivity are critical.
Take a look at the data sheet or request a quote to learn more.
Key Features:
- Powered by NVIDIA® Jetson Orin™ NX (6-core Arm Cortex-A78AE CPU)
- 8GB LPDDR5 memory

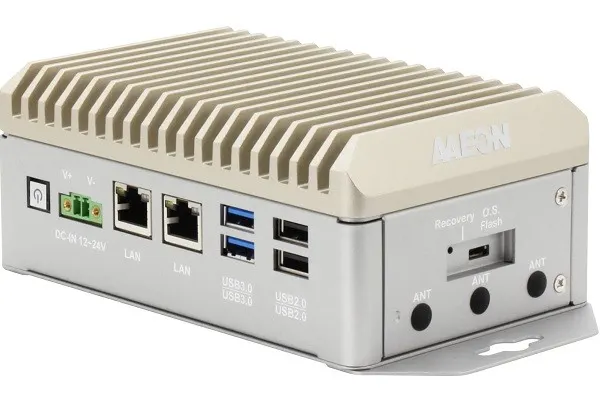

- 2 x RJ-45 GbE LAN ports
- 2 x USB 3.2 Gen 2 Type-A and 2 x USB 2.0 Type-A
- 1 x HDMI 2.0 (Type-A)

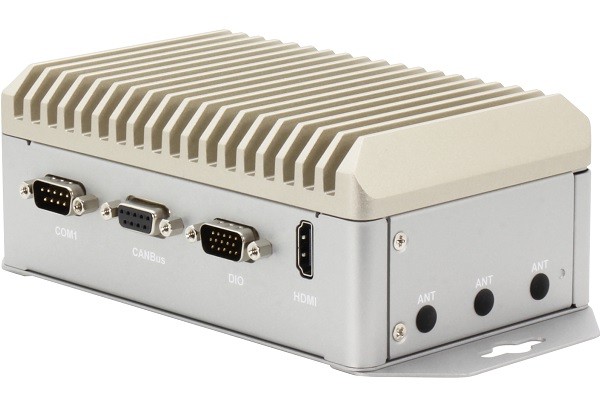

- 1 x DB-9 for RS-232/422/485 serial communication
- 1 x DB-9 for CANBus
- 1 x DB-15 for 13-bit DIO
- Expansion: 1 x M.2 2230 E-Key (Wi-Fi/Bluetooth), 1 x M.2 3042/3052 B-Key (4G/5G with SIM support), 1 x M.2 2280 M-Key (NVMe SSD)
- 6 x Antenna holes for wireless and cellular modules
- 12–24V DC wide range power input
- Operating temperature: -15°C ~ 60°C (with 0.5 m/s airflow)
- Anti-vibration: 3.5Grms (5~500Hz); Anti-shock: 50G peak acceleration
- Compact size: 152mm × 96mm × 61.5mm; wall-mountable design
