SE-4K18GB-4RS

Product Overview

4-Port 4K 18Gbps HDMI Switch with IR & RS232 Control

Features Include:

  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
  • Eliminates redundant video displays.
  • Control the switch via the front panel interface, infrared remote (IR) control or RS232.
  • HDMI features supported: HDMI 2.0, Up to 48-Bit Deep Color,RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, LPCM, Dolby, DTS, 3D, HDR support
  • View More

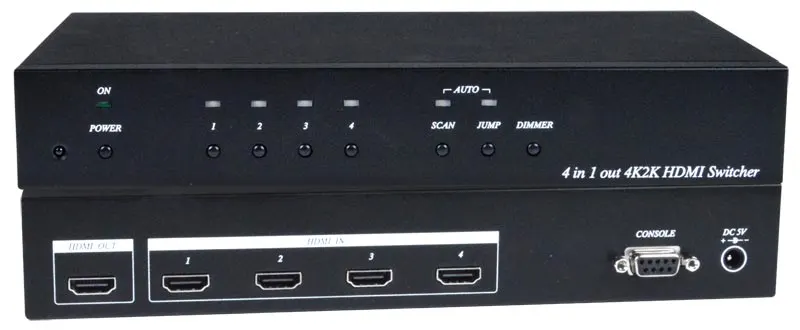

Video Switches & Converters SE-4K18GB-4RS Main Product Image
Video Switches & Converters SE-4K18GB-4RS Product Image 2

The VIDMUX® 4K 18Gbps HDMI Switch routes digital Ultra-HD 4Kx2K 60Hz 4:4:4 video and audio from up to four HDMI sources to one HDMI display.

Key Features:

  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
  • Eliminates redundant video displays.
  • Control the switch via the front panel interface, infrared remote (IR) control or RS232.
  • HDMI features supported: HDMI 2.0, Up to 48-Bit Deep Color,RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, LPCM, Dolby, DTS, 3D, HDR support
  • Bandwidth up to 600 Mhz (18Gbps).
  • Support for CEC (consumer electronic control) compatible devices.
  • HDCP 2.2 and 1.4 compliant.
  • Features Auto Scan and Auto Jump switching functions.
  • Auto scan – when the selected video input is inactive for over 0.5 seconds, the switch will automatically display the video from the next active input.
  • When using the previous/next buttons/commands with the IR remote control or RS232, the switch will skip over the inactive inputs.
  • Auto jump – automatically switches to the video signal of a newly connected video input.

Data Sheets (PDF)

Product Downloads PDF Icon

SE-4K18GB-4RS Data Sheet

Part Numbers

Details

SE-4K18GB-4RS

4-Port 4K 18Gbps HDMI Switch with IR & RS232 Control
