SE-HD2-2LC
Product Overview
4K 18Gbps HDMI Switch with Built-In Splitter, 2-Port
Features Include:
- Switch 2 displays between 2 HDMI sources.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
- HDCP 2.2 and 1.4 compliant.
- Control the switch via the front panel button or infrared remote (IR) control.
- View More

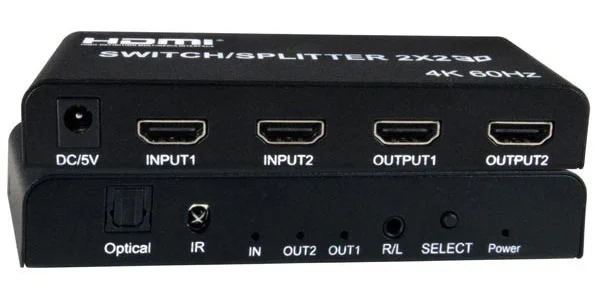

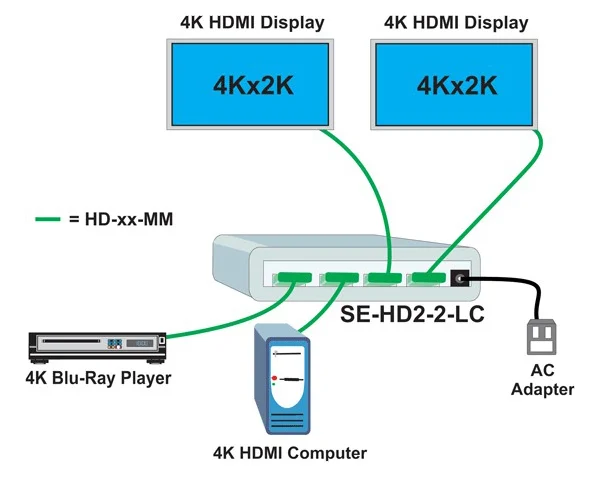

The 4K 18Gbps HDMI Switch with Built-In Splitter enables two displays to be switched between two HDMI sources. The Ultra-HD 4Kx2K 60Hz image from the selected source is simultaneously displayed on both monitors with no degradation.
HDMI features supported:
- HDMI 2.0a
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
- 36-bit Deep Color
- LPCM, Dolby TrueHD, Dolby-AC3, DTS, and DTS-HD.
- Bandwidth up to 18Gbps
- HDR
- 3D
Download the data sheet for more technical details, and/or contact us via the “Request a Quote” tab.
Key Features:
- Switch 2 displays between 2 HDMI sources.
- Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
- HDCP 2.2 and 1.4 compliant.
- Control the switch via the front panel button or infrared remote (IR) control.
- Plug and play functionality – no new software or drivers required.
- Eliminates the need to disconnect and then reconnect multiple HDMI sources.
- Ideal for industrial environments where high quality video on multiple displays is needed.
