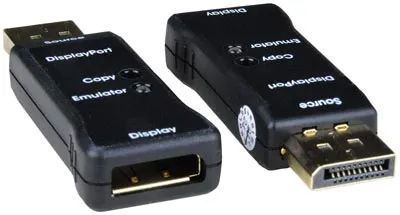

DP8K-EDID-EMLTR

The DP8K-EDID-EMLTR stores and reproduces EDID information for a DisplayPort display. The DisplayPort 1.4 EDID Emulator copies the EDID of the desired DisplayPort display and connects directly to the DisplayPort source to ensure that the EDID is not lost in connections between devices such as splitters and extenders.

Take a look at the data sheet for more technical information about the DP8K-EDID-EMLTR and/or contact us via the “Request A Quote” tab.

• Emulates a DisplayPort display (sink device) by providing Hot Plug Detect and EDID to the DisplayPort source device.

• Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz, 4:4:4, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4, 3440x1440 (UWQHD), 2560x1600 (WQXGA), 2560x1440 (WQHD), and HDTV resolutions to 1080p.

• DisplayPort features supported:

• DisplayPort 1.4

• Multi-Stream Transport (MST)

• Up to 36-bit Deep Color

• LPCM

• YCbCr 4:4:4, YCbCr 4:2:2, and RGB

• Bandwidth up to 32.4 Gbps

• HDCP 2.2 compliant.

• Supports Learning and Emulation modes.

• Learning mode: store a display's EDID for later use.

• Emulation mode: provides EDID to the DisplayPort source device from the emulator's internal memory.

• Supports headless operation – no monitor attached to source.

• Pre-programmed with many standard resolutions with native set to 1080p.

• Use learning mode to program other resolutions.

• LED indicators provide signal status information.

• Compact design for easy installation and operation.

• No power supply – powered by video source.

• Ideal for resolving signal handshaking problems between a source and a display.

Key Features:

• Headless operation
• Video pass-through
• Supports resolutions up to Ultra-HD 8K 4320p 30Hz
• DisplayPort 1.4
• Compact Design
• Powered by video source
